video outgoing-inspection
|
Provided | warranty |
1 Year
|
|
key selling points
|
High Productivity
|
core components
|
Pump, Gear, motor, Gearbox, Engine
|
|
machinery test report
|
Provided |
cnc or not
|
Normal |
|
max. drilling dia. (mm)
|
Copper iron M2~M8 / Copper zinc below M10
|
type |

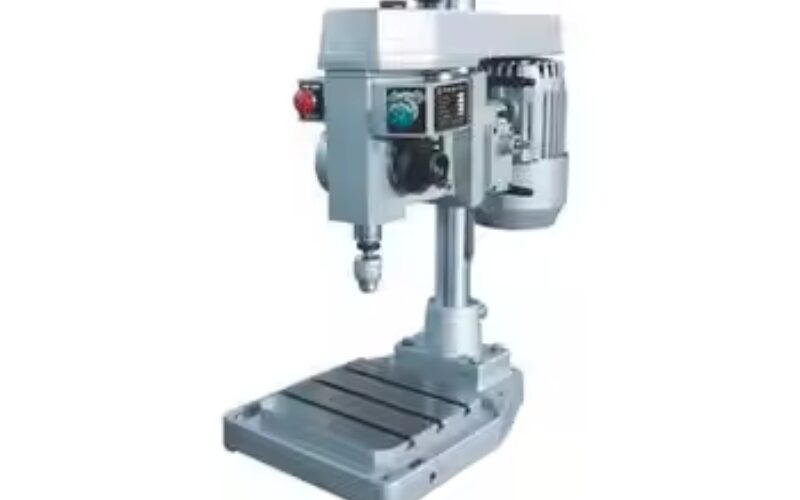

Column Drilling Machine
|
| voltage | 380V |
range of spindle speed(r.p.m)
|
420 – 1340
|
|
power (kw)
|
0.75 |
weight (kg)
|
145 |
|
model number
|
CDK-I
|
dimension(l*w*h)
|
555*300*820mm
|
| Swing |
330
|
The head and upper and lower distance
|
260mm
|
|
Main spindle to working table
|
350mm
|
Bed dimension
|
225×230
|
|
Base area
|
415×300
|
Multiaxial Max
|
M3x10 spindle/M4 x 5 spindle
|
