Description

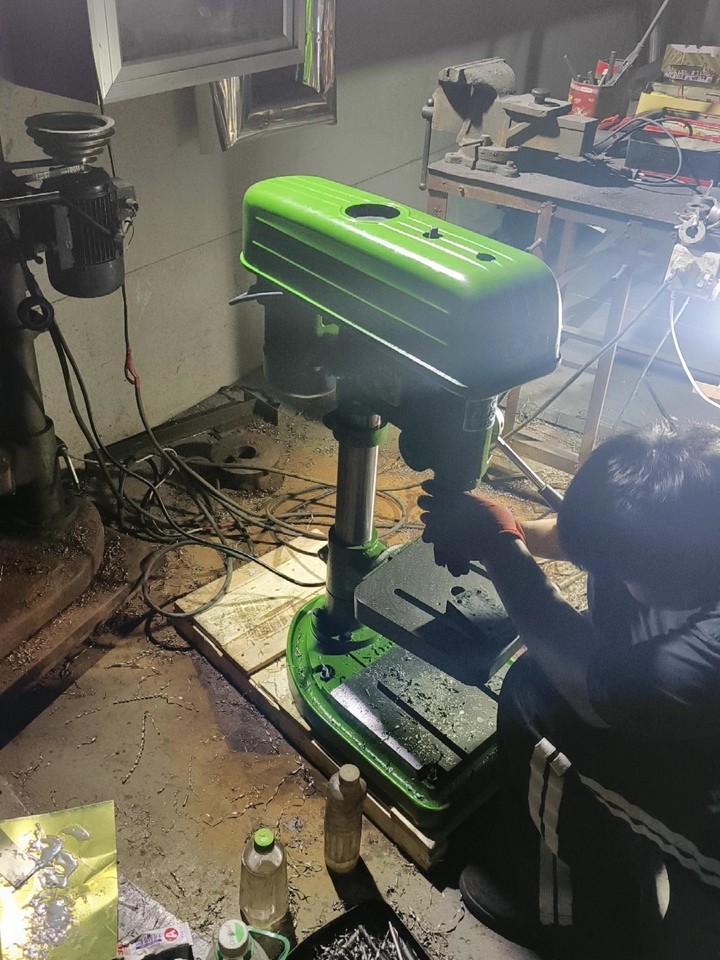

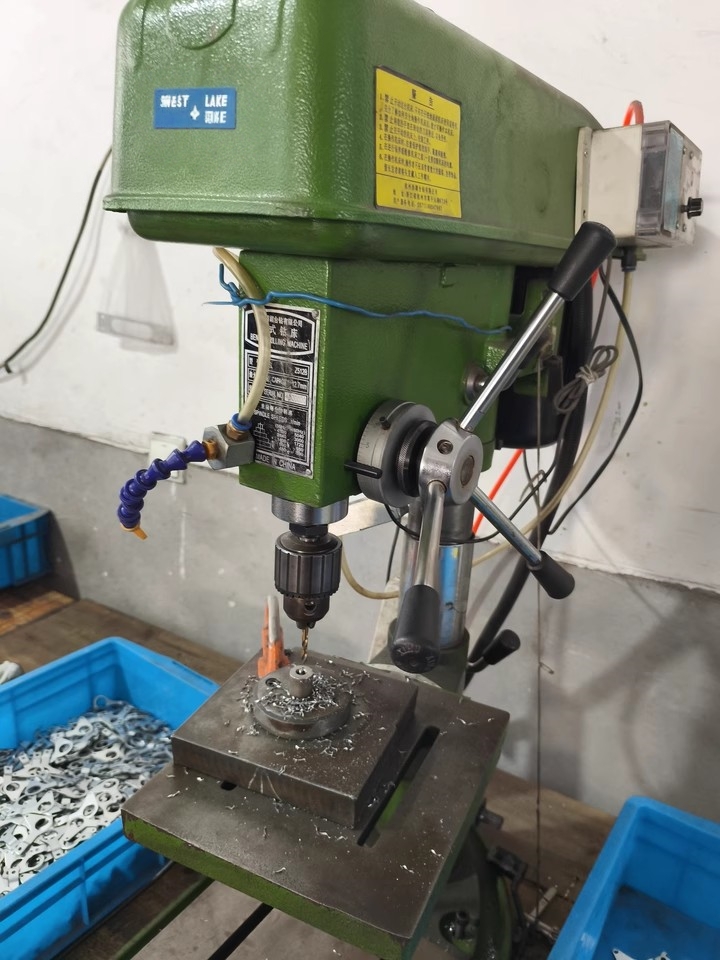

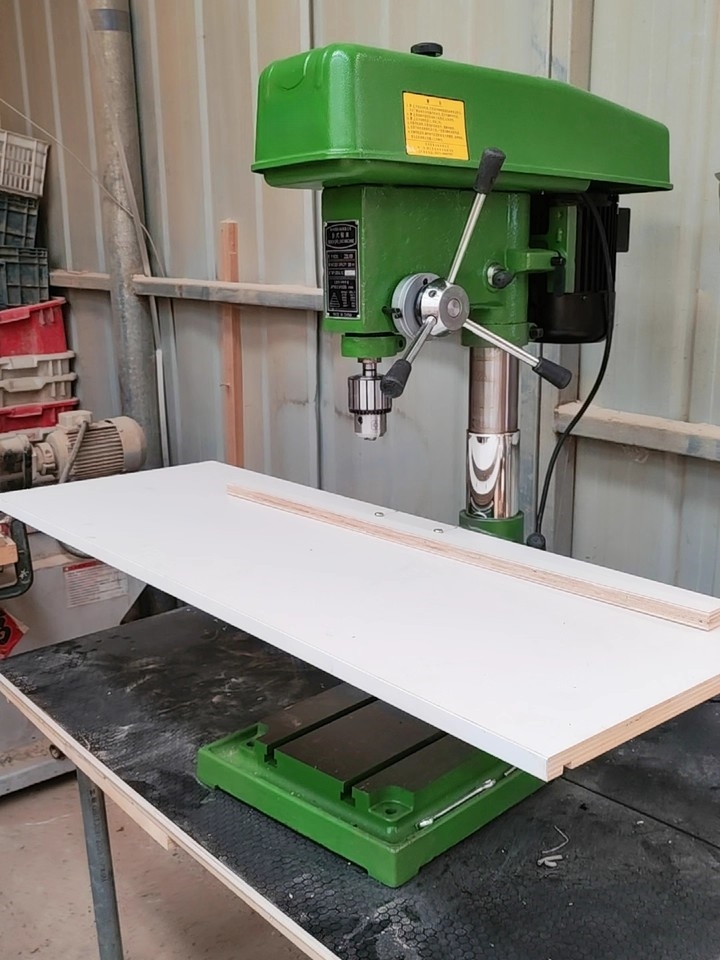

16mm Small Bench Drilling Machine SCJ516 Series
|
Model
|
SCJ516
|
SCJL516
|
SCJH516
|
SCJA516
|
|
Max.Drilling Dia
|
16mm
|
16mm
|
16mm
|
16mm
|
|
Column diameter
|
70mm
|
70mm
|
70mm
|
85mm
|
|
Spindle stroke
|
100mm
|
100mm
|
100mm
|
125mm
|
|
Distance from spindle center to column busbar
|
193mm
|
193mm
|
193mm
|
240mm
|
|
Distance from spindle center to table
|
318mm
|
362mm
|
340mm
|
297mm
|
|
Max distance from spindle end to base
|
548mm
|
592mm
|
580mm
|
560mm
|
|

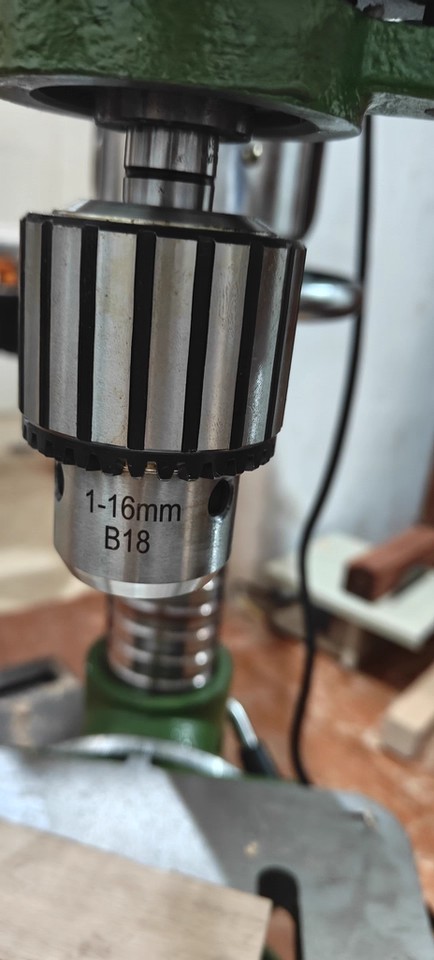

Tapper
|
B18
|
MT2
|
MT2
|
MT2
|
|
Spindle speed
|
480-4100 rpm
|
480-4100 rpm
|
480-4100 rpm
|
365-3150 rpm
|
|
Speed grade
|
5
|
5
|
5
|
5
|
|
Worktable
|
265*265mm
|
265*265mm
|
200*230mm
|
280*300mm
|
|
Working base
|
250*300mm
|
250*300mm
|
280*260mm
|
315*335mm
|
|
Volt
|
380/220v
|
380/220v
|
380/220v
|
380/220v
|
|
Motor
|
550/750w
|
550/750w
|
550/750w
|
550/750w
|
|
Weight（G.W./N.W.）
|
109/86kg
|
115/92kg
|
115/92kg
|
162/119kg
|
|
Volume
|
790*440*960mm
|
790*440*960mm
|
800*460*950mm
|
870*540*1030mm
|
Index:
| Model | Power | Max. Drill Dia | Lifting Head | Lifting Table | Drill Depth Tool | |
| Economic
|
SCJ512 | Single phase/tri-phase550w | 16mm | Manual,by hand | / | scale |
| SCJL512 | Single phase/tri-phase550w | 16mm | Manual,by handwheel | / | scale | |
| SCJH512 | Single phase/tri-phase550w | 16mm | Manual,by handle | Manual,by handle | dial | |
| SCJA512 | Single phase550w/tri-phase 550/750w | 16mm | Manual,by handle | Manual,by handle | dial |
Machine Features:
2. High processing accuracy and good rigidity;
3. The body is made of high-quality cast iron, which is durable and long-lasting;
4. Widely used in industries such as woodworking, instrumentation, and lock making.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
