Description
20mm Pillar Drilling Machine SCJ20 Series for Shop
|
Model
|

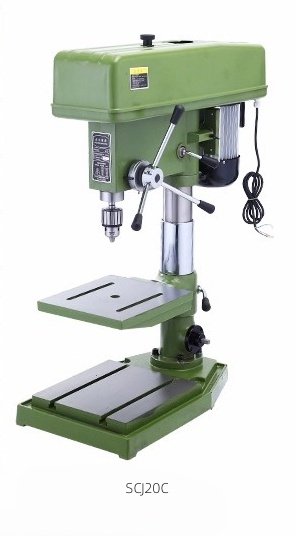

SCJ20C
|

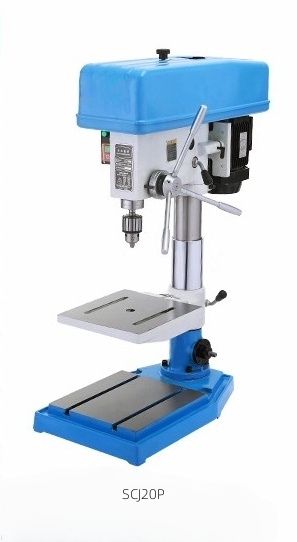

SCJ20P
|

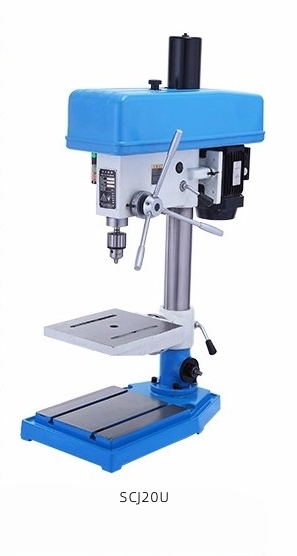

SCJ20U
|

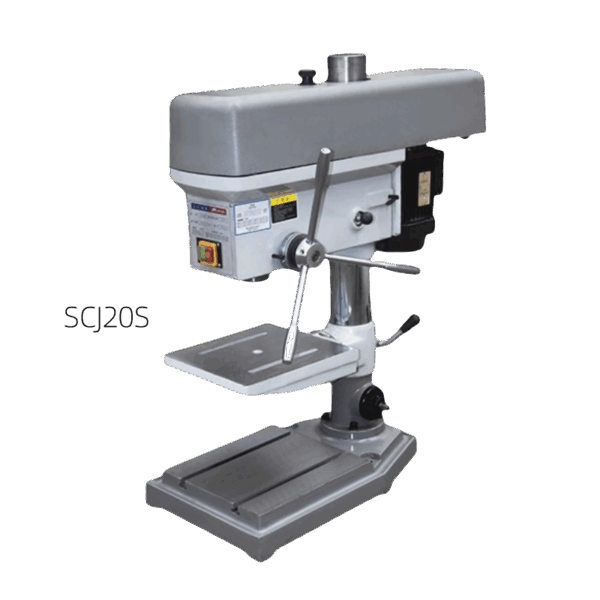

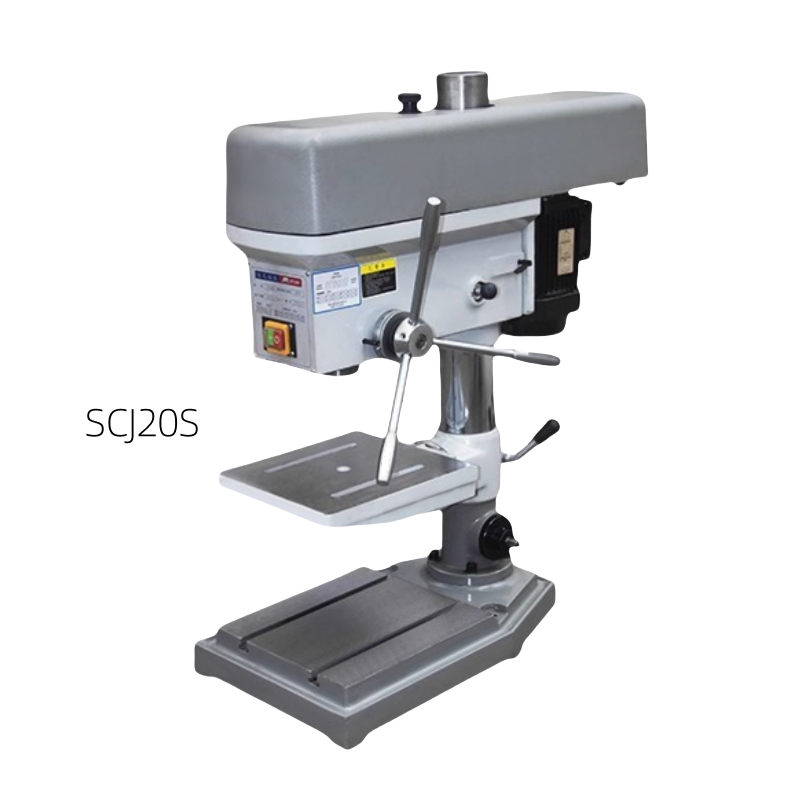

SCJ20S
|
|
Max.Drilling Dia
|
20mm
|
20mm
|
20mm
|
20mm(45# steel)
|
|
Column diameter
|
85mm
|
85mm
|
70mm
|
85mm
|
|
Spindle stroke
|
125mm
|
125mm
|
125mm
|
125mm
|
|
Distance from spindle center to column busbar
|
240mm
|
240mm
|
240mm
|
240mm
|
|
Distance from spindle center to table
|
367mm
|
367mm
|
299mm
|
367mm
|
|
Max distance from spindle end to base
|
630mm
|
630mm
|
560mm
|
630mm
|
|
Tapper
|
MT2
|
MT2
|
MT2
|
MT2
|
|
Spindle speed
|
365-3150 rpm
|
365-3150 rpm
|
365-3150 rpm
|
365-3150 rpm
|
|
Speed grade
|
5
|
5
|
5
|
5
|
|
Worktable
|
280*300mm
|
280*300mm
|
280*300mm
|
280*300mm
|
|
Working base
|
590*375mm
|
590*375mm
|
315*335mm
|
590*375mm
|
|
Volt
|
220/380v
|
220/380v
|
220/380v
|
220/380v
|
|
Motor
|
750/1100w
|
1100w
|
1100w
|
750/1100w
|
|
Weight（G.W./N.W.）
|
165/140kg
|
165/140kg
|
165/140kg
|
165/135kg
|
|
Volume
|
820*480*1020mm
|
830*470*1040mm
|
870*510*1090mm
|
9380*480*1040mm
|
Index:
| Model | Power | Max. Drill Dia | Lifting Head | Lifting Table | Drill Depth Tool | |
| Economic
|
SCJ20C | Single phase 750w/tri-phase1100w | 20mm | Manual,by hand | Manual,by handle | dial |
| SCJ20P | Single phase/tri-phase1100w | 20mm | Manual,by hand | Manual,by handle | dial | |
| SCJ20U | Single phase/tri-phase1100w | 20mm | Manual,by handle | Manual,by hand | dial | |
| SCJ20S | Single phase750w/tri-phase 1100w | 20mm | Manual,by hand | Manual,by handle | dial |
Machine Features:
2 aluminum alloy hard belt pulleys with good balance.
3. Heavy and thickened cast iron parts with good stability performance.
The rotation of the belt greatly reduces noise.
5 precision grinding worktable for higher machining accuracy.
6 types of speed regulation, suitable for various processing.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
