Description

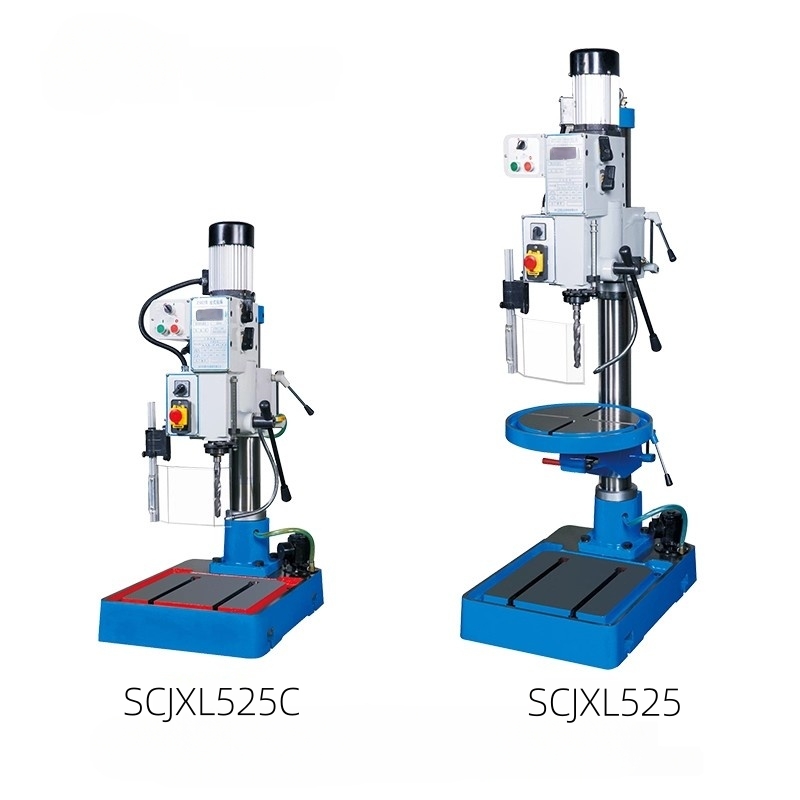

25mm New Small Bench Drilling Machine SCJXL525 Series
|
Model
|
SCJXL525C
|
SCJXL525
|
|
Max.Drilling Dia
|
25mm
|
16mm
|
|
Column diameter
|
100mm
|
70mm
|
|
Spindle stroke
|
150mm
|
100mm
|
|
Distance from spindle center to column busbar
|
225mm
|
193mm
|
|
Distance from spindle center to table
|
/
|
630mm
|
|
Max distance from spindle end to base
|
550mm
|
1670mm
|
|
Tapper
|
MT3
|
MT3
|
|
Spindle speed
|
100-2900 rpm
|
100-2900 rpm
|
|
Speed grade
|
8
|
8
|
|
Worktable
|
/
|
Dia 440mm
|
|
Worktable stroke
|
560
|
560
|
|
Working base
|
690*500mm
|
690*500mm
|
|
Volt
|
380/220v
|
380/220v
|
|
Motor for cooling
|
40w
|
40w
|
|
Motor
|
1100/750w
|
1100/750w
|
|
Weight（G.W./N.W.）
|
235/225kg
|
300/290kg
|
|
Volume
|
780*520*1170mm
|
700*560*1820mm
|
Machine Features:
2. Unique tool return device, easy to change tools;
3. High spindle speed and wide speed range;
4. Equipped with cooling devices to increase continuous working hours;
5. Equipped with LED work lights for easier processing;
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
