Description

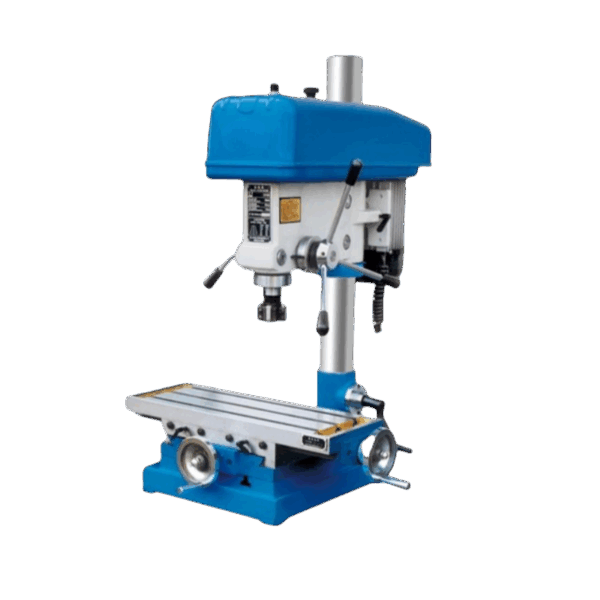

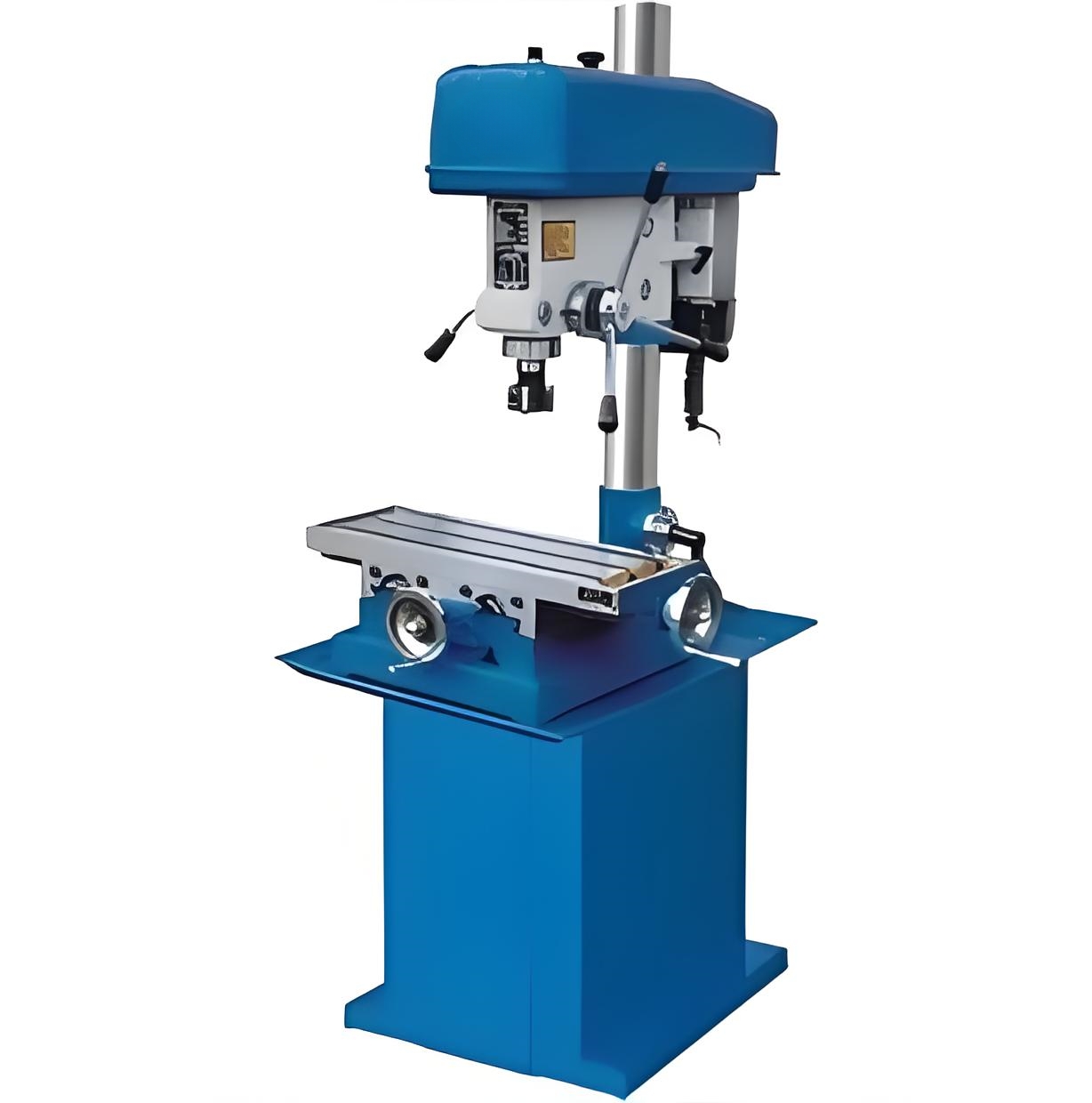

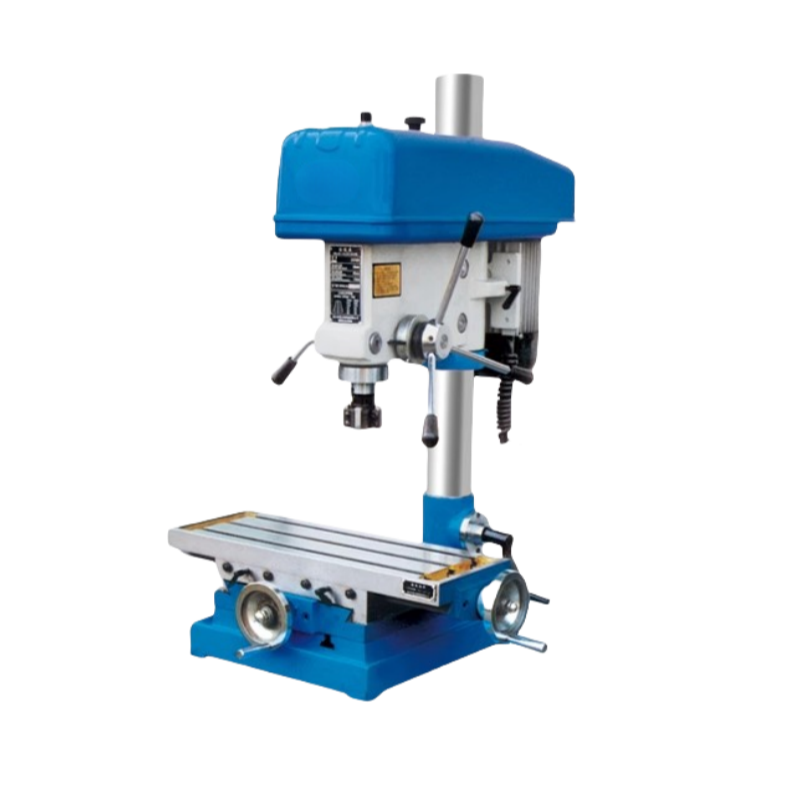

Small Manual Drilling And Milling Machine SCJBDM Series
| Model | SCJBDM25(frame is option) |
| Max.Drilling Dia | 25mm |
| Max vertical milling diameter | 13mm |
| Max end milling width | 63mm |
| Maximum spindle stroke | 110mm |
| Column diameter | 85mm |
| Distance from spindle center to column busbar | 240mm |
| Maximum distance from spindle end to worktable | 510mm |
| Spindle taper | MT3 |
| Spindle Speed | 290-2150r/min |
| Speed grade | 5 |

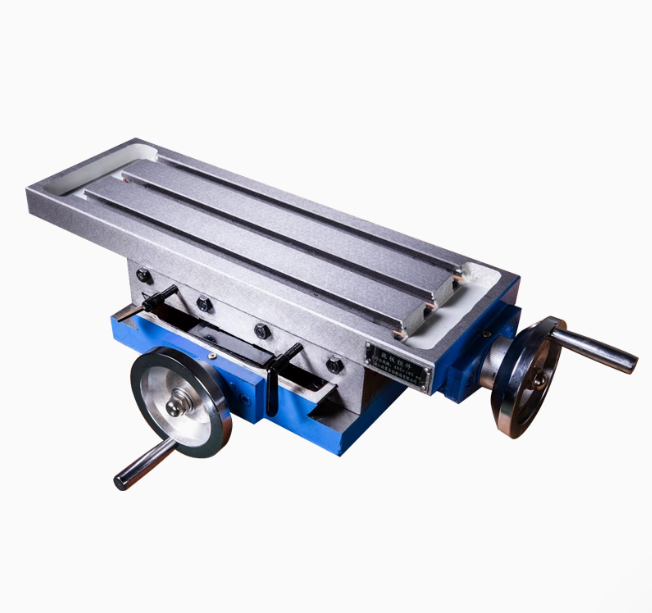

| Worktable size | 550*195mm |
| Workbench stroke | 240*140mm |
| The motor | 750w |
| Voltage | 380V/220V |
| Frequency | 50HZ |
| Weight | 190kg(G.W.)/160kg(N.W.) |
| Overall | 870*670*1020mm |
Machine Features:
2. Bold cast iron column
3. Increase the workbench size
4. Metal drilling and milling are more stable
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
