Lathe Machine

Description

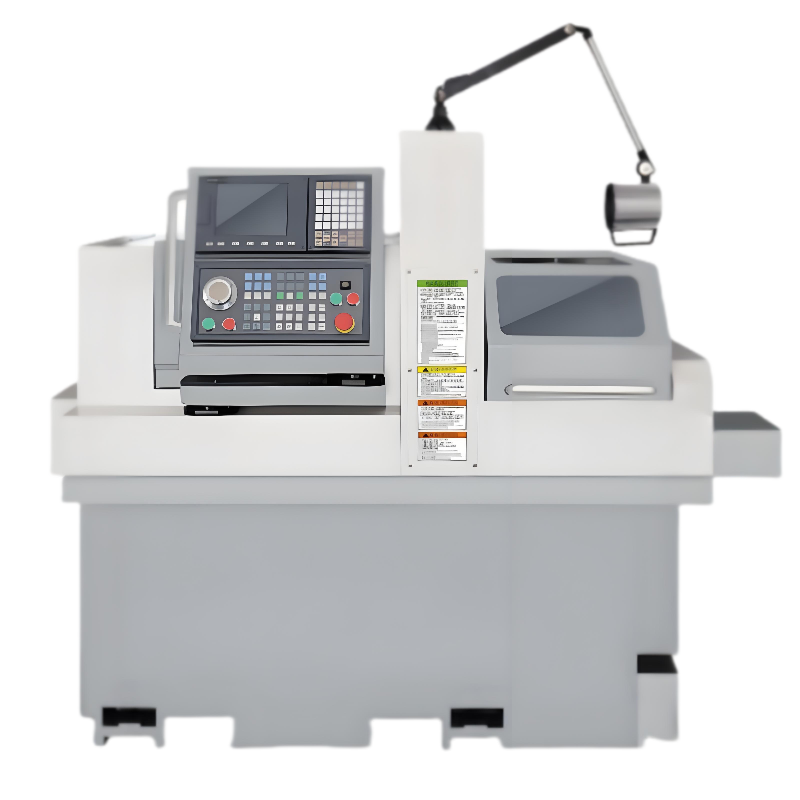

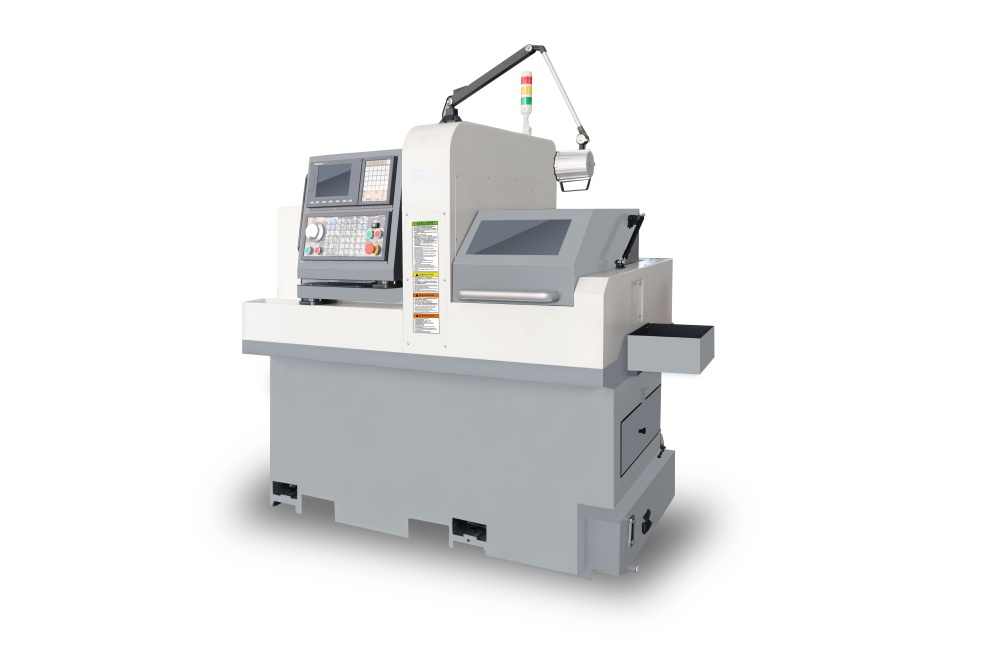

3-axis Copper Electronic Component Pin Single Machanical Spindle Swiss Lathe Machine SCJ2SL203M

Model			SCJ2SL203M
Parameters			3axis,single spindle
NC system			SYNTEC 22TB
Lathe rated power		kw	8
Machining Range
Maximum machining diameter		mm	φ20
With guide bush		mm	230
Non guide bush		mm	2D
Max tool installed qty			14

Main spindle power		kw	3
sub spindle power		kw	–
Main/sub spindle rev speed		rpm	6000
Main spindle max through hole dia		mm	φ23
Sub spindle max clamping dia		mm	–
Sub spindle max through hole dia		mm	–
Machine Tool Information
Rapid feed speed		m/min	18(X) 24(Z/Y)
Feed motor power		kw	0.85
The power capacity		kva	7.5
Air pressure device		mpa	0.6
Weight		T	1.6
Dimensions		mm	1950*1070*1650



Product Features:

1. Each axis is equipped with imported high-precision linear guides, ball screws, and precision bearings.
2. Adopting a synchronous guide sleeve structure to achieve high-speed and high-precision machining.
3. The key components include gas sealed structures, which prevent oil and slag, improve service life and stability.
4. Selecting high torque motors, high rigidity and strength axial sliding tables, and tool mounting seats to meet large cutting volumes and high processing efficiency.
5. The Z-axis with an ultra long stroke can reach a stroke of 230mm, which can significantly reduce the number of feeding times and improve processing efficiency.
6. High scalability, tool quantity configuration based on process matching, high cost-effectiveness.

Standard Configuration:

1. SYNTEC numerical control system
2. Main pneumatic chucking device
3. Movable guide bush
4. Synchronal rotary guide bush device
5. Live tool

Optional Configuration:

1.MITSUBISHI numerical control system
2. FANUC numerical control system
3. High pressure pump
4. Oil mist collector
5.Chip conveyor

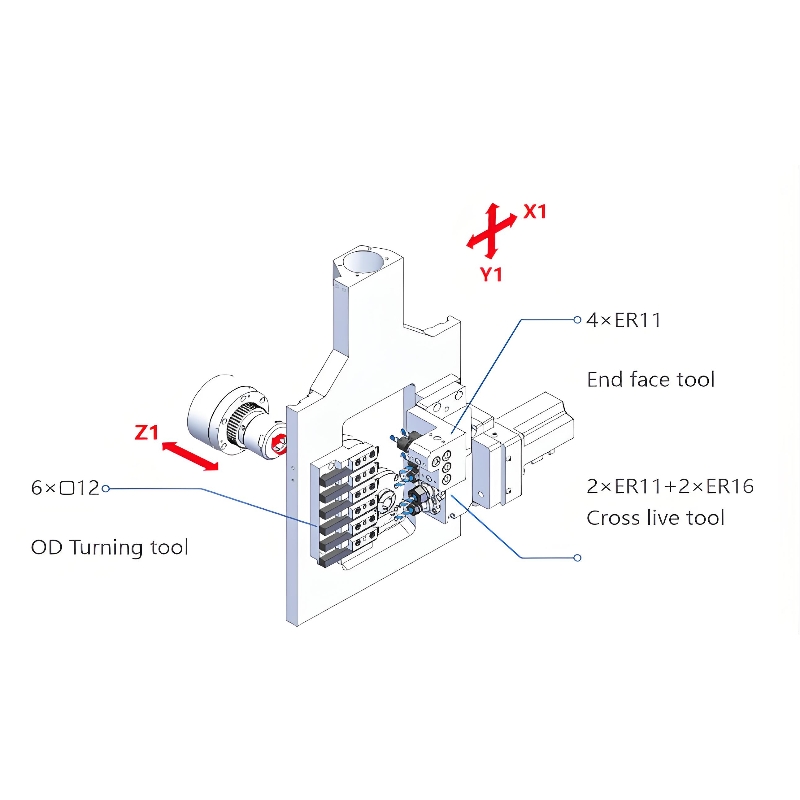

Structural:
