Description

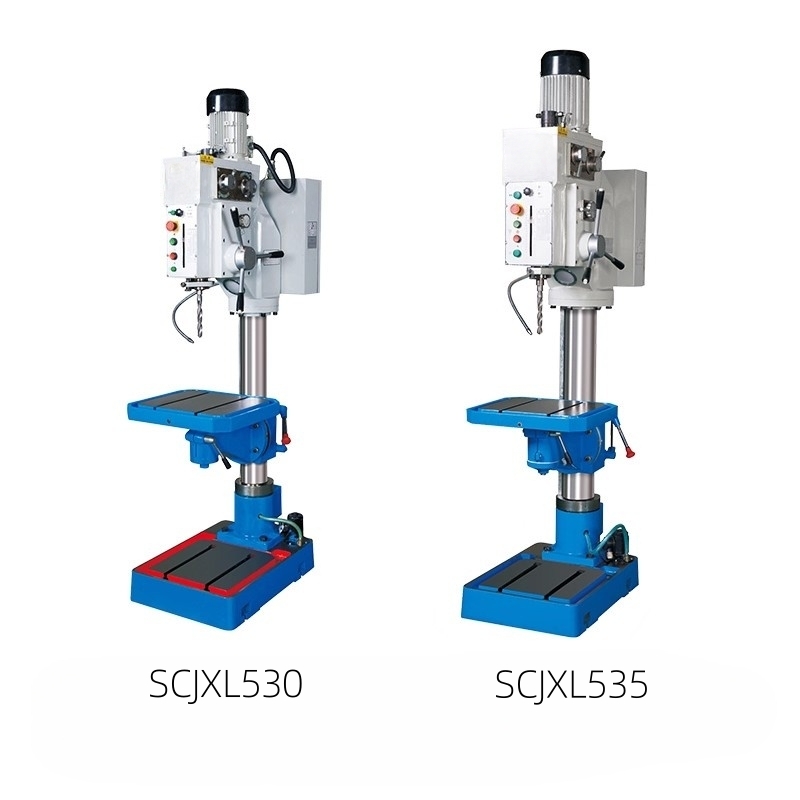

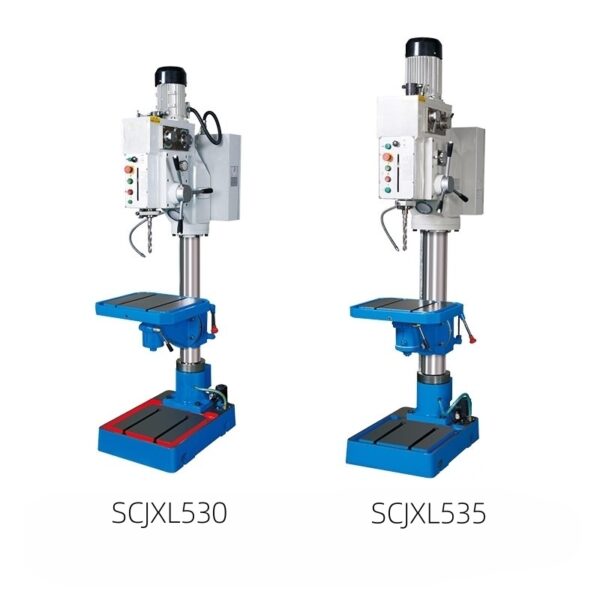

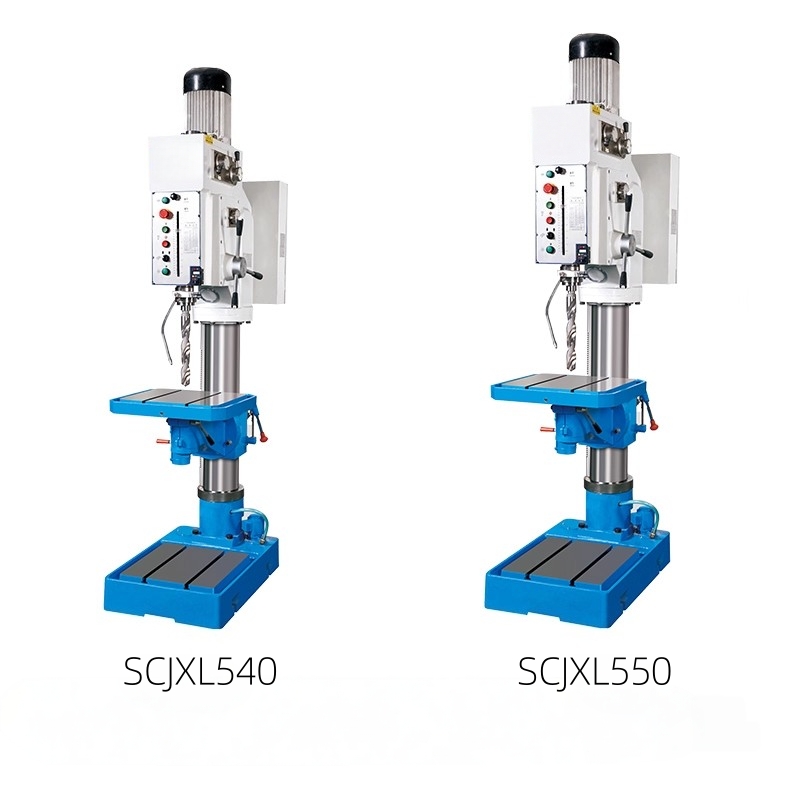

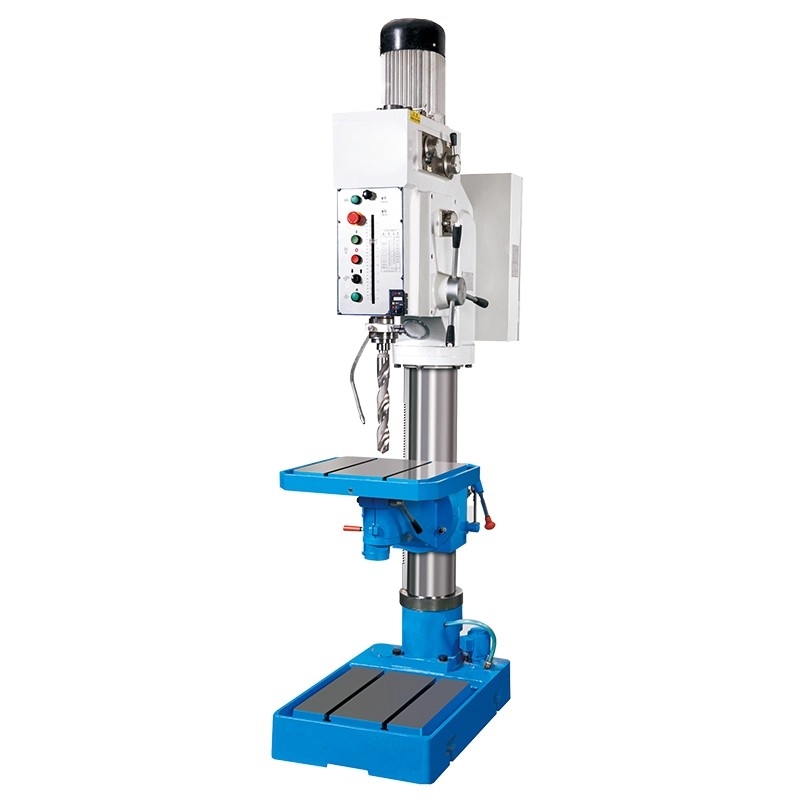

30mm-50mm New Auto Feed Bench Drilling and Tapping Machine SCJXL Series
|
Model
|
SCJXL530
|
SCJXL535
|
SCJXL540
|
SCJXL550
|
|
Max.Drilling Dia
|
30mm
|
35mm
|
40mm
|
50mm
|
|
Max.Tapping
|
M20
|
M24
|
M27
|
M30
|
|
Column diameter
|
120mm
|
140mm
|
160mm
|
180mm
|
|
Spindle stroke
|
135mm
|
160mm
|
180mm
|
240mm
|
|
Distance from spindle center to column busbar
|
320mm
|
330mm
|
360mm
|
360mm
|
|
Distance from spindle center to table
|
550mm
|
590mm
|
590mm
|
570mm
|
|
Max distance from spindle end to base
|
1100mm
|
1180mm
|
1180mm
|
1160mm
|
|
Tapper
|
MT3
|
MT4
|
MT4
|
MT4/MT5
|
|
Spindle speed
|
65-2600 rpm
|
75-2500 rpm
|
42-2050 rpm
|
42-2050 rpm
|
|
Speed grade
|
12
|
12
|
12
|
12
|
|
Feeding Volume
|
0.1/0.2/0.3 mm/r
|
0.1/0.2/0.3 mm/r
|
0.07/0.15/0.26/0.40 mm/r
|
0.07/0.15/0.26/0.40 mm/r
|
|
Worktable
|
500*440mm
|
500*440mm
|
550*470mm
|
550*470mm
|
|
Worktable travel
|
490mm
|
550mm
|
550mm
|
550mm
|
|
Working base
|
400*390mm
|
400*390mm
|
450*440mm
|
450*440mm
|
|
Volt
|
380v
|
380v
|
380v
|
380v
|
|
Motor for cooling
|
40
|
40
|
40
|
40
|
|
Motor
|
850/1100w
|
1500/2200w
|
2200/2800w
|
2200/2800w
|
|
Weight（G.W./N.W.）
|
495/450kg
|
595/545kg
|
815/755kg
|
1045/985kg
|
|
Volume
|
1080*620*2150mm
|
1080*620*2200mm
|
1080*620*2450mm
|
1080*620*2450mm
|
Machine Features:
2. The workbench can be electrically raised and lowered;
3. The workbench can rotate 360 ° and tilt +/- 45 °;
4. Equipped with cooling devices to increase continuous working hours;
5. Equipped with a tapping device, it can perform tapping operations;
6. Electrical protection device with short circuit and overload protection.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
