Description

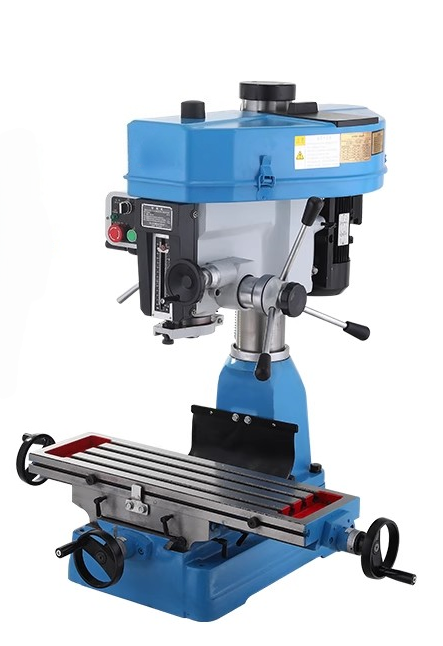

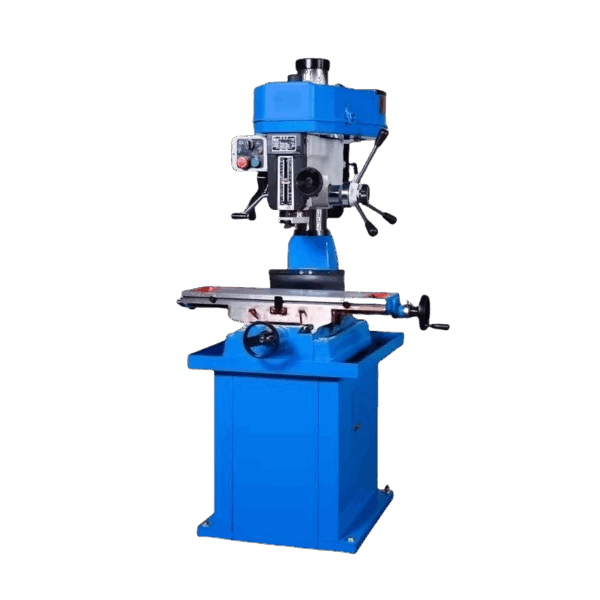

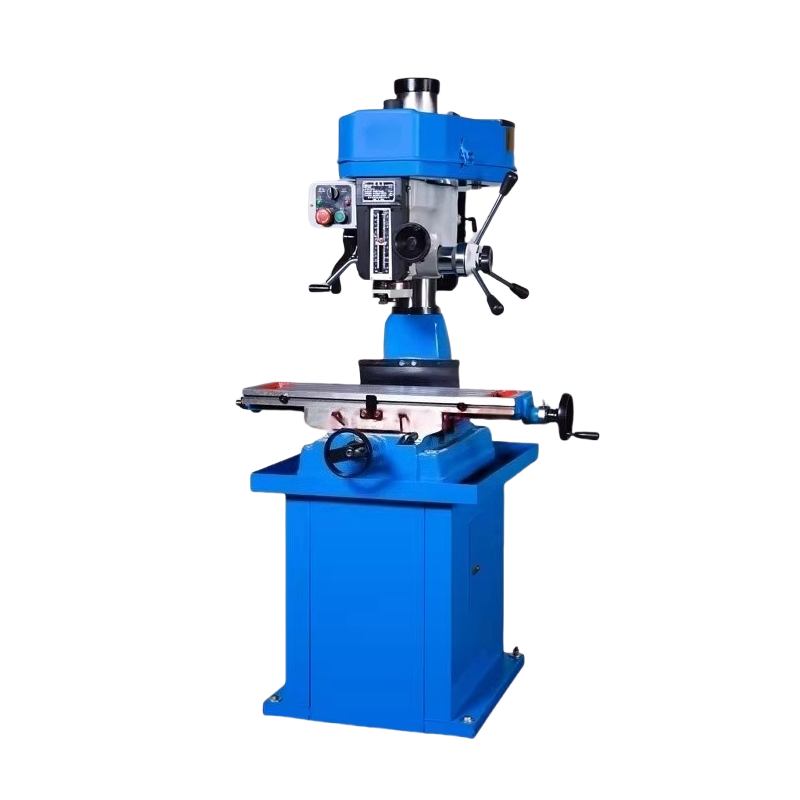

32mm Vertical Manual Milling And Drilling Machine SCJMDM32 Series

Model	SCJMDM32
Max.Drilling Dia	31.5mm
Max.Tapping Dia	Steel M20/Iron M24
Max vertical milling diameter	22mm
Max end milling width	80mm
Maximum spindle stroke	130mm
Column diameter	/
Distance from spindle center to column busbar	202mm
Max distance from spindle end to worktable	460mm
Max distance from spindle end to base	/
Spindle taper	MT3
Spindle Speed	100-2150r/min
Speed grade	12
Spindle feed rate	/
Worktable size	730*210mm / 820*240mm(option)
Workbench stroke	450*170mm/540*170mm(option)
Base size	/
The motor	1100 single phase/1500w triphase
Voltage	380V/220V
Frequency	50HZ
Weight	285kg(G.W.)/250kg(N.W.)
Overall	860*740*1240mm

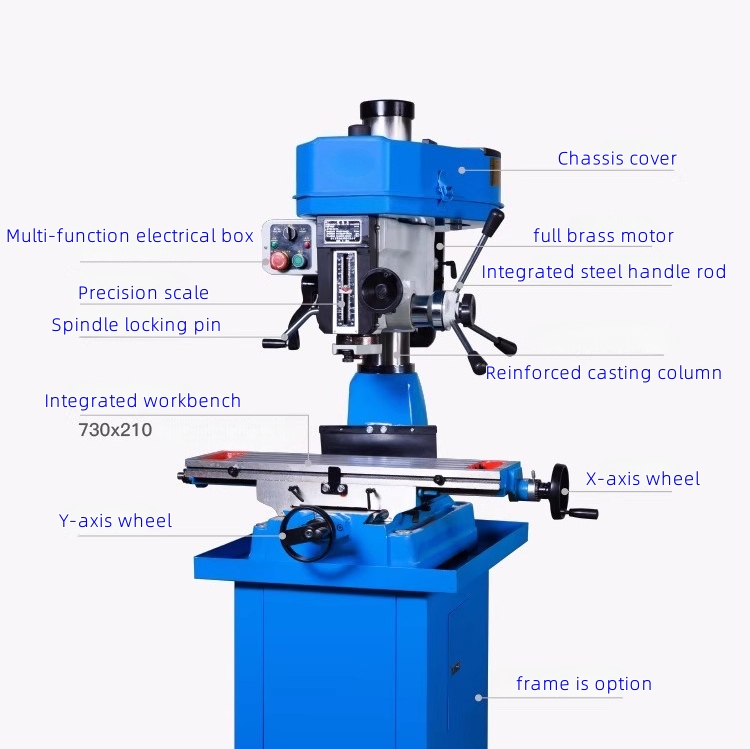

Machine Features:

1. The pulley transmission structure is simple and easy to adjust;
2. Smooth operation, low noise, and low vibration;
3. Equipped with overload protection function, the belt slips when the machine tool is overloaded.
4. Enhanced column, precise scale, multifunctional electrical device, further improving processing accuracy and efficiency.
5. Without auto Feeder and cooling system

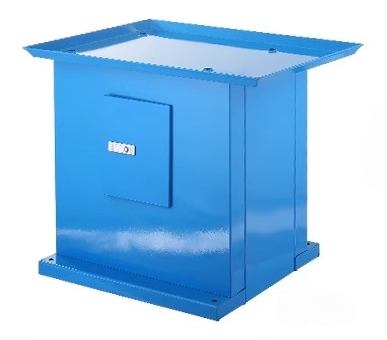

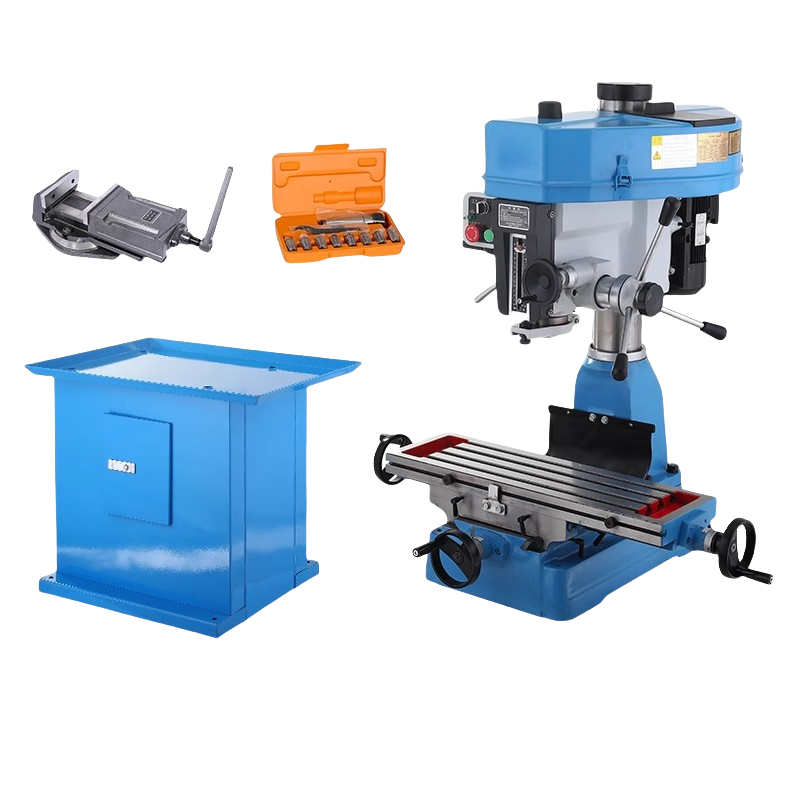

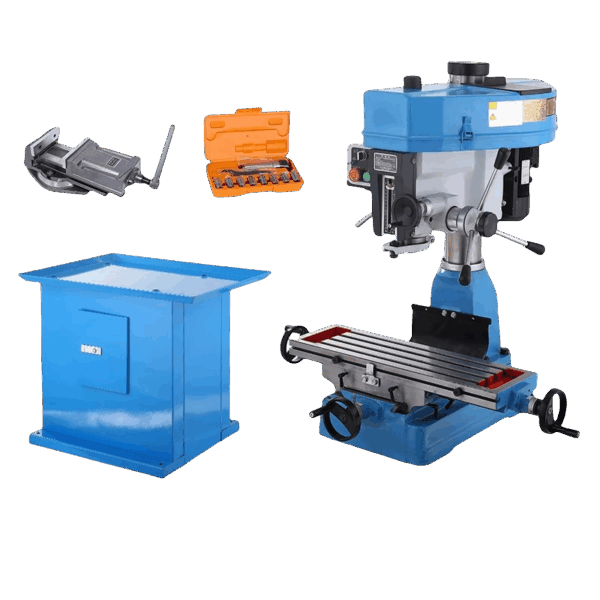

6. Frame,knife and XY 2Axis digital is option

Non Standard Goods:

Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.

Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.

2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
