Description

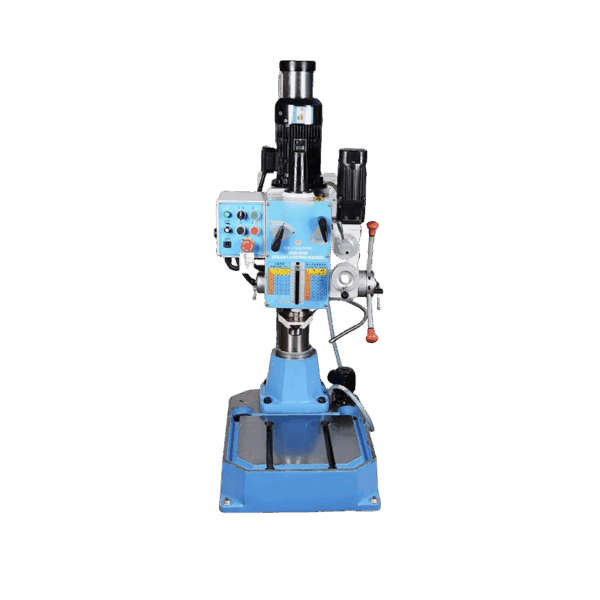

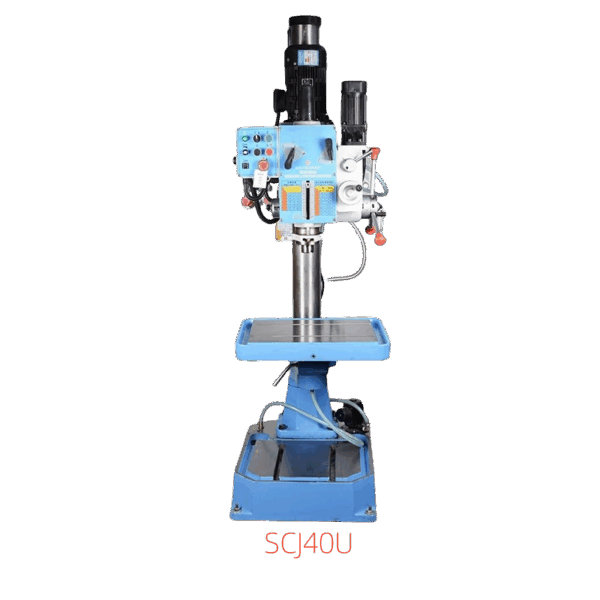

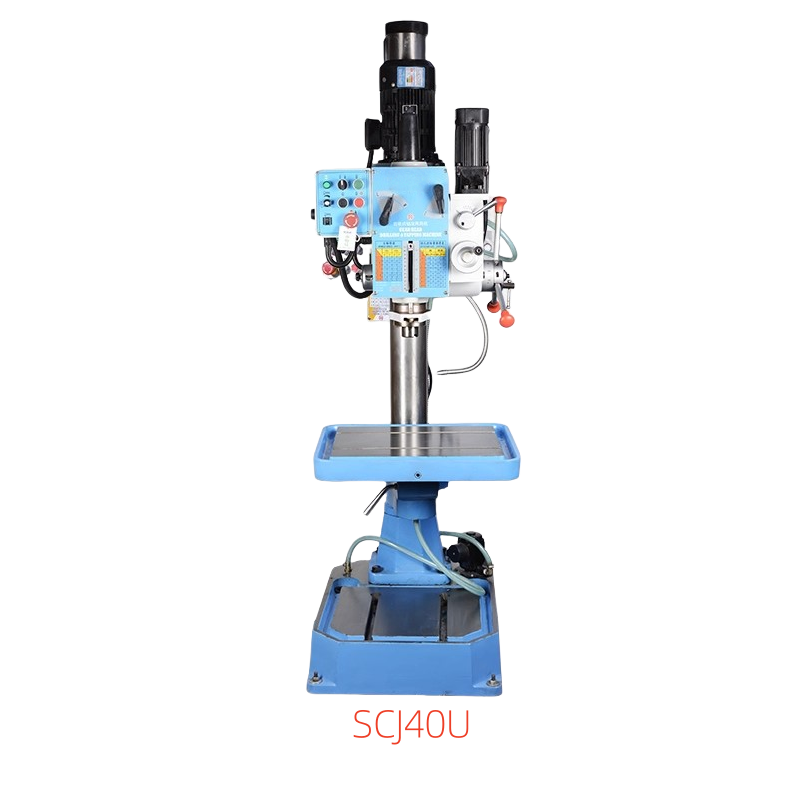

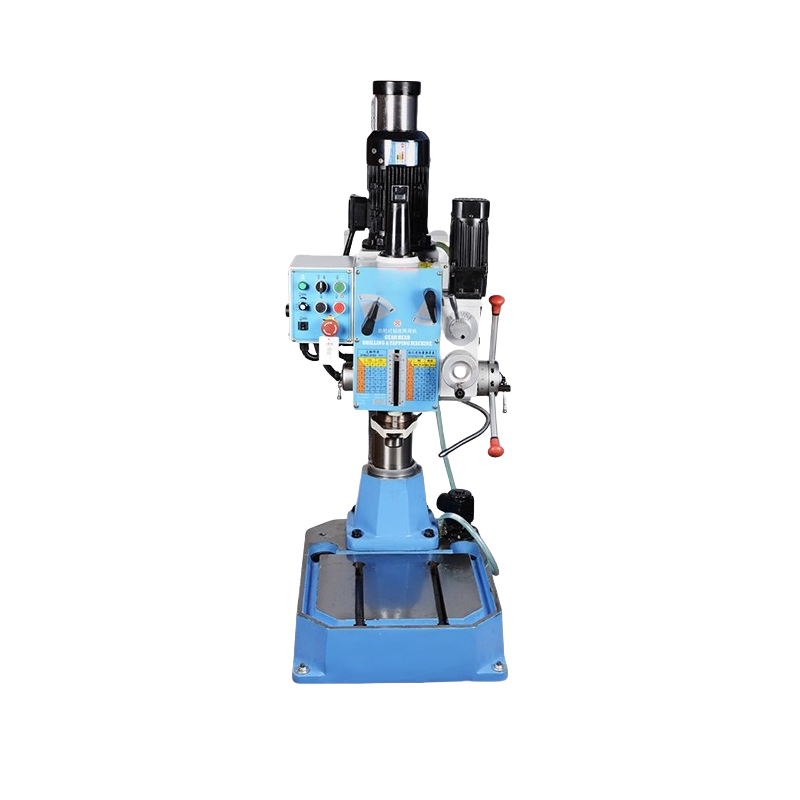

40mm Gear Type Manual Feed Drilling And Tapping Machine SCJ40U
Supper High Pillar
|
Model
|
SCJ40U
|
|
Max.Drilling Dia
|
40mm for iron/ 32mm for steel
|
|
Max.Tapping
|
32mm for iron/ 24mm for steel
|
|
Column diameter
|
115mm
|
|
Spindle stroke
|
110mm
|
|
Distance from spindle center to column busbar
|
261.5mm
|
|
Distance from spindle center to table
|
745mm
|
|
Max distance from spindle end to base
|
1245mm
|
|
Tapper
|
MT4/R8
|
|
Spindle speed
|
50-1250 rpm
|
|
Speed grade
|
6
|
|
Worktable
|
540*470mm
|
|
Worktable Travel
|
515mm
|
|
Working base
|
635*460mm
|
|
Volt
|
220/380v
|
|
Motor
|
1100/1500w
|
|
Motor for cooling
|
40w
|
|
Weight（G.W./N.W.）
|
360/320kg
|
|
Volume
|
720*740*1920mm
|
Machine Features:
2. Reliable work, high efficiency, and long lifespan
3. Large range of power, speed, and size used
4. The machine head can tilt left and right by 45 degrees, making it convenient for drilling and milling special angles.
5. Enhanced gears provide larger transmission torque and longer service life, avoiding the disadvantage of belt transmission slipping easily.
6. By rotating the button, operations such as drilling, tapping forward and reverse can be achieved.
7. Adjusting the knob can achieve 6-speed gearbox transmission, which is convenient and fast.
8. The integrated steel handle rod makes manual feeding more convenient, and the handwheel adjusts the micro feed.
9. The spindle can be equipped with an automatic feed system, which is easy to operate, saves labor, and improves efficiency.
10. The base can be equipped with a cooling device, which can effectively reduce machine heating and extend continuous working hours.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
