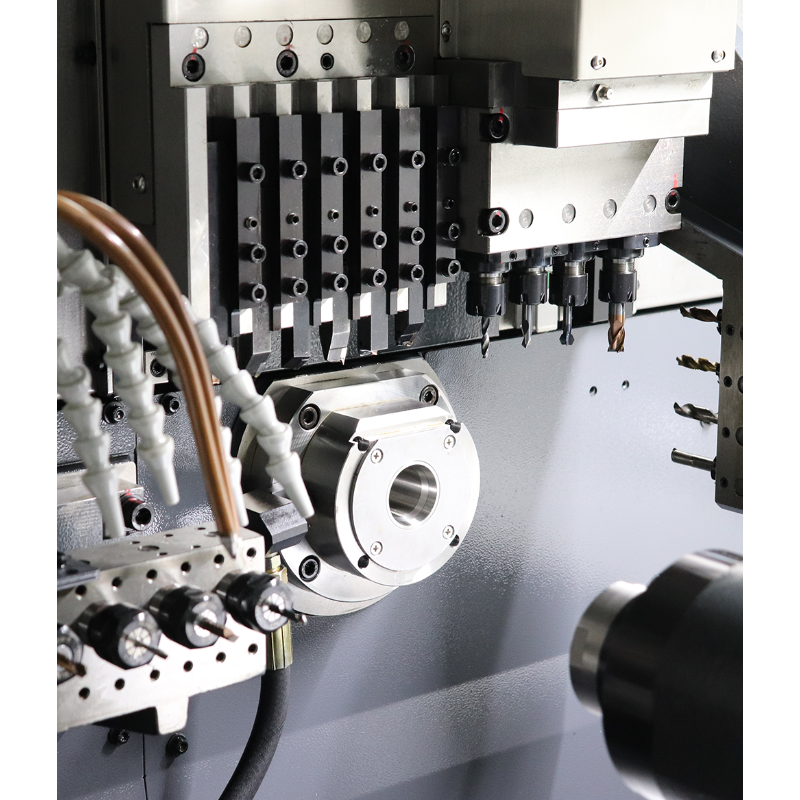

5-Axis φ20 Double Motorized Spindle Swiss Lathe Machine SCJ2SL205 Series

1. The spindle adopts a high-speed electric spindle unit, which is equipped with an oil cooling device and an airtight structure, thereby improving the service life of the bearings and reducing the accuracy changes caused by the cooling and heating of the product. 2. Configure a volumetric lubricating oil system to measure and distribute the amount of oil at each lubrication point as needed, ensuring good lubrication of all moving parts of the machine tool, energy-saving and environmentally friendly, and economical and practical. 3. The tool arrangement is reasonable and convenient, with a wide variety of tools that can be installed for various processes such as milling, drilling, boring, reaming, and tapping.

Enquiry

Description

5-axis FANUC Double Motorized Spindle Swiss Lathe Machine For Rotating Shaft Electrical Industry SCJ2SL205 Series

Model		SCJ2SL205-1	SCJ2SL205-2	SCJ2SL205-3	SCJ2SL205-4
Parameters		5axis,dual spindle	5axis,dual spindle	5axis,dual spindle	5axis,dual spindle
NC system		FANUC Oi-TF Plus	FANUC Oi-TF Plus	FANUC Oi-TF Plus	FANUC Oi-TF Plus
Lathe rated power	kw	15	15	15	15
Machining Range
Maximum machining diameter	mm	φ20	φ20	φ20	φ20
With guide bush	mm	230	230	230	230
Non guide bush	mm	2D	2D	2D	2D
Max tool installed qty		18	20	21	23
Main/Sub Spindle

Main spindle power	kw	2.2/3.7	2.2/3.7	2.2/3.7	2.2/3.7
sub spindle power	kw	2.2/3.7	2.2/3.7	2.2/3.7	2.2/3.7
Main/sub spindle rev speed	rpm	10000/10000	10000/10000	10000/10000	10000/10000
Main spindle max through hole dia	mm	φ27	φ27	φ27	φ27
Sub spindle max clamping dia	mm	φ20	φ20	φ20	φ20
Sub spindle max through hole dia	mm	φ27	φ27	φ27	φ27
Machine Tool Information
Rapid feed speed	m/min	18(X1) 24(X2/Y1/Z1/Z2)	18(X1) 24(X2/Y1/Z1/Z2)	18(X1) 24(X2/Y1/Z1/Z2)	18(X1) 24(X2/Y1/Z1/Z2)
Feed motor power	kw	0.75	0.75	0.75	0.75
The power capacity	vac	380	380	380	380
Air pressure device	mpa	0.6	0.6	0.6	0.6
Weight	T	3.1	3.1	3.1	3.1
Dimensions	mm	245013501850	245013501850	245013501850	245013501850

Product Features:

1. Each axis is equipped with imported high-precision linear guides, ball screws, and precision bearings.
2. Adopting a synchronous guide sleeve structure to achieve high-speed and high-precision machining.
3. Flexible switching between guide sleeve and non guide sleeve to meet different processing requirements.
4. The key components include gas sealed structures, which prevent oil and slag, improve service life and stability.
5. Selecting high torque motors, high rigidity and strength axial sliding tables, and tool mounting seats to meet large cutting volumes and high processing efficiency.
6. High scalability, tool quantity configuration based on process matching, high cost-effectiveness.

Standard Configuration:

1. SYNTEC numerical control system
2. Main pneumatic chucking device
3. Movable guide bush
4. Synchronal rotary guide bush device
5. Live tool
6. Workpiece belt conveyor
7. Y2 tool holder

Optional Configuration:

1. Non guide bush
2.MITSUBISHI numerical control system
3. FANUC numerical control system
4. High pressure pump
5. Oil mist collector
6.Chip conveyor
7. Long workpiece collector

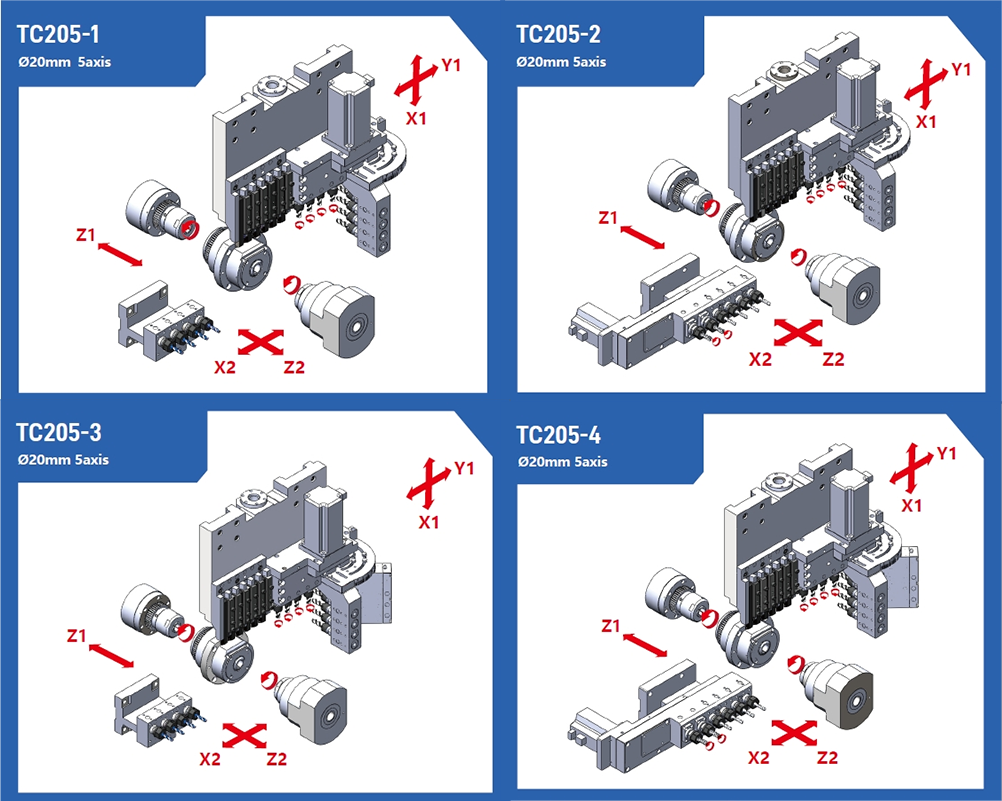

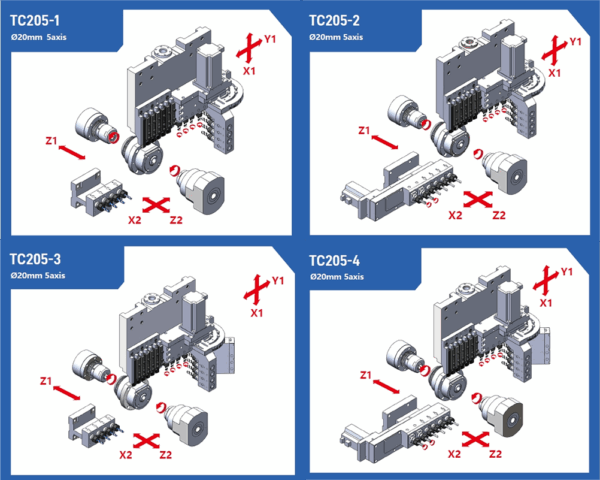

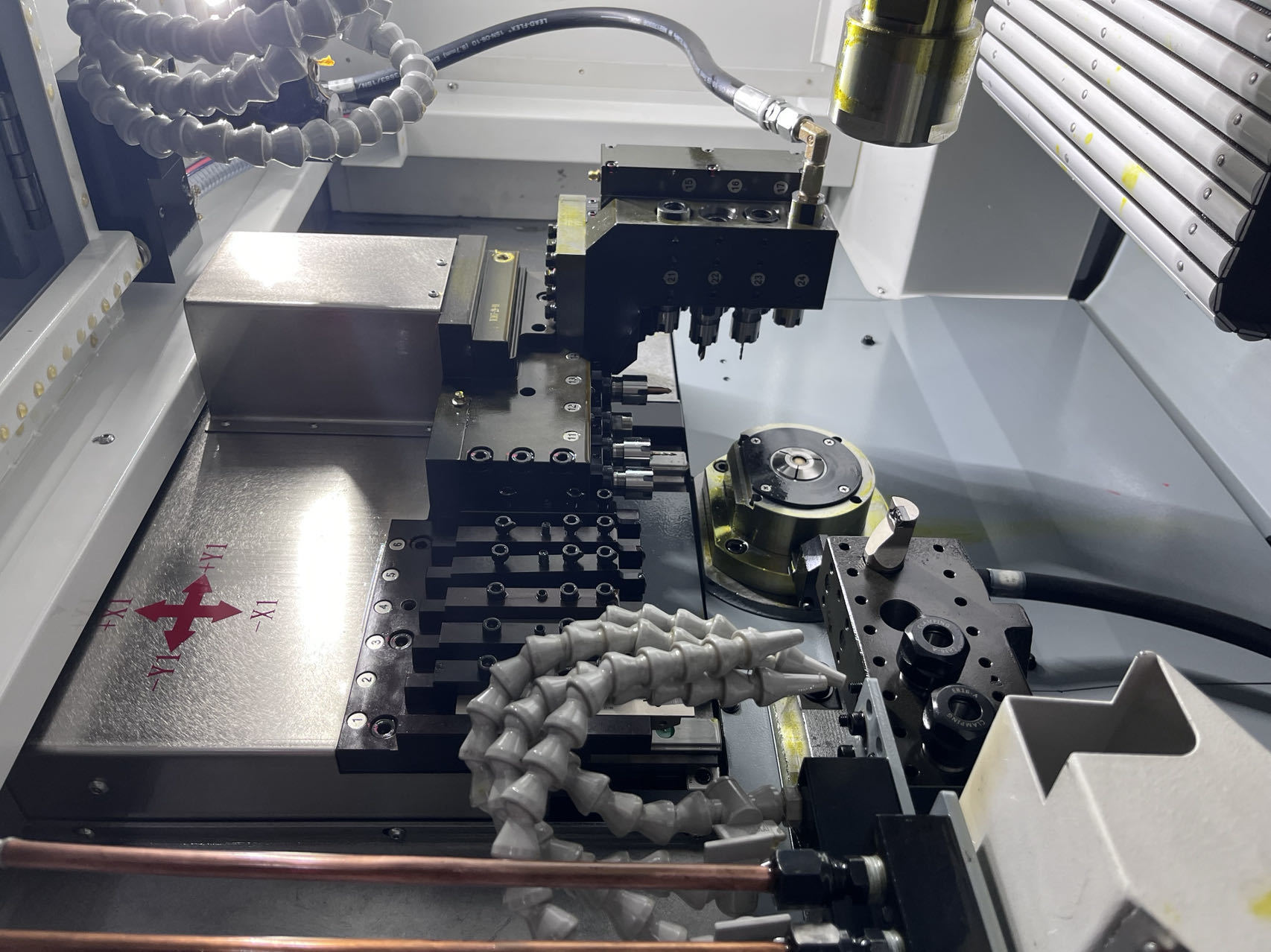

Structural:

Our Package：

Application:
