Description

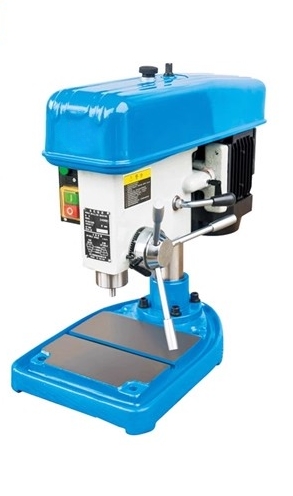

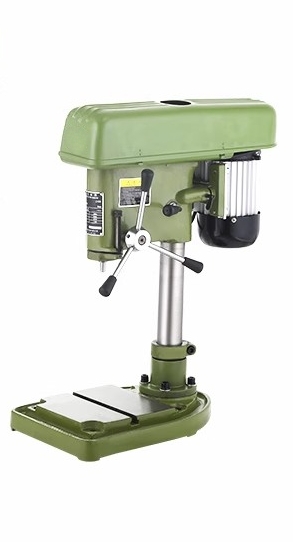

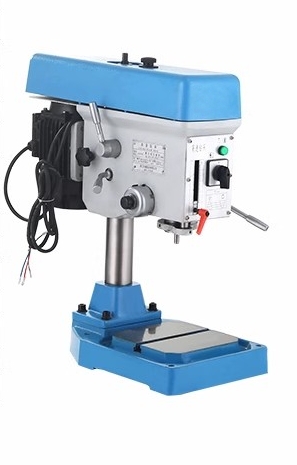

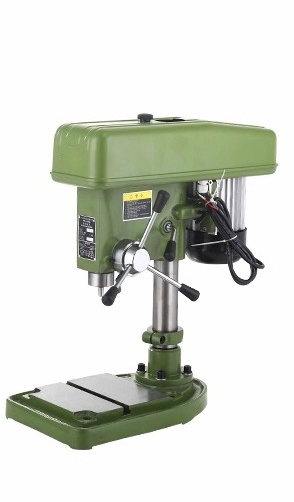

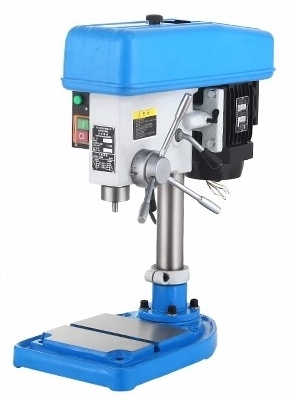

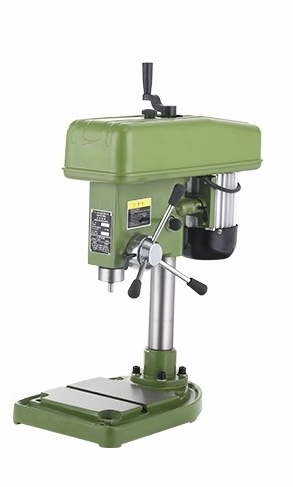

6mm Classic Small Bench Drilling Machine SCJ406 Series
|
Model
|
SCJ406
|
SCJU406
|
SCJP406
|
|
Max.Drilling Dia
|
6mm
|
6mm
|
6mm
|
|
Column diameter
|
50mm
|
50mm
|
50mm
|
|
Spindle stroke
|
65mm
|
65mm
|
65mm
|
|
Distance from spindle center to column busbar
|
140mm
|
140mm
|
140mm
|
|
Max distance from spindle end to base
|
225mm
|
225mm
|
225mm
|
|
Tapper
|
B10
|
B10
|
B10
|
|
Spindle speed
|
1400-5800 rpm
2000-12000 rpm
|
1400-5800 rpm
2000-12000 rpm
|
2000-12000 rpm
|
|
Speed grade
|
3
|
3
|
3
|
|

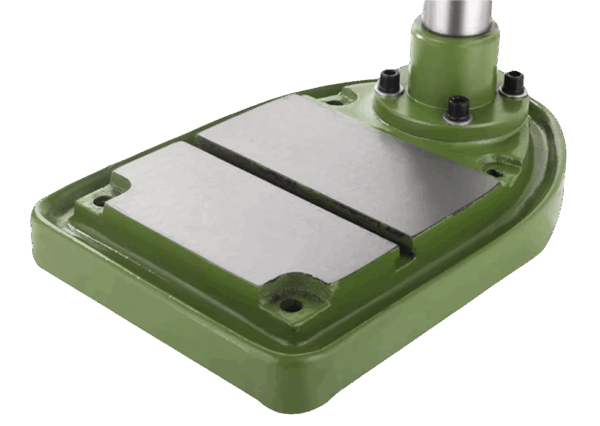

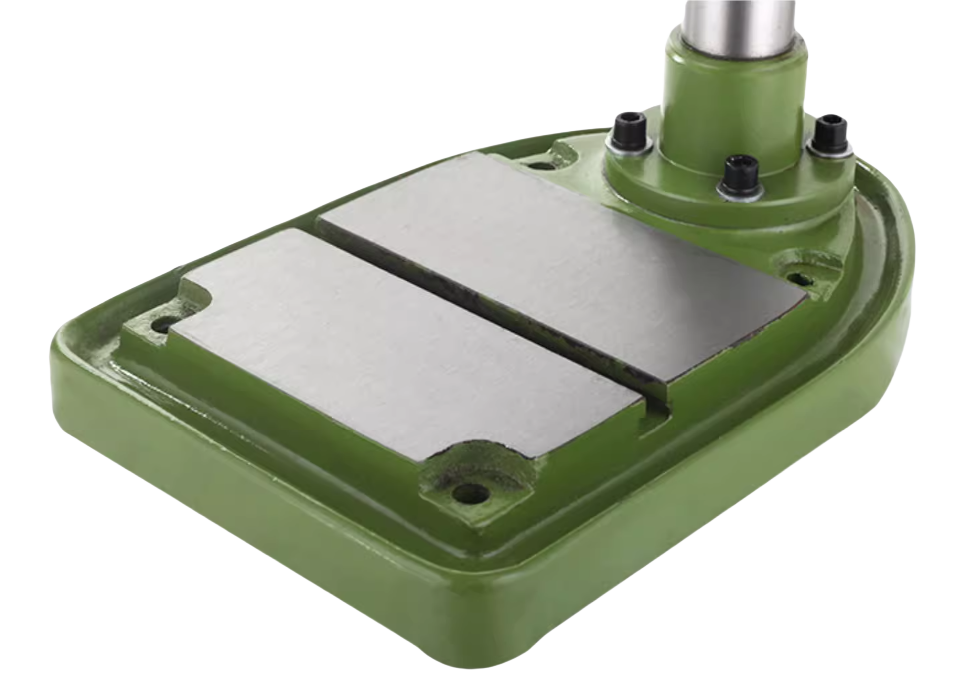

Working base
|
380*258mm
|
200*200mm
|
380*258mm
|
|
Volt
|
380/220v
|
380/220v
|
380/220v
|
|

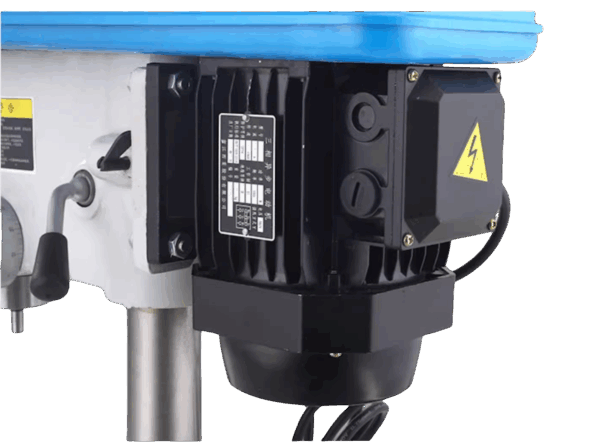

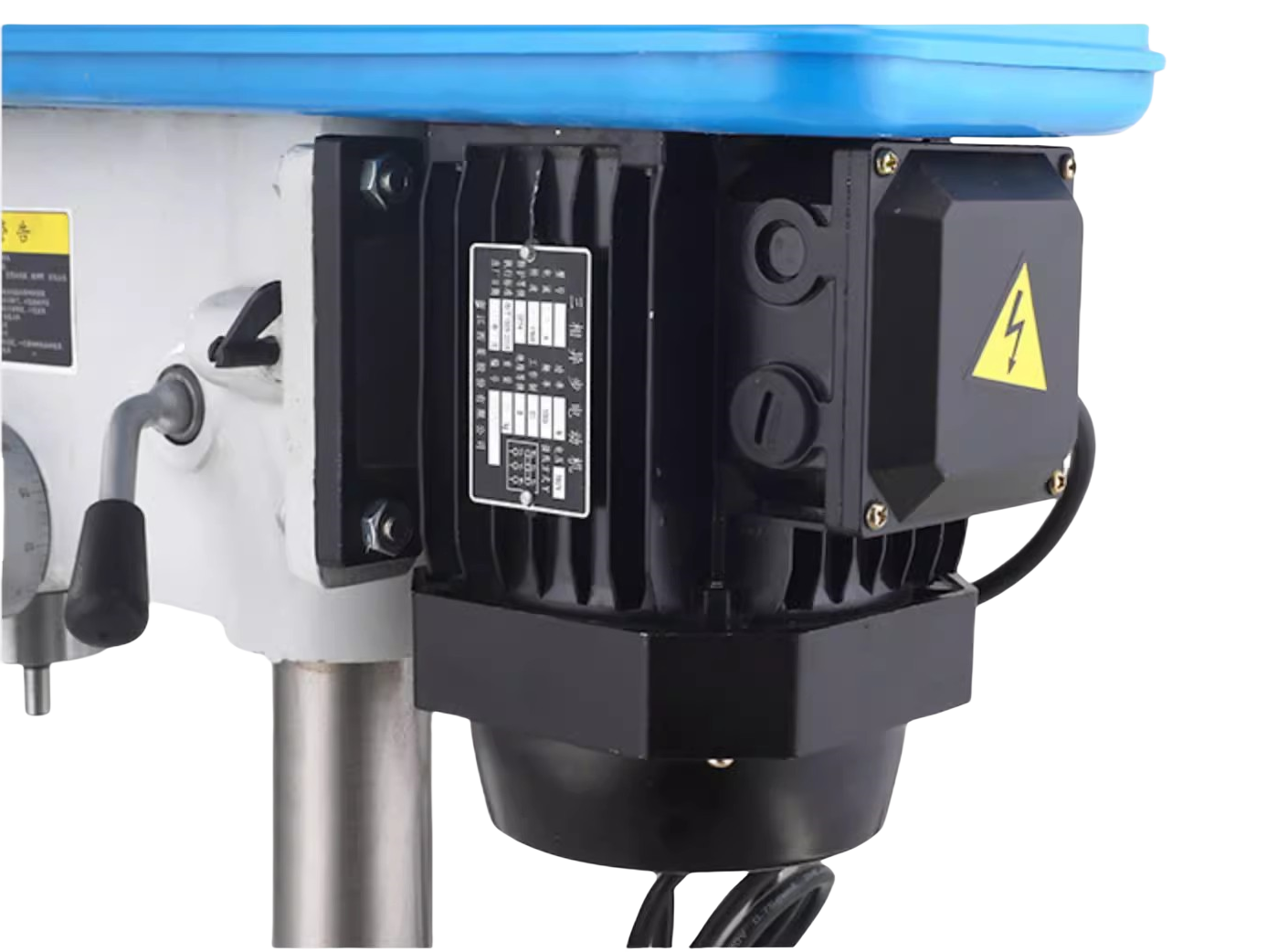

Motor
|
250w
|
250w
|
250w/370w
|
|
Weight（G.W./N.W.）
|
48/38kg
|
48/38kg
|
48/38kg
|
|
Volume
|
610*300*540mm
|
610*300*540mm
|
610*300*540mm
|
Index:

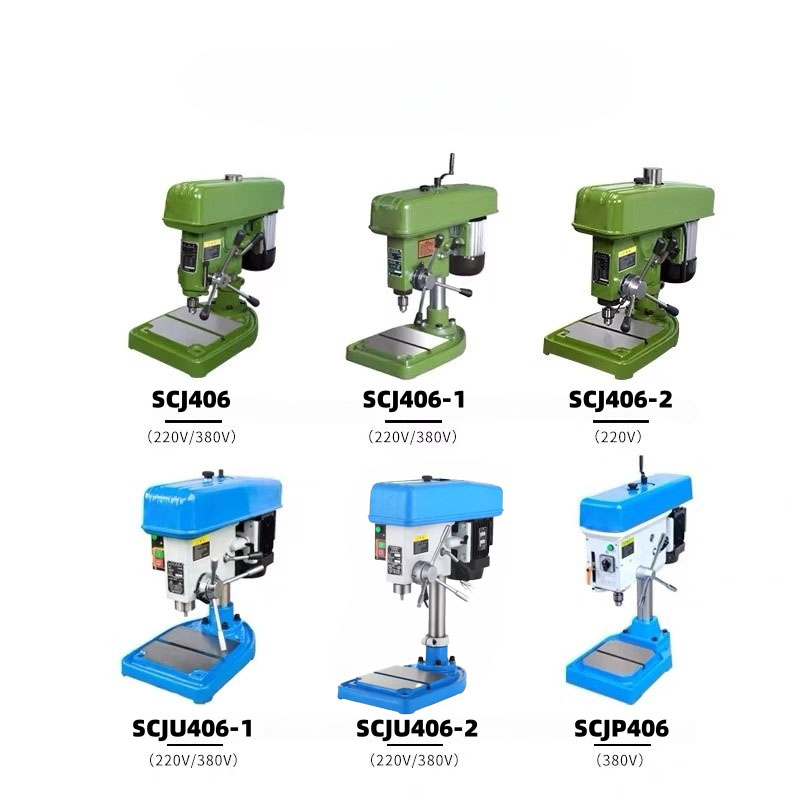

| Model | Power | Max. Drill Dia | Lifting Head | Lifting Table | Drill Depth Tool | |
| Economic
|
SCJ406 | Single phase/tri-phase 250w | 6mm | Manual,by hand | / | scale |
| SCJ406-1 | Single phase/tri-phase 250w | 6mm | Manual,by handle | / | dial | |
| SCJ406-2 | Single phase/tri-phase 250w | 6mm | Manual,by hand | / | dial | |
| Upgrade
|
SCJU406-1 | Single phase/tri-phase 250w | 6mm | Manual,by handle | / | dial |
| SCJU406-2 | Single phase/tri-phase 250w | 6mm | Manual,by hand | / | dial | |
| New efficient motor; Integrated steel extended handle;LED Working Light;Sleeve guide device | ||||||
| Plus
|
SCJP406 | Single phase250W/tri-phase 370w | 6mm | Manual,by handle | / | precise scale |

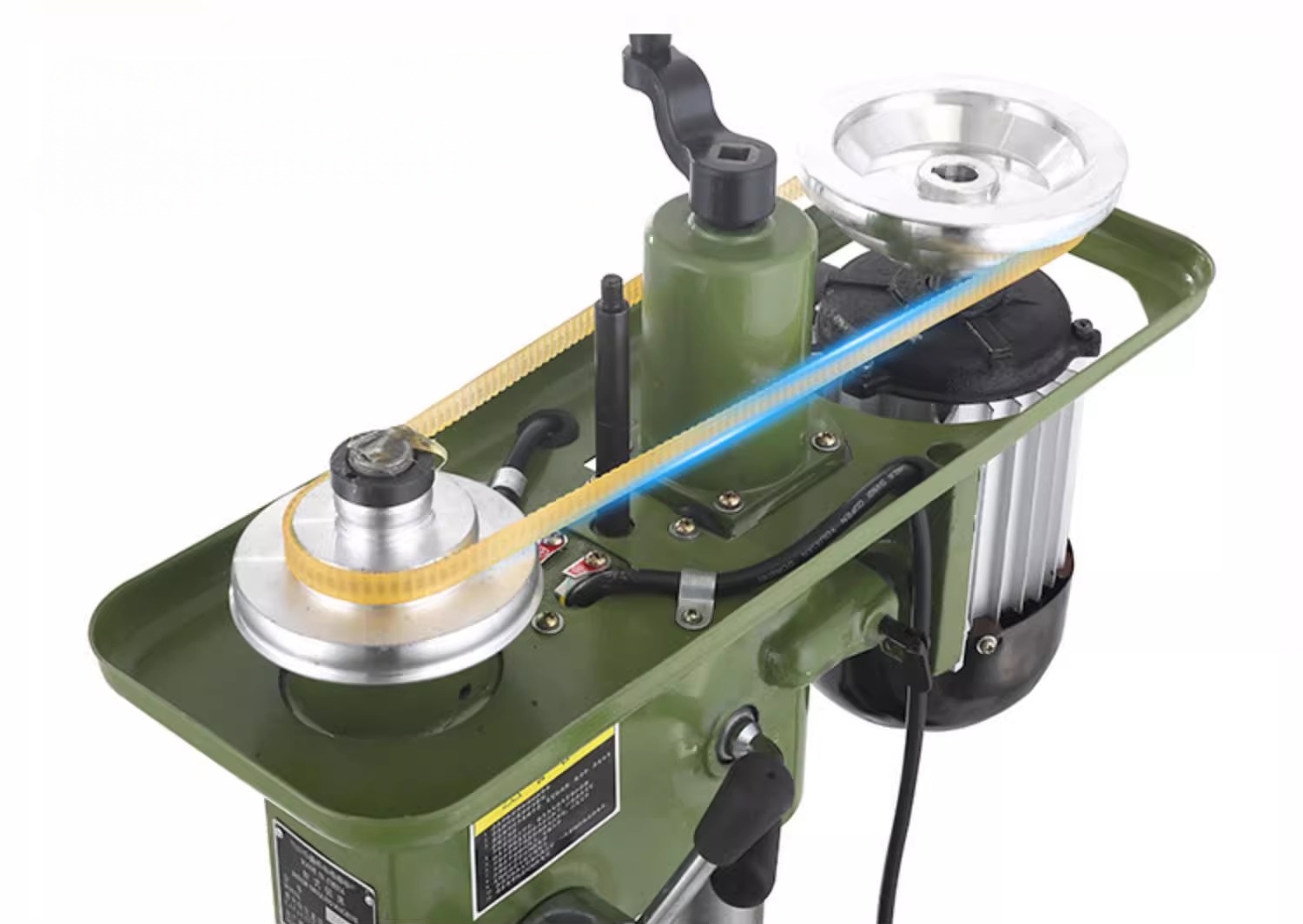

| Belt tensioning mechanism; Precise scale; New efficient motor; Integrated steel extended handle;LED Working Light;Sleeve guide device | ||||||
Machine Features:
2. High processing accuracy and good rigidity;
3. The body is made of high-quality cast iron, which is durable and long-lasting;
4. Widely used in industries such as woodworking, instrumentation, and lock making.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
