Description

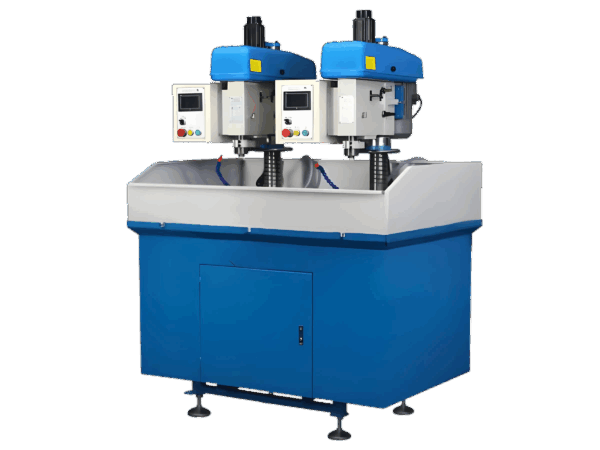

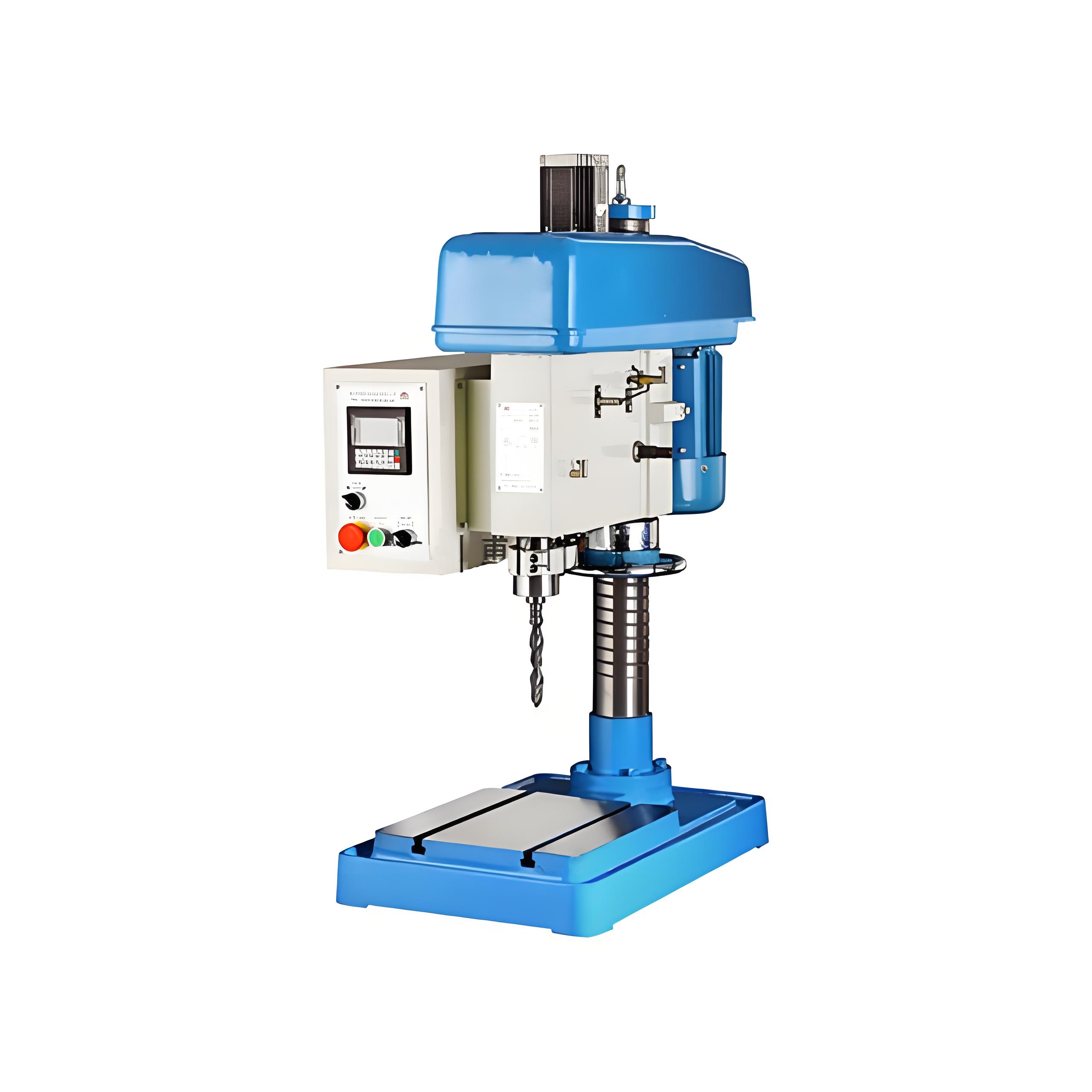

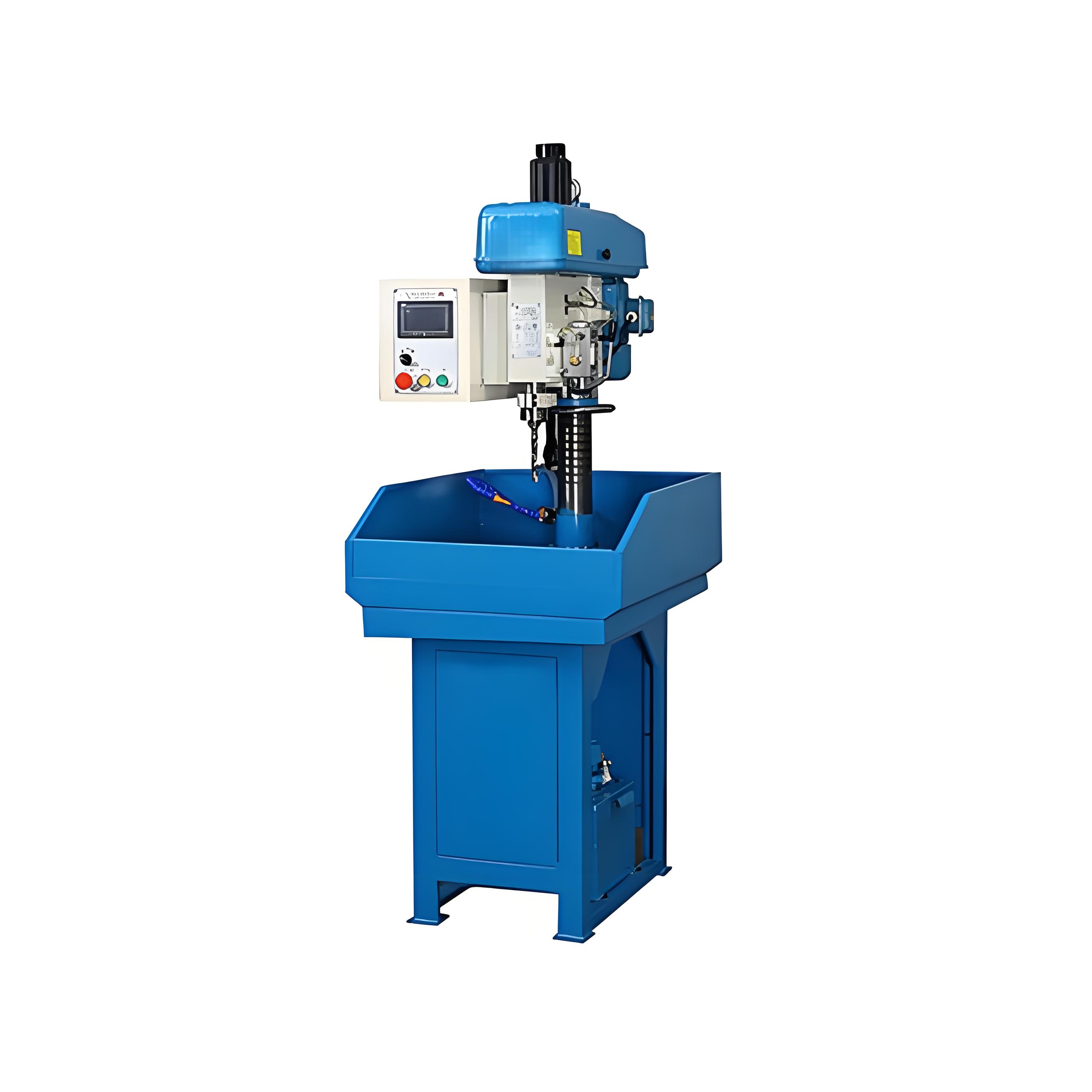

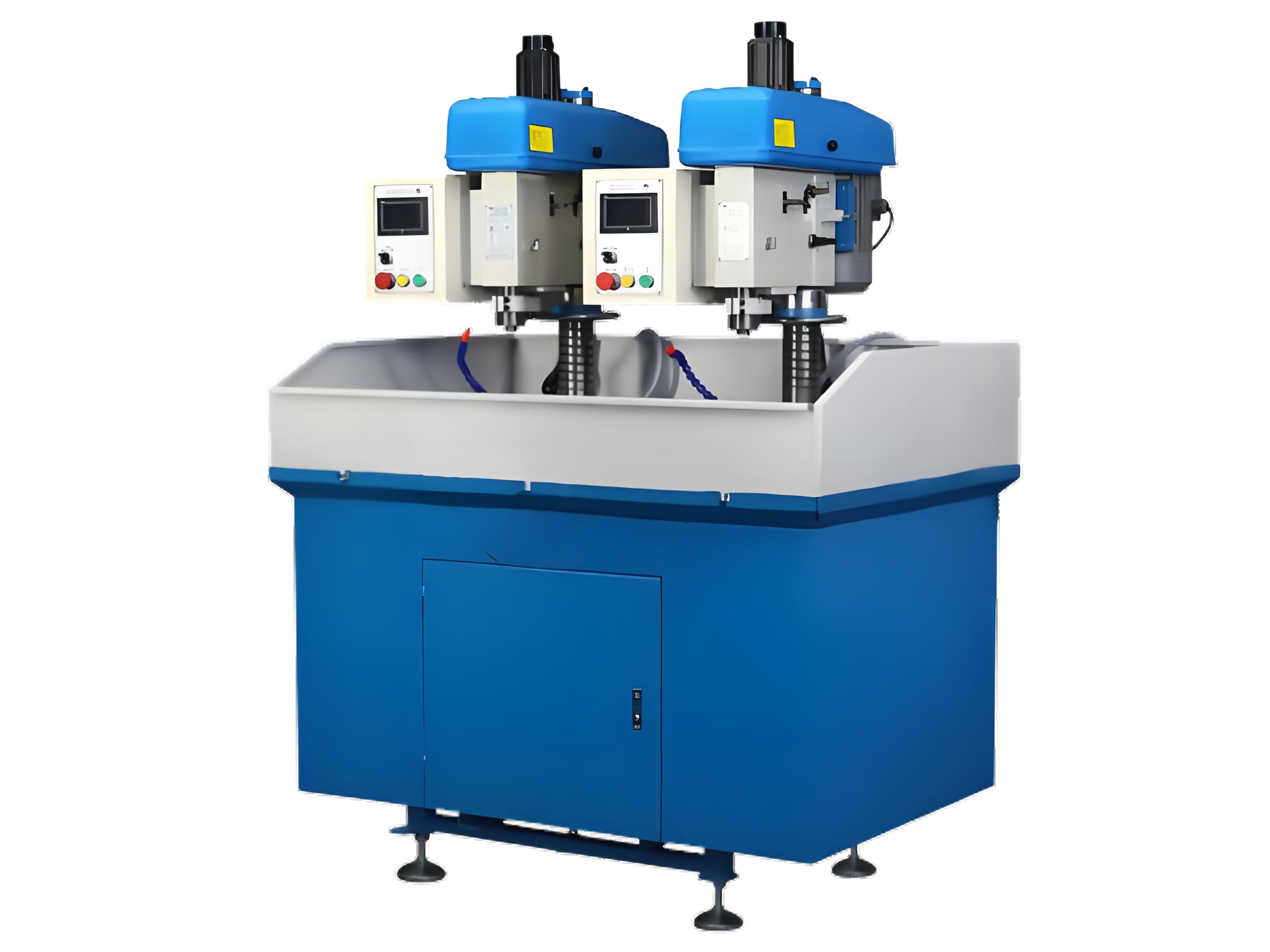

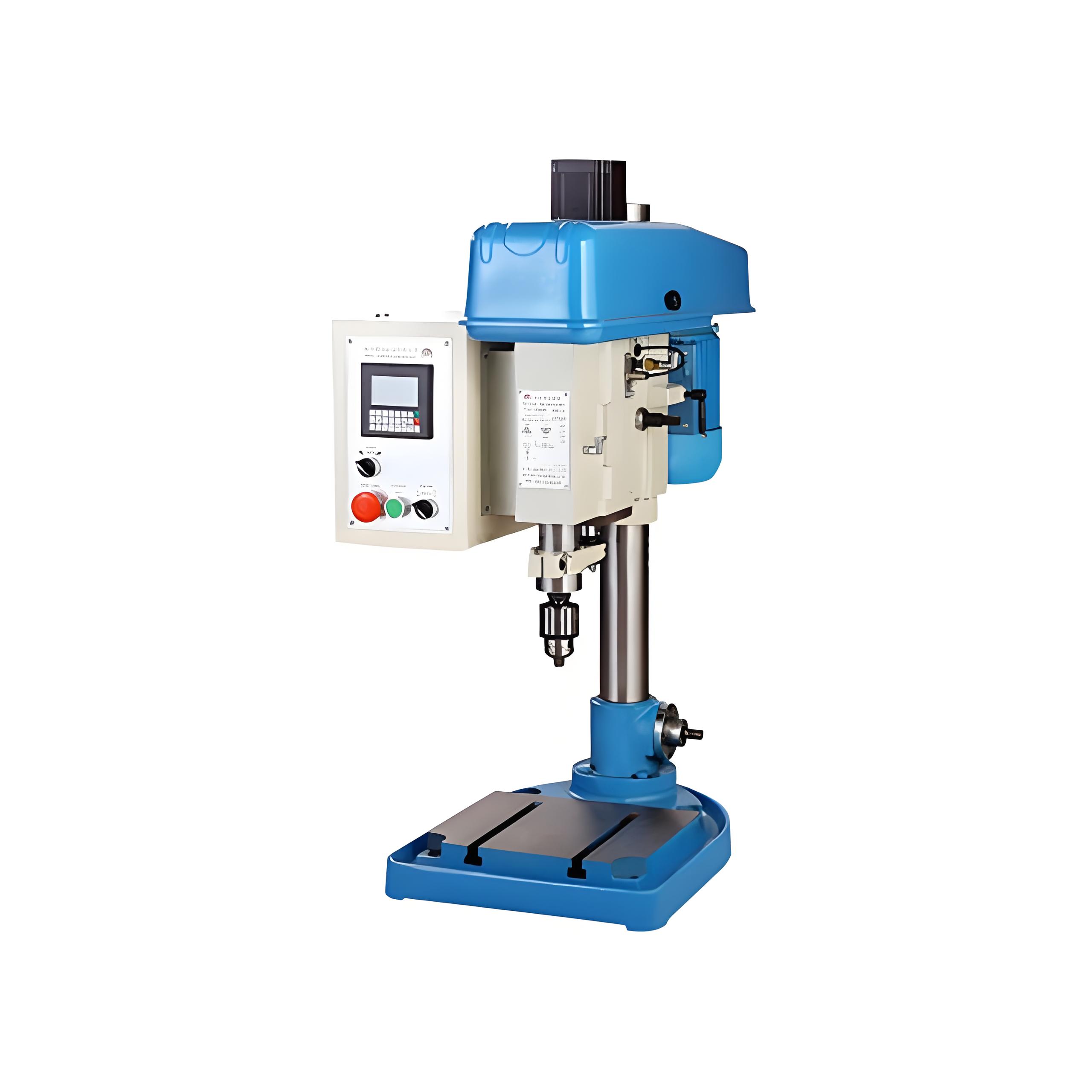

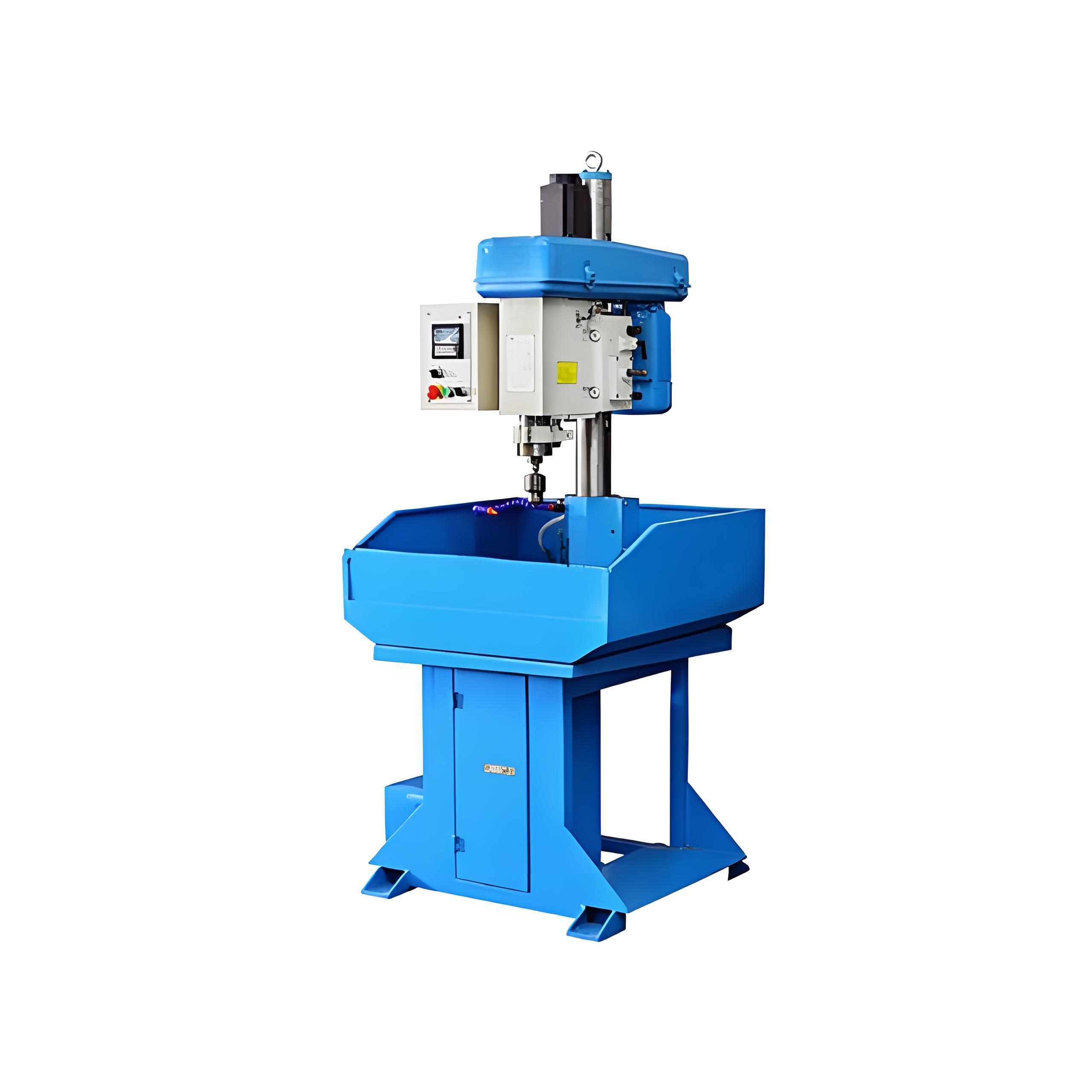

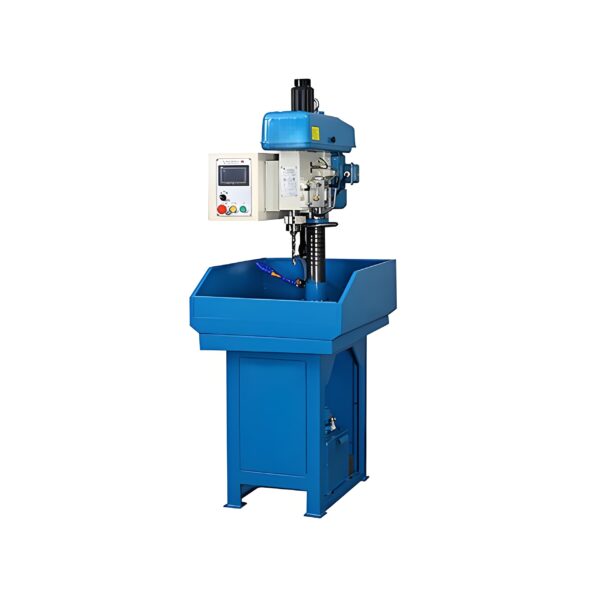

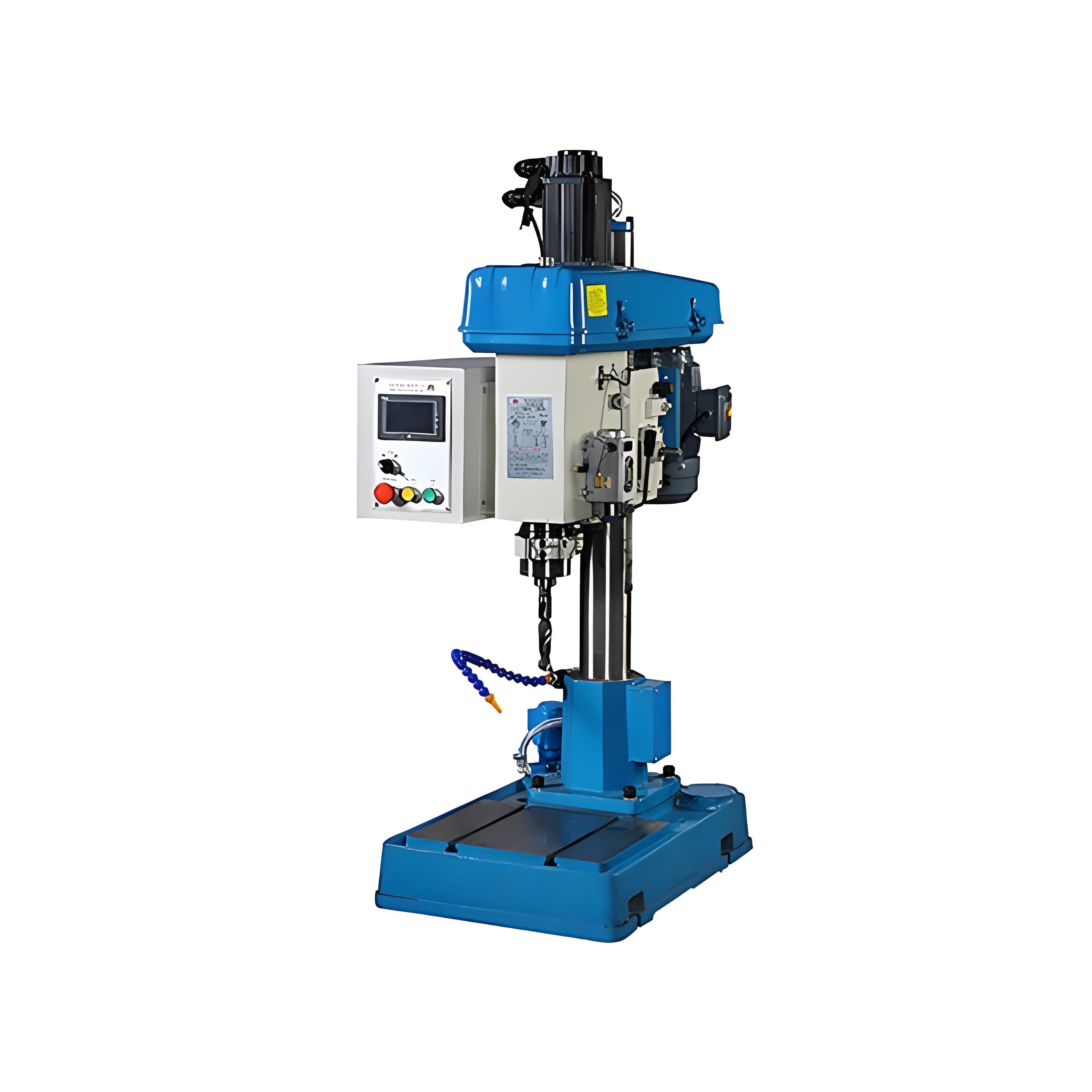

Manual CNC Bench Drilling Machine SCJCDSZ Series
|
Model
|
SCJCDSZ12(T)
|
SCJCDSZ20T)
|
SCJCDSZ30(T)
|
|
Drilling capacity(mm)
|
10/12
|
16/22
|
26/30
|
|
Spindle travle(mm)
|
100
|
100
|
160
|
|
Taper
|
B16
|
MT.2
|
MT.3
|
|
Spindle speed(r/min)
|
480-3030
|
450-2050
|
480-1920
|
|
Main spindle to working table(mm)
|
140-450
|
120-510
|
115-645
|
|
Column diameter(mm)
|
85
|
95
|
120
|
|
Working table(mm)
|
250*300
|
3150*350
|
310*400
|
|
Motor(kw)
|
0.75 4P/6P
|
1.5 4P/6P
|
2.2 4P/1.5 6P
|
|
Weight(kg)
|
120/180
|
175/250
|
300/400
|
|
Volume(mm)
|
770*620*950
770*620*1800
|
880*610*1060
880*610*1880
|
1000*700*1370
1000*700*1970
|

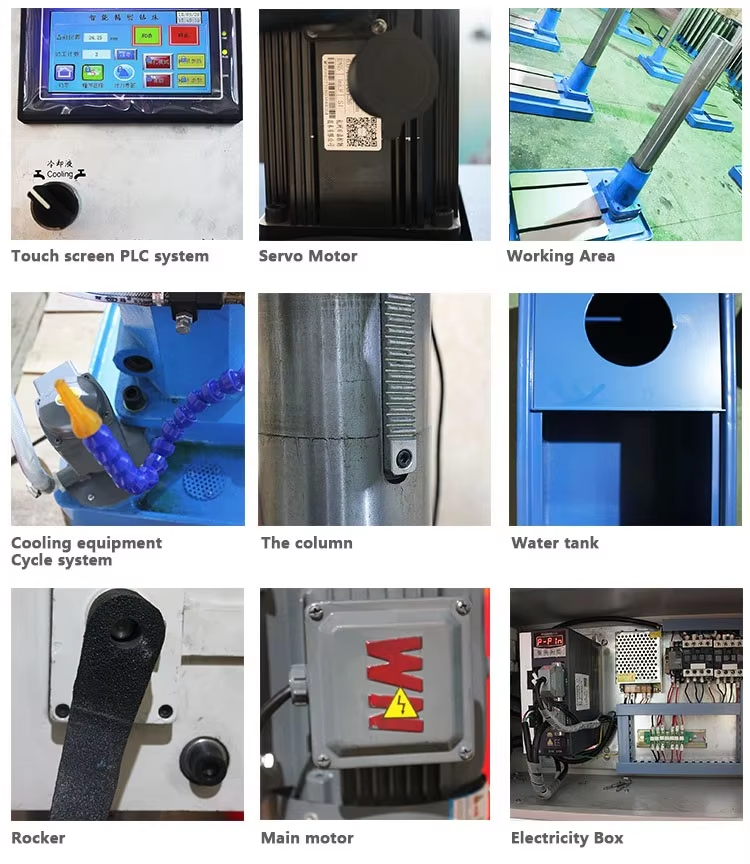

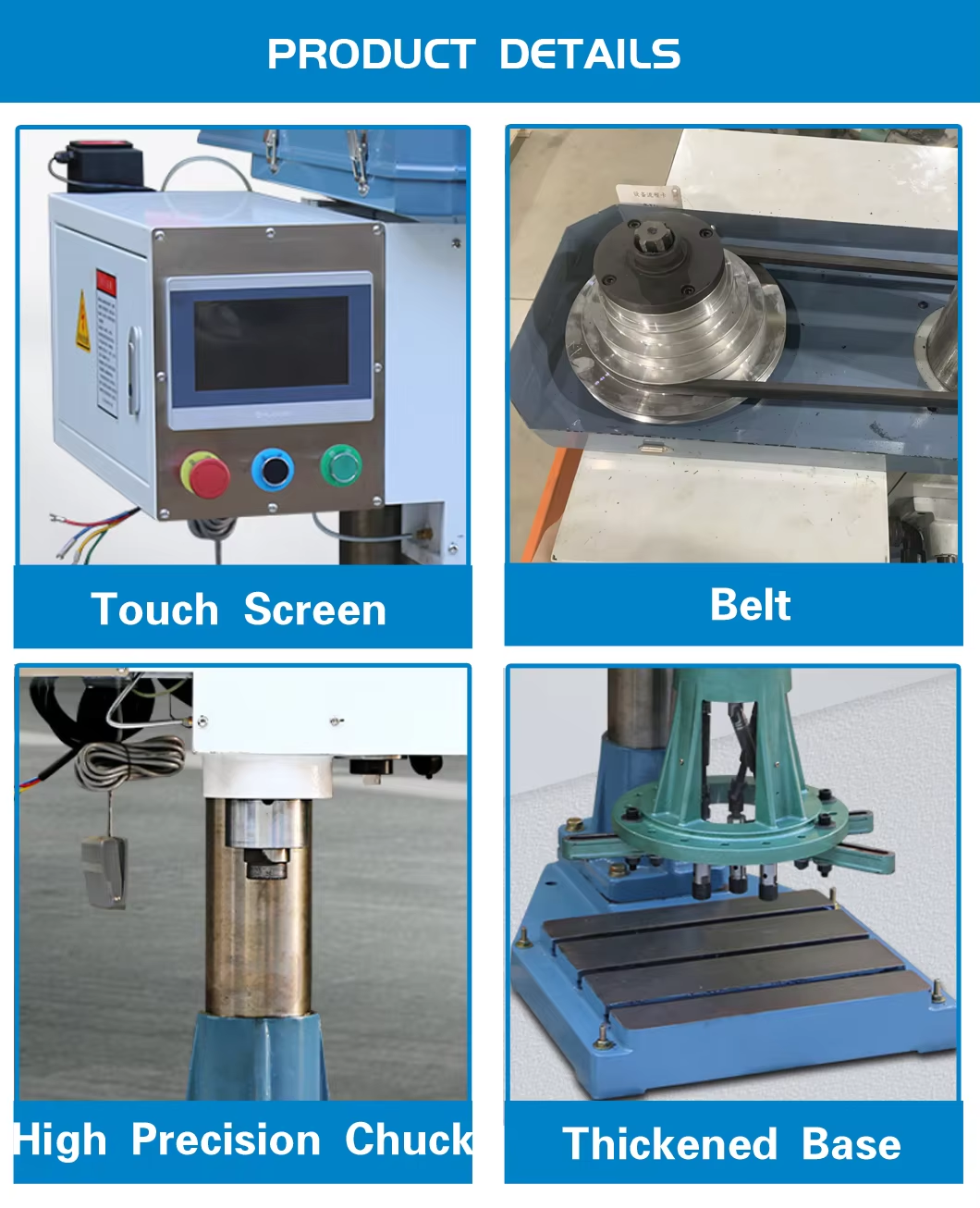

Machine Features:
3.Single and continuous action,time waitting setting,segment feeding,etc.
4.High precision ball screw.
5.Intelligent control,simple operation,repeatability up to 0.02mm.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
