Description

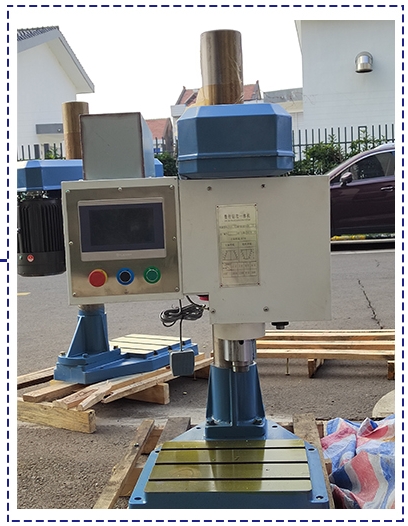

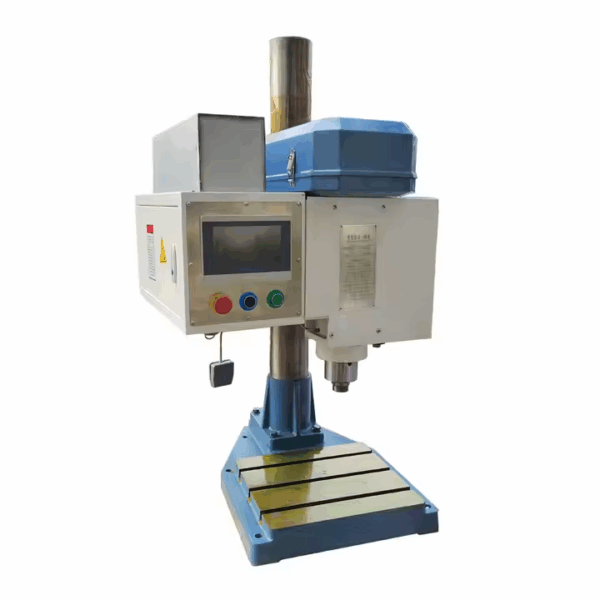

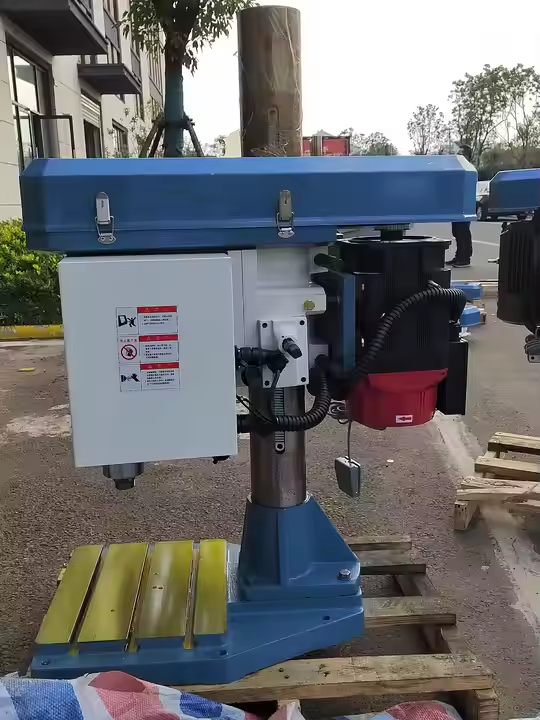

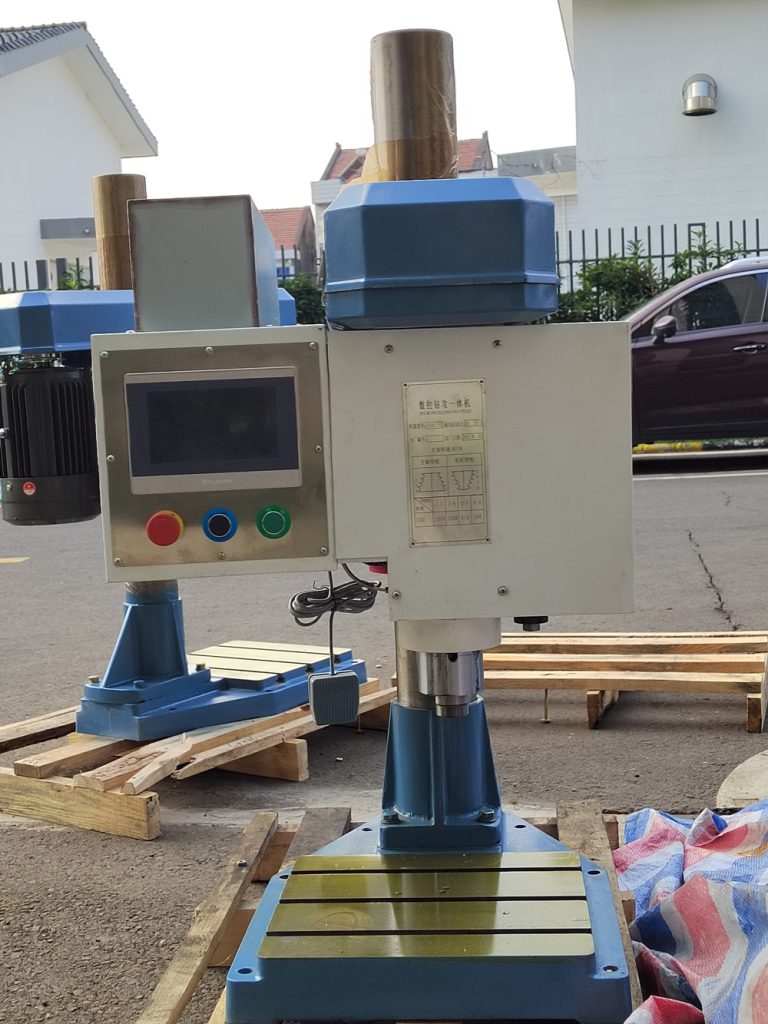

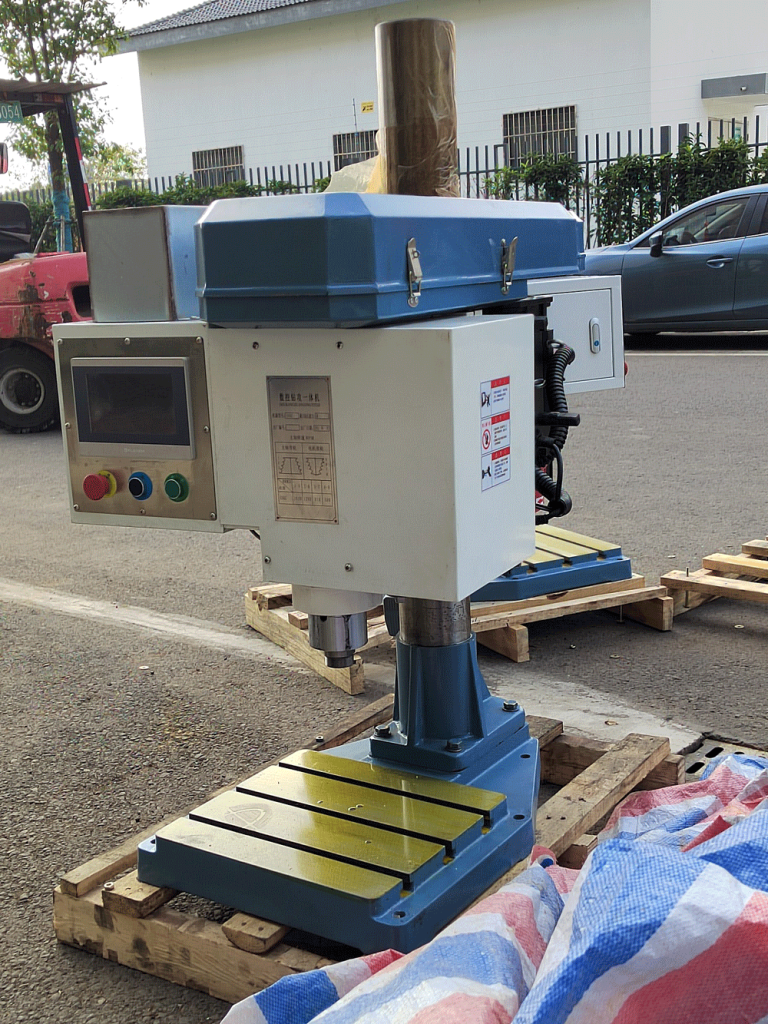

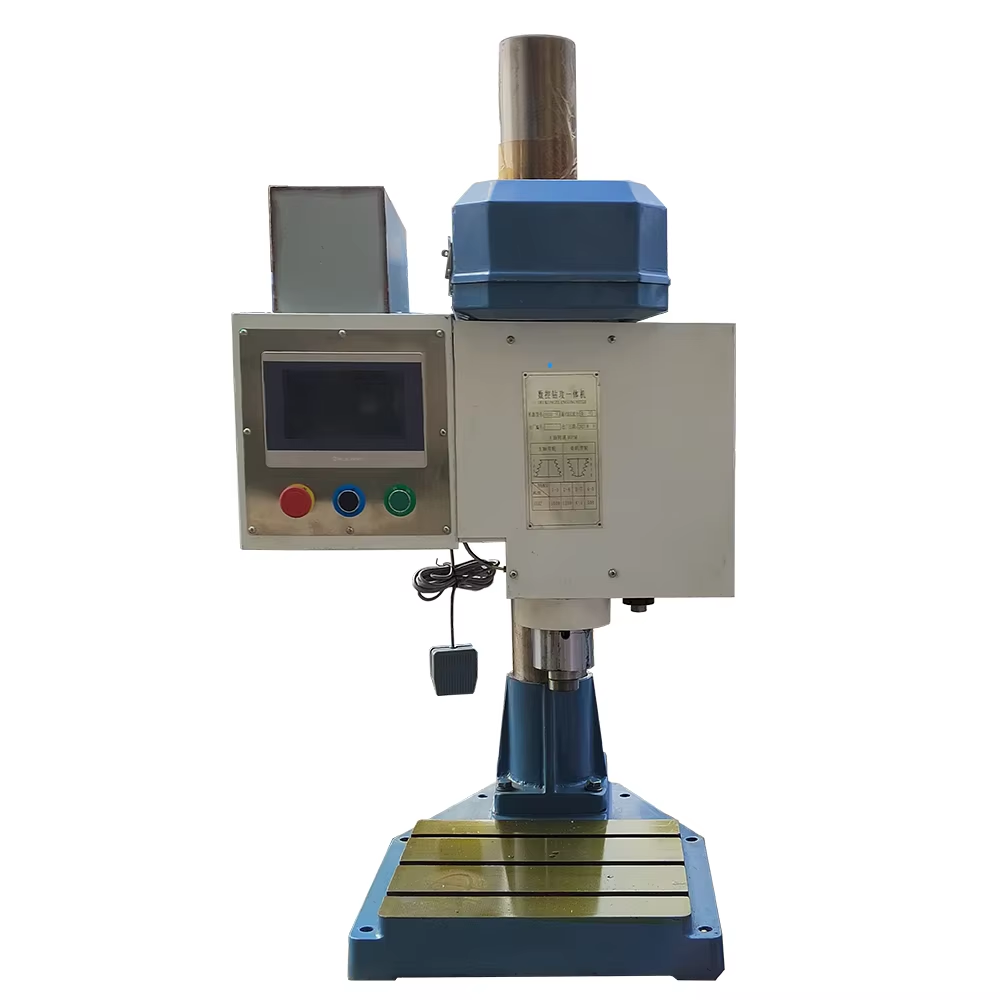

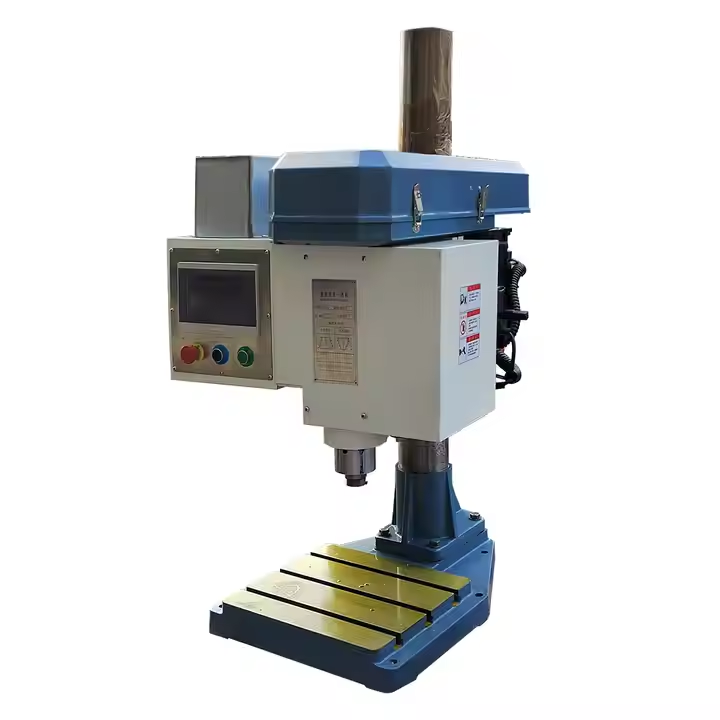

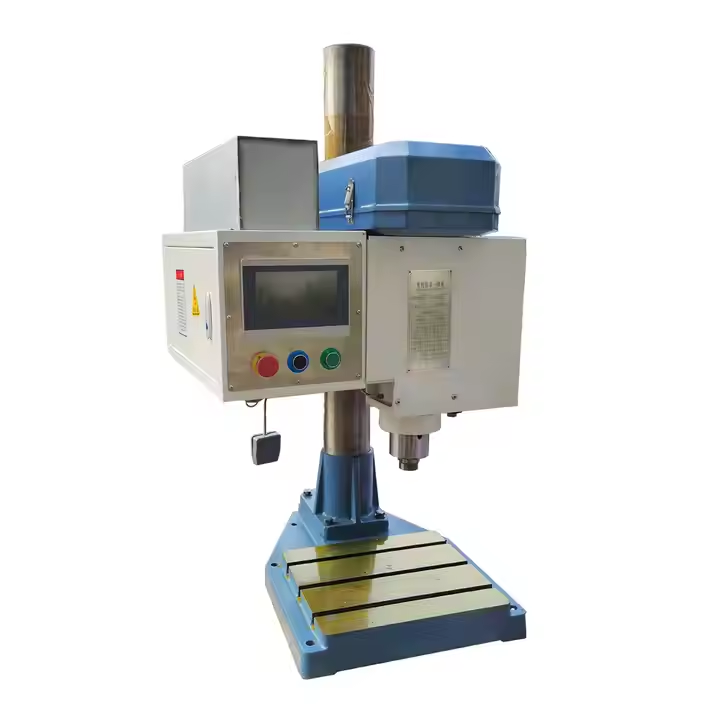

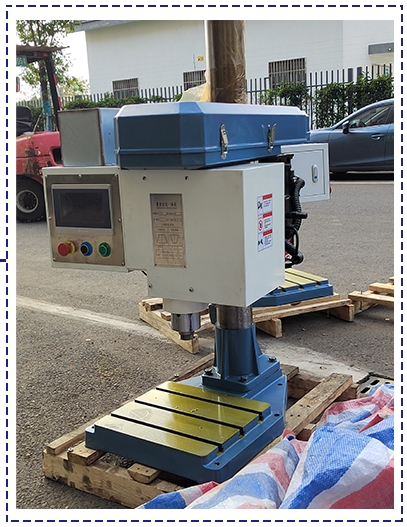

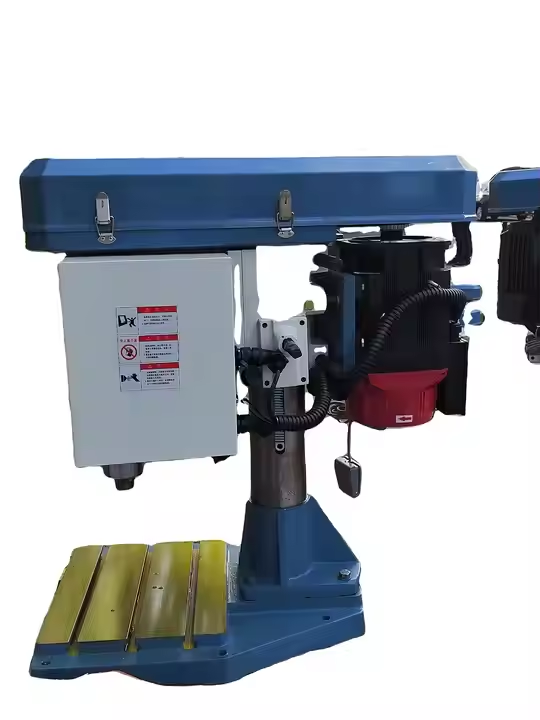

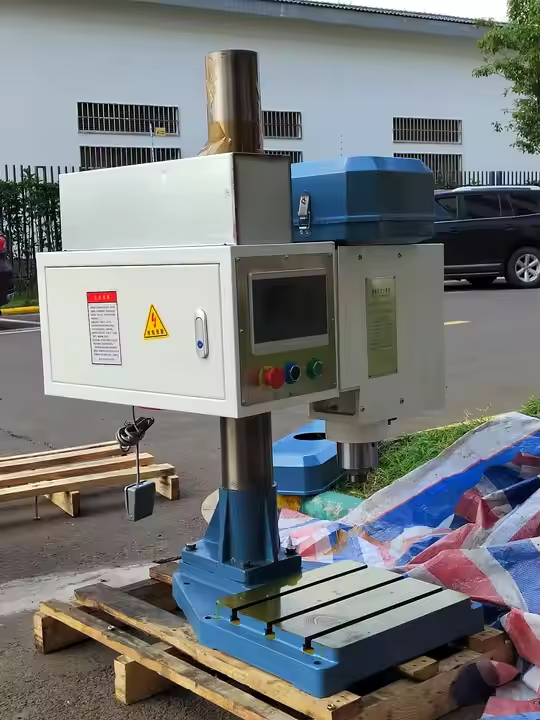

CNC Drilling Tapping Machine SCJCCN Series
| Model | SCJCCN18 | SCJCCN23 |
| Drilling/tapping ability | 16mm/M6 | 20mm/M20 |
| The spindle taper | B16 | MT2 |
| Maximum spindle stroke | 100mm | 120mm |
| Spindle speed | CVT 100-2500rpm | CVT 100-2500rpm |
| Distance between spindle end and mesa | 650mm | 600mm |
| Spindle motor power | 130-2.0KW Servo motor | 130-2.6KWxa0Servo motor |
| Z-axis feed motor power (servo) | 0.75KW | 1KW |
| The spindle diameter | 60mm | 70mm |
| Control system | PLC and touch screen | PLC and touch screen |
| Feed way | Ball screw | Ball screw |
| Weight | 250kg/175kg | 400kg/300kg |
| Volume | 880*610*1000mm | 1000*700*1400mm |

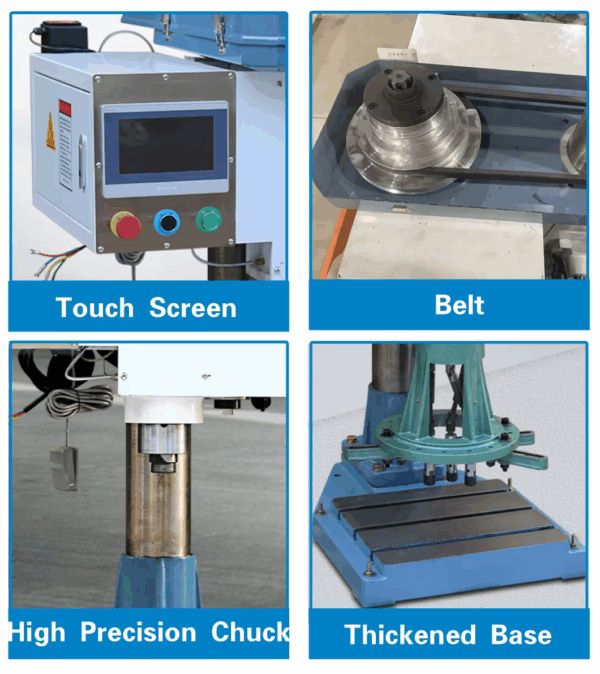

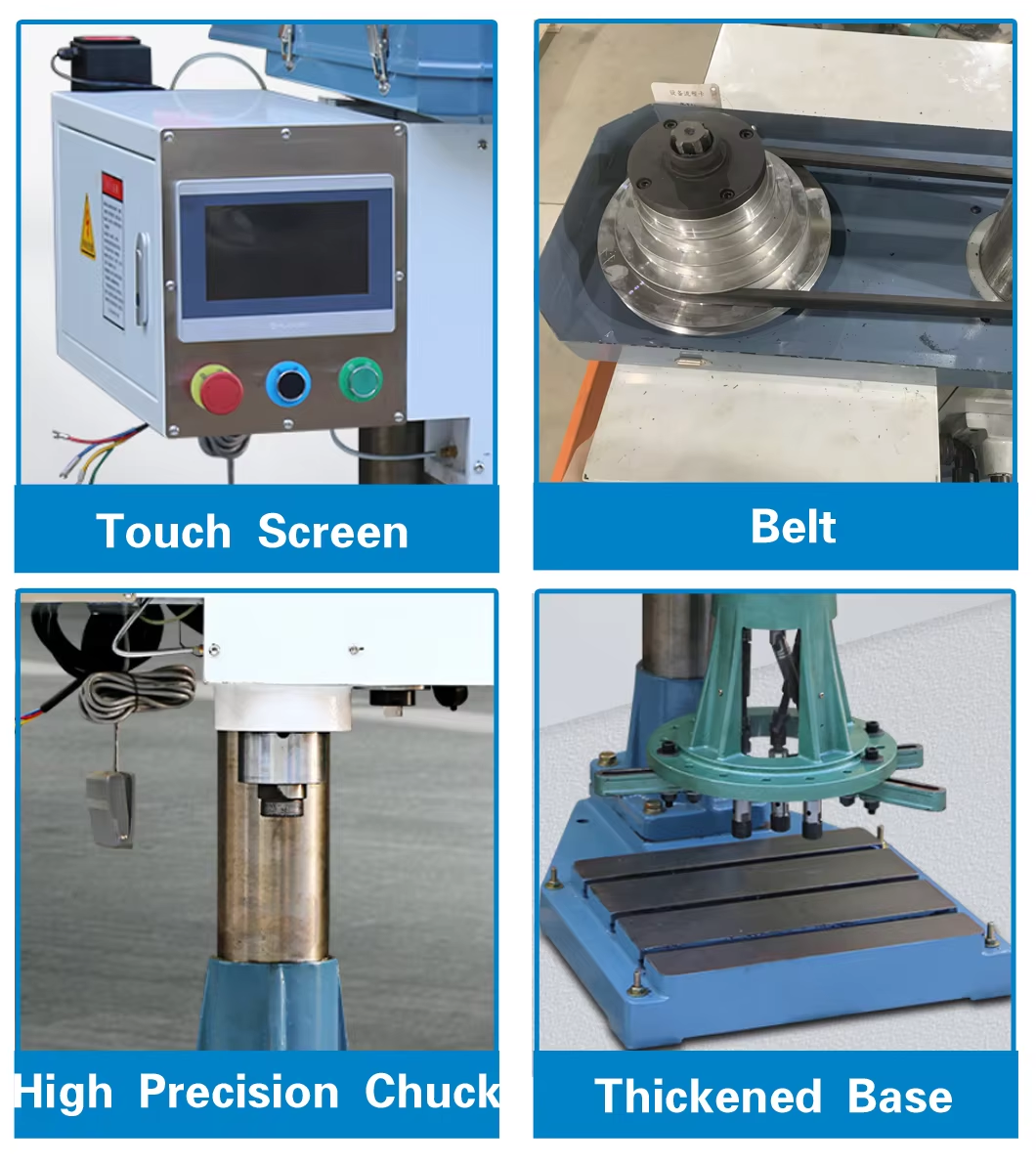

Machine Features:
2.Improve processing accuracy and stability: Drilling and tapping integrated machines usually use CNC technology, which can accurately control the depth, speed and intensity of drilling and tapping, ensuring the stability of the processing process and the accuracy of the processing results.
3.Reduce the equipment footprint: Because the drilling and tapping all-in-one machine integrates two functions, it can greatly reduce the equipment footprint compared to traditional separate equipment.
4.Reduce labor costs: The drilling and tapping integrated machine has a high degree of automation, which can reduce dependence on operating workers.
5.High safety: The integrated drilling and tapping machine has an automatic tool return and exit function during processing.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
