Description

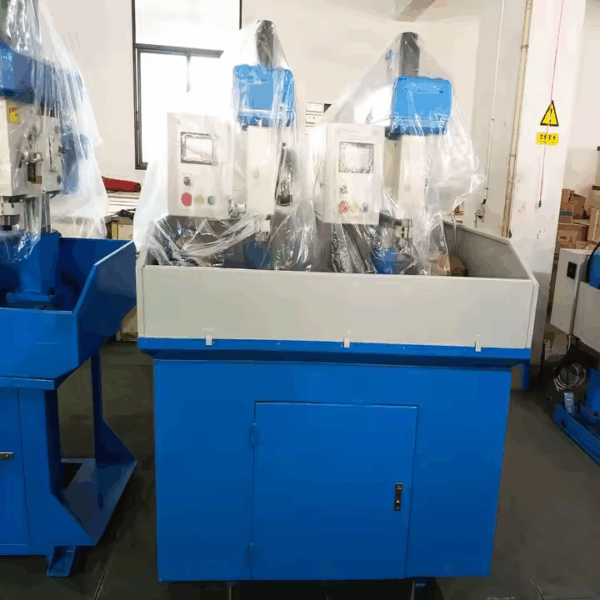

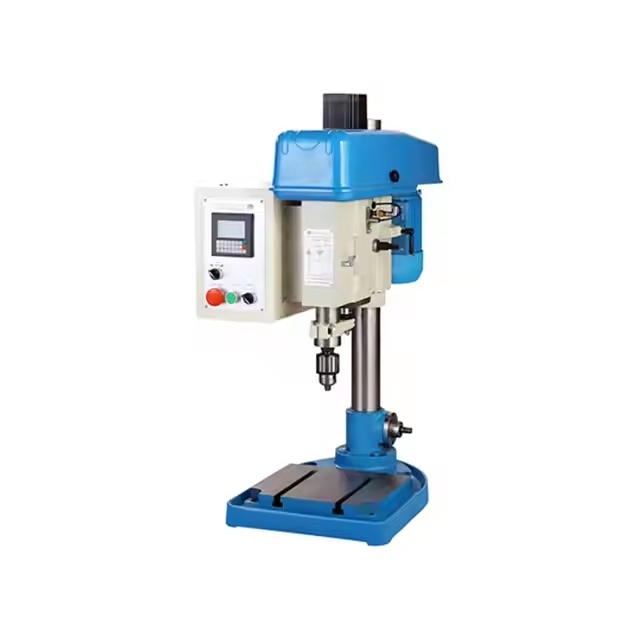

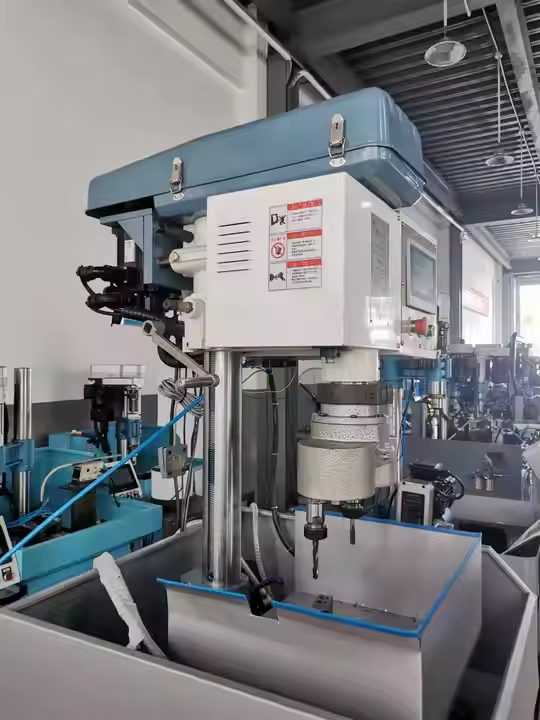

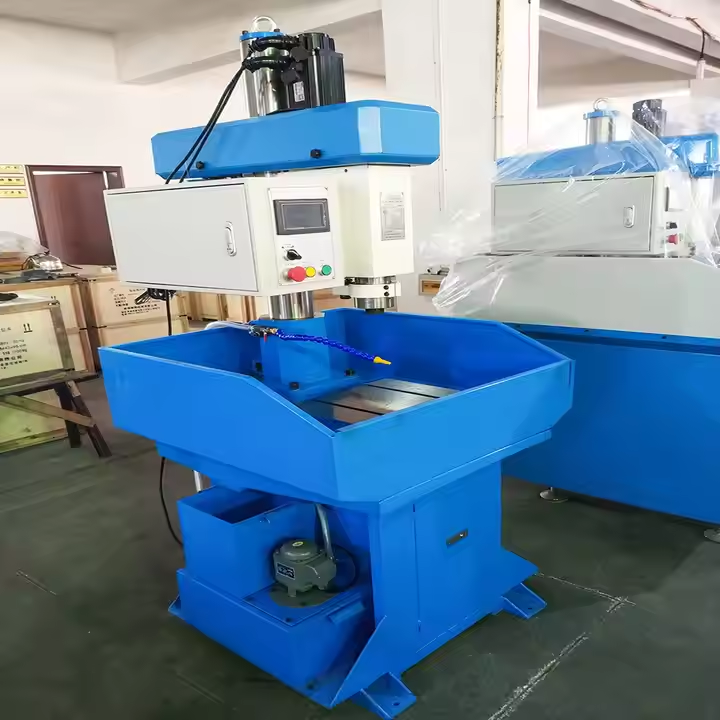

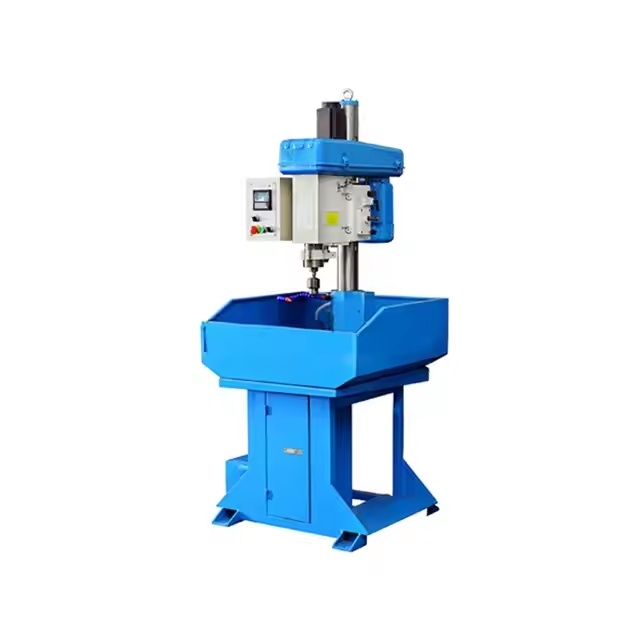

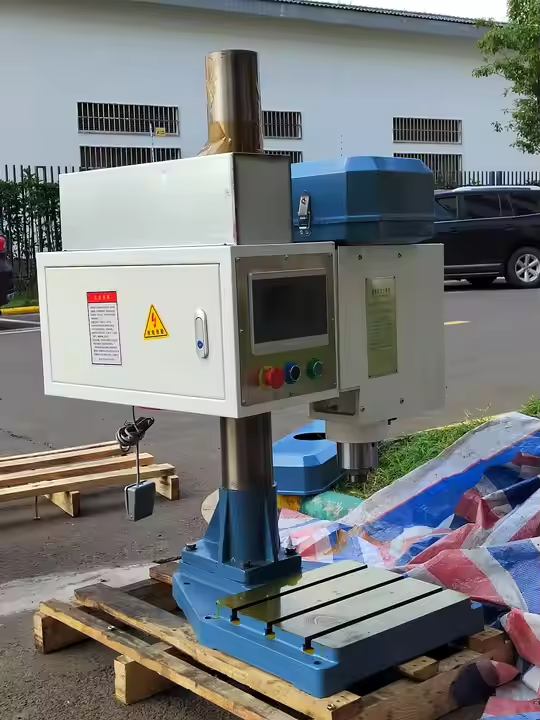

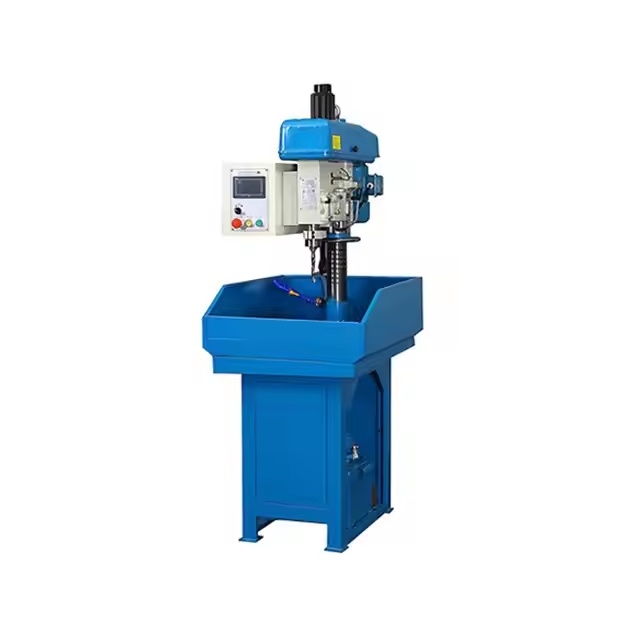

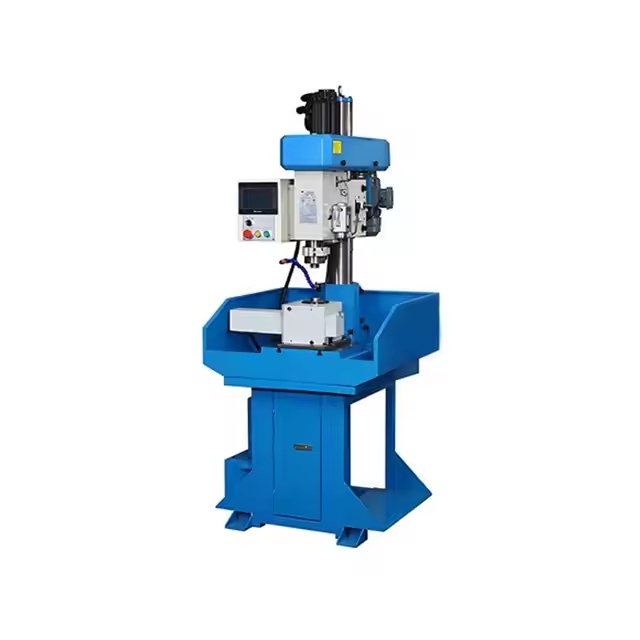

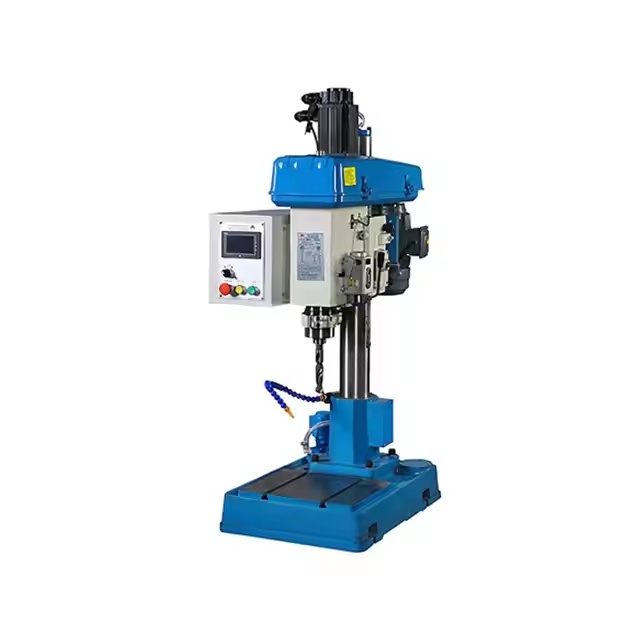

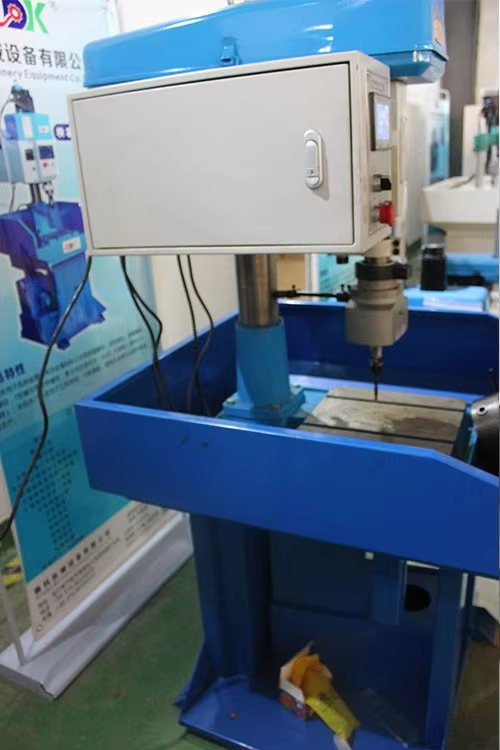

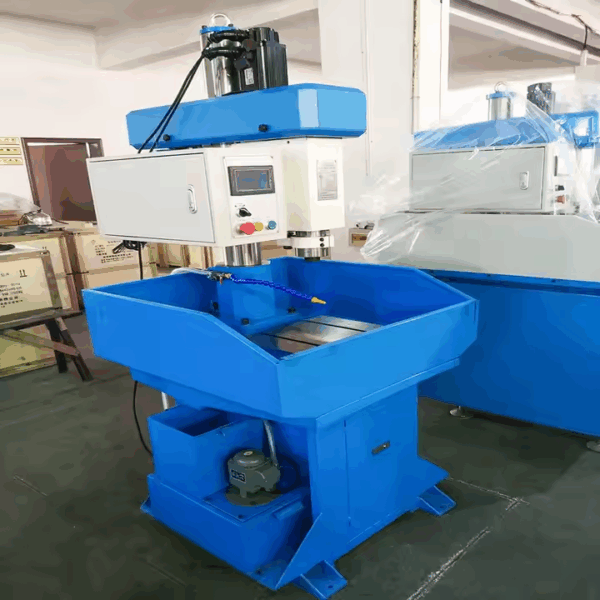

CNC Drilling Machine with Cabinet SCJCDM Series
| Model | SCJCDM12(T) | SCJCDM20(T) | SCJCDM30(T) |
| Drilling capacity(steel,iron) | 10mm/12mm | 16mm/22mm | 26mm/30mm |
| Spindle travel | 100mm | 100mm | 160mm |
| Taper | B16 | MT2 | MT3 |
| Spindle Speed | 480-3030r/min | 450-2050r/min | 480-1920r/min |
| Main spindle to working table | 140-450mm | 120-510mm | 115-645mm |
| Column diameter | 85mm | 95mm | 120mm |
| Work table | 250*300mm | 315*350mm | 310*400mm |
| Motor | 0.75kw 4p ; 0.75kw 6p | 1.5kw 4p ; 1.5kw 6p | 2.2kw 4p ; 1.5kw 6p |
| Weight(N.W./G.W.) | 120kg/180kg | 175kg/250kg | 300kg/400kg |
| Volume | 770*620*950mm ; 770*620*1800mm | 880*610*1060mm ; 880*610*1880mm | 1000*700*1370mm ; 1000*700*1970mm |

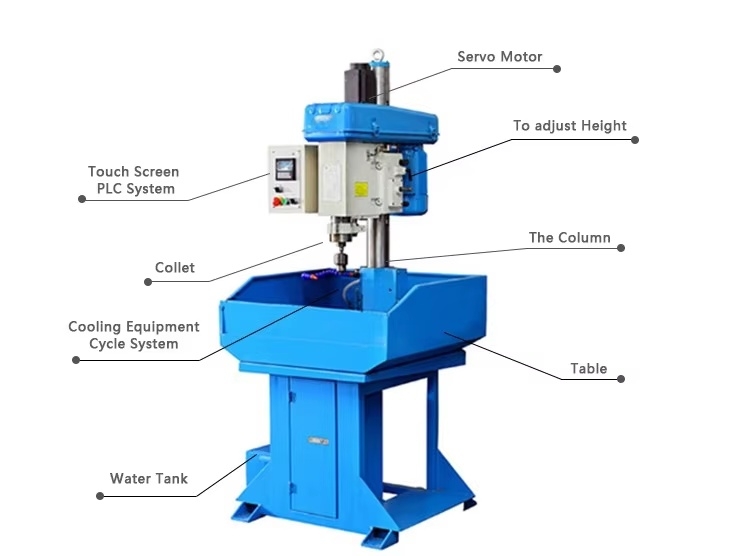

Machine Features:
1. Designed according to CNC machining center, high efficiency and high speed.
2. The wonkpiece processing time is reduced by 60%, and the processing efficiency is increased by 2-3 times.
3. Single and continuous action, time waiting setting, segment feeding, etc.
4. High precision ball screw.
5. Intelligent control, simple operation, repeatability up to 0.02mm.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
