Description

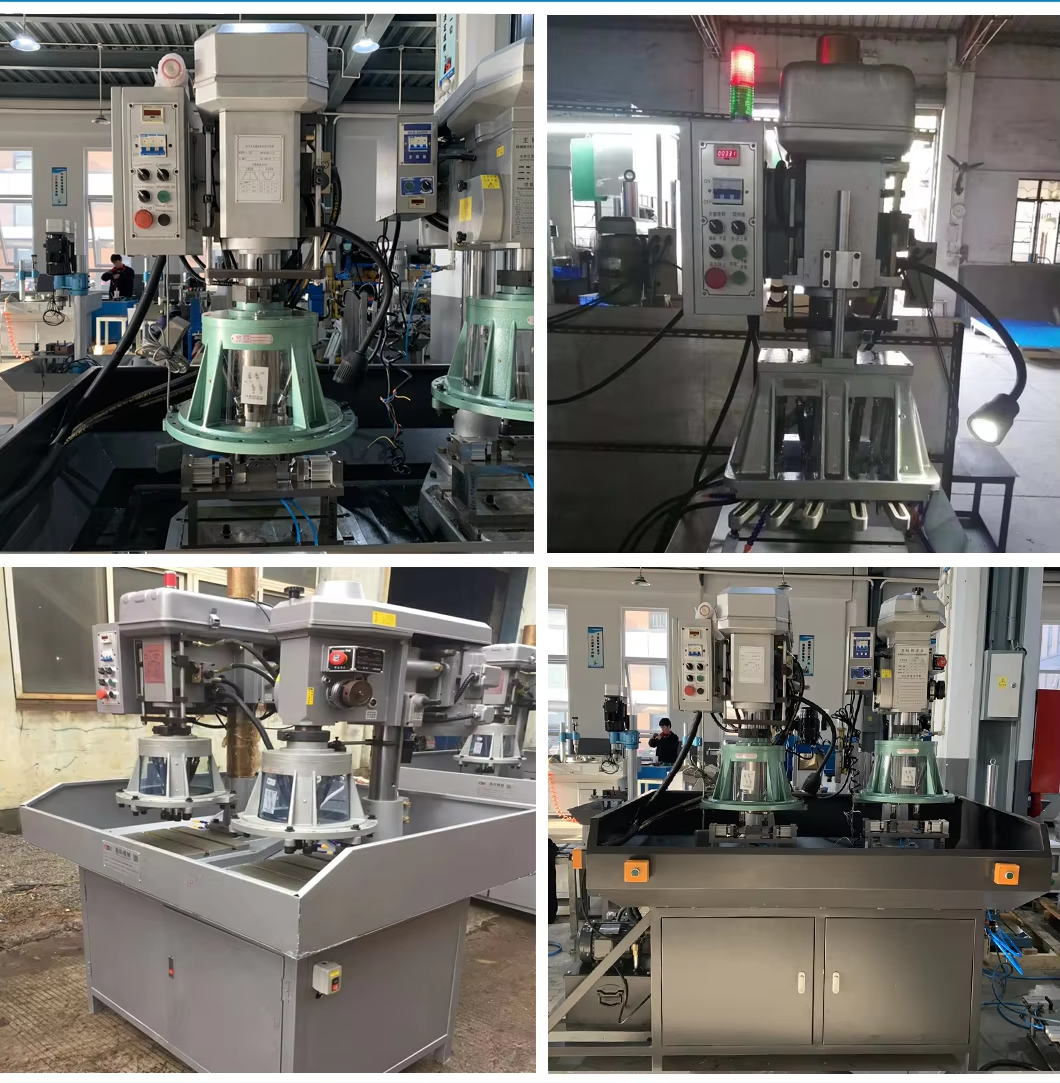

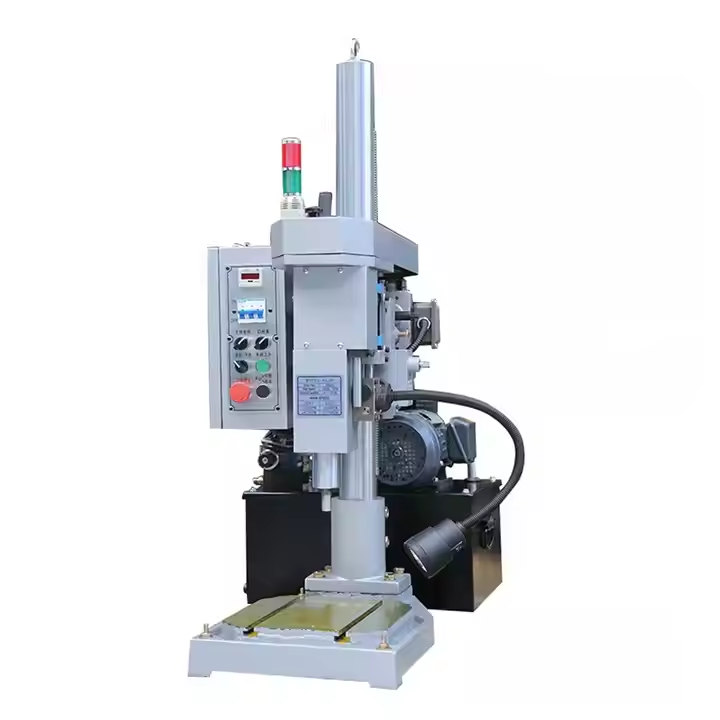

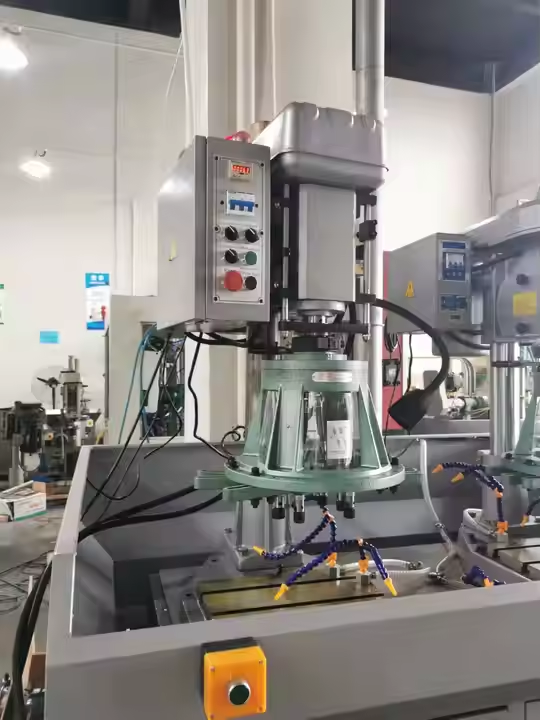

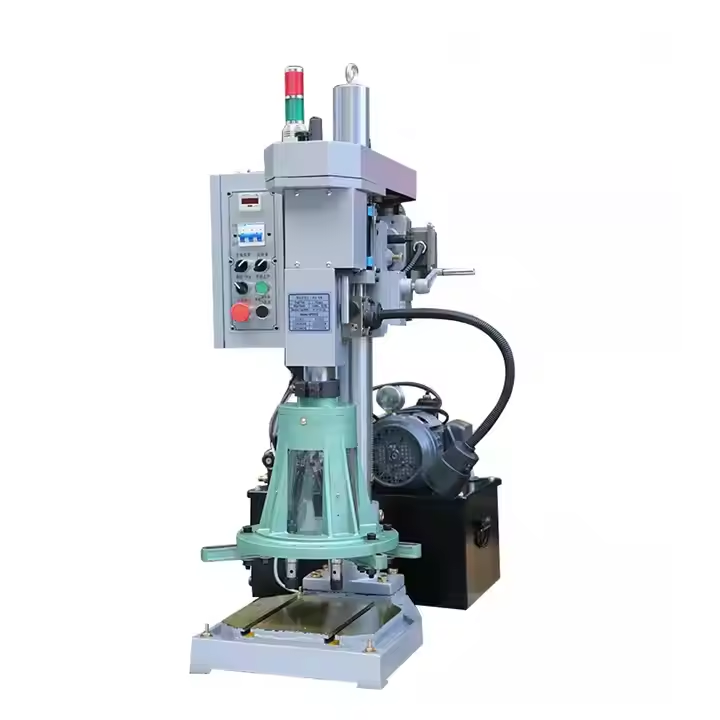

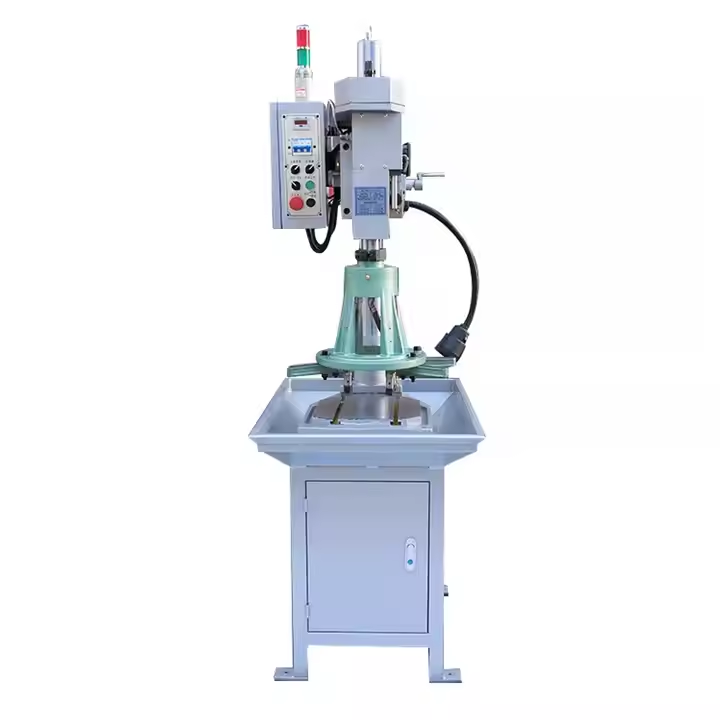

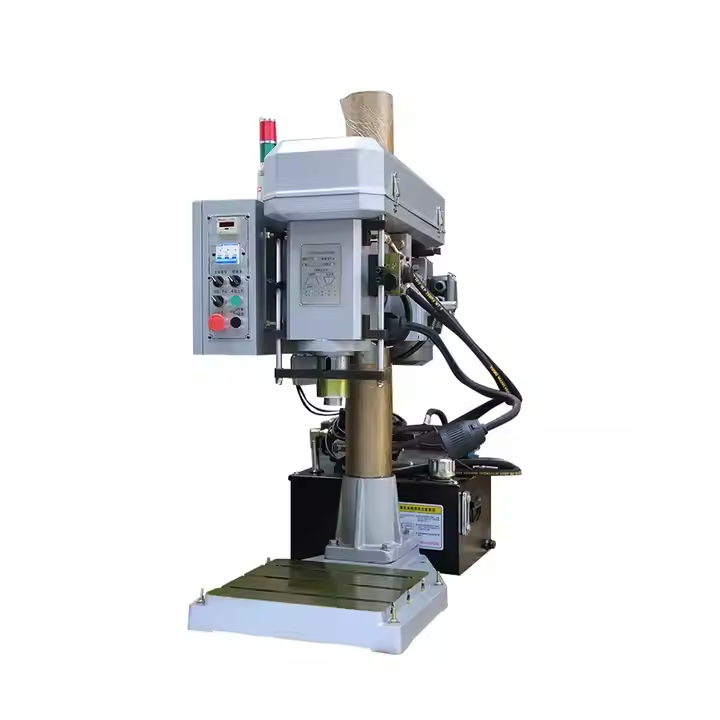

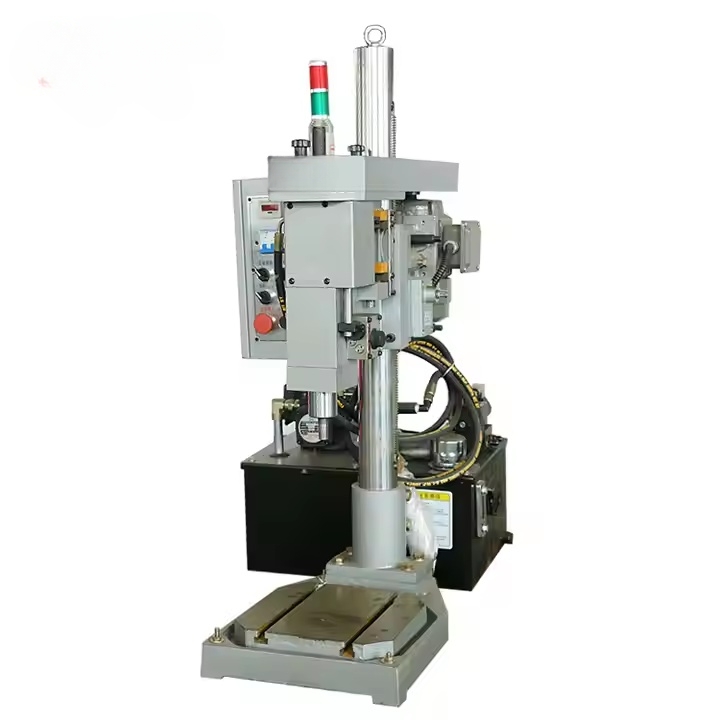

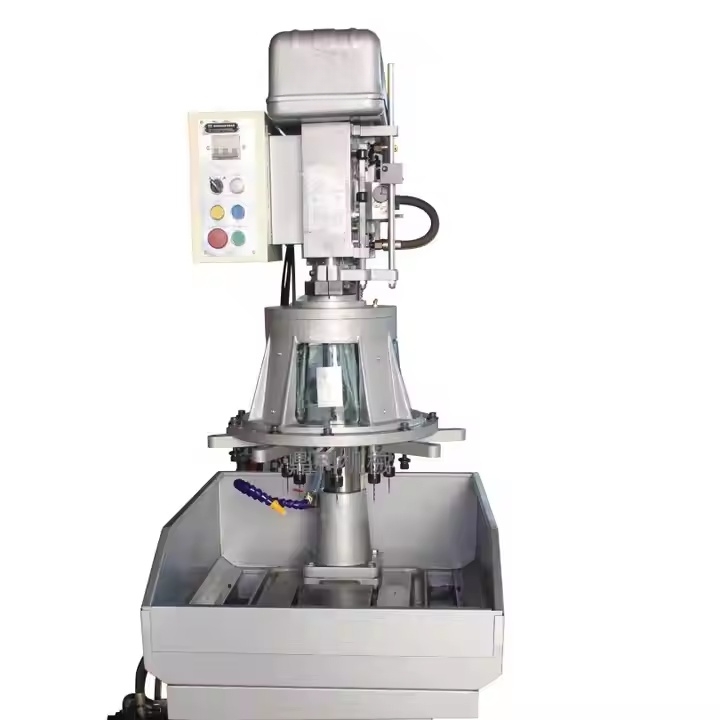

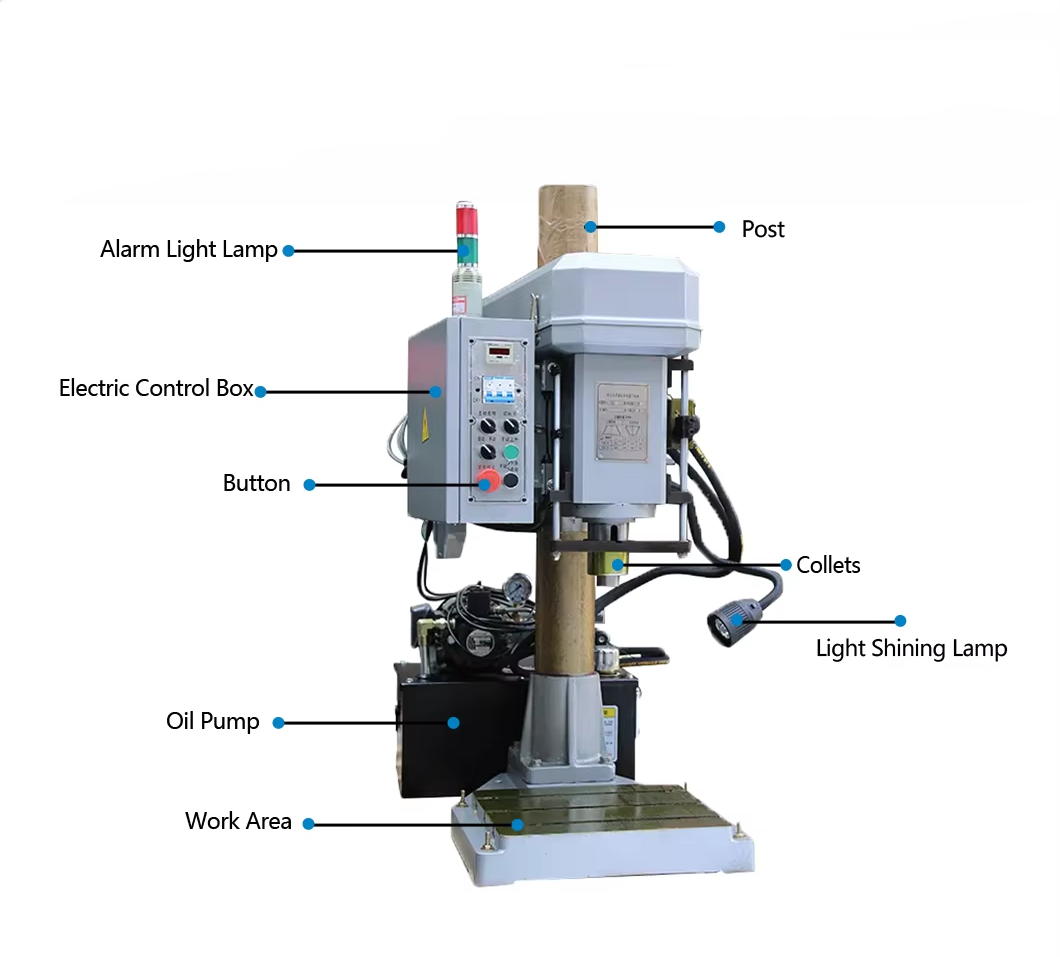

Hydraulic Drilling Machine With Multi Spindle Head Multi-axis Automatic Drilling Machine SCJHD Series
| Model | SCJHD-12(T) | SCJHD-20(T) | SCJHD-30(T) |
| Drilling capacity | 20mm | 30mm | 35mm |
| The spindle taper | MT2 | MT3 | MT4 |
| Maximum spindle stroke | 135mm | 140mm | 140mm |
| Column diameter | 65mm | 75mm | 115mm |
| Main spindle to working table | 600mm | 450mm | 700mm |
|
Spindle speed
|
500-1800r/min
|
400-1200r/min
|
480-720r/min
|
| Table size | 370*400mm | 370*400mm | 370*400mm |
| The motor | 0.75kw/4p | 1.5kw/4p | 2.2kw/6p |
| Voltage | 380V | 380V | 380V |
| Frequency | 50HZ | 50HZ | 50HZ |
| Weight | 350kg/320kg | 430kg/400kg | 550kg/500kg |
| Volume | 650*300*820mm| | 700*350*820mm | 1000*800*1700mm |
Machine Features:
● Automatic remove chip special function purchase.
● It adopts oil pressure section feeding and drilling, especially suitable for deep hole, stainless steel and other processing conditions.

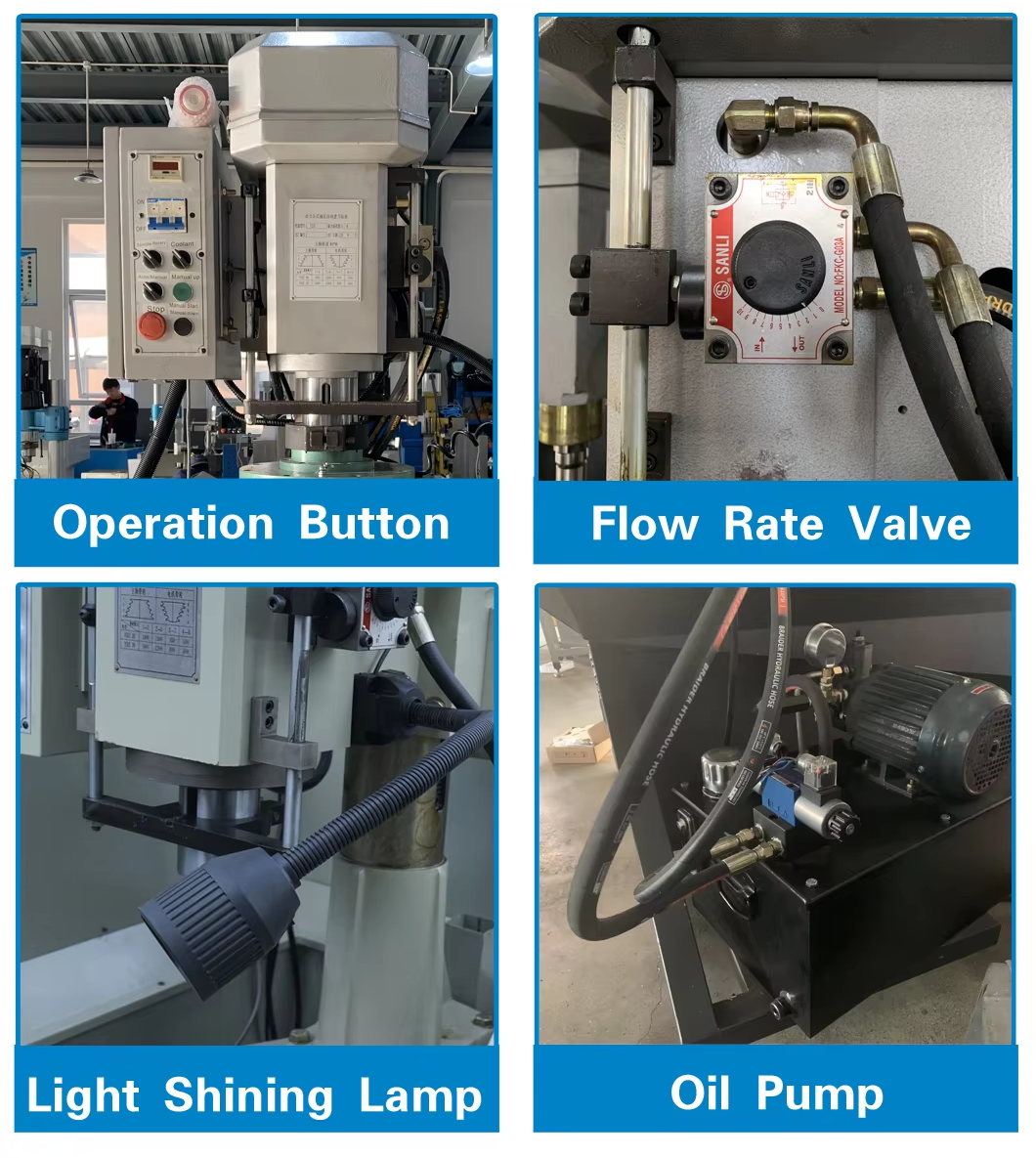

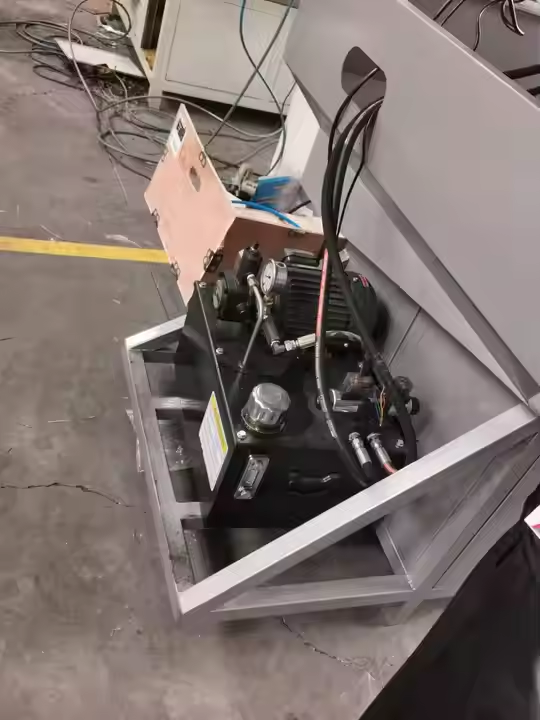

● Machine feed and retreat with hydraulic power, perfect processing stability.

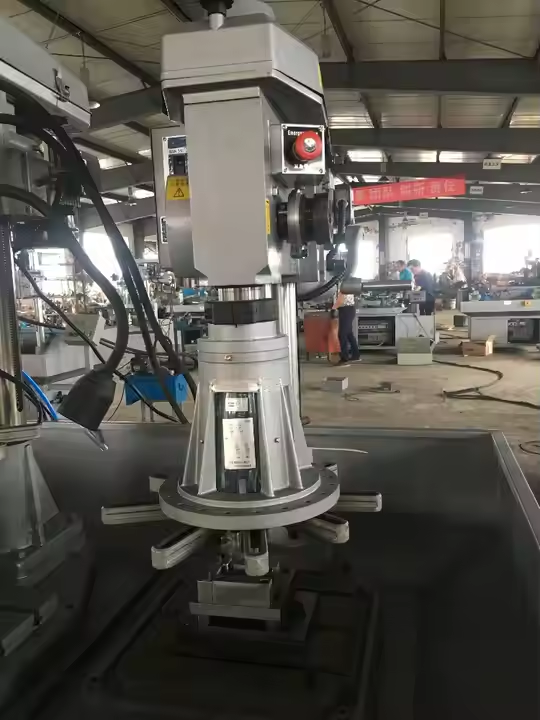

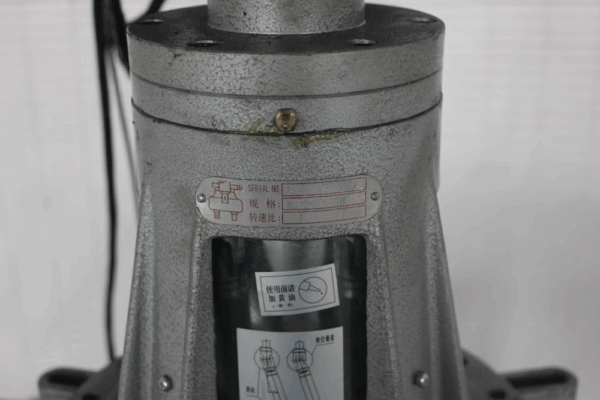

● Cooperate with medium and large multi-spindle head to process according to various conditions to avoid the disadvantage of unstable air pressure and make the product quality more stable.
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
