Description
Advantages And Highlights:

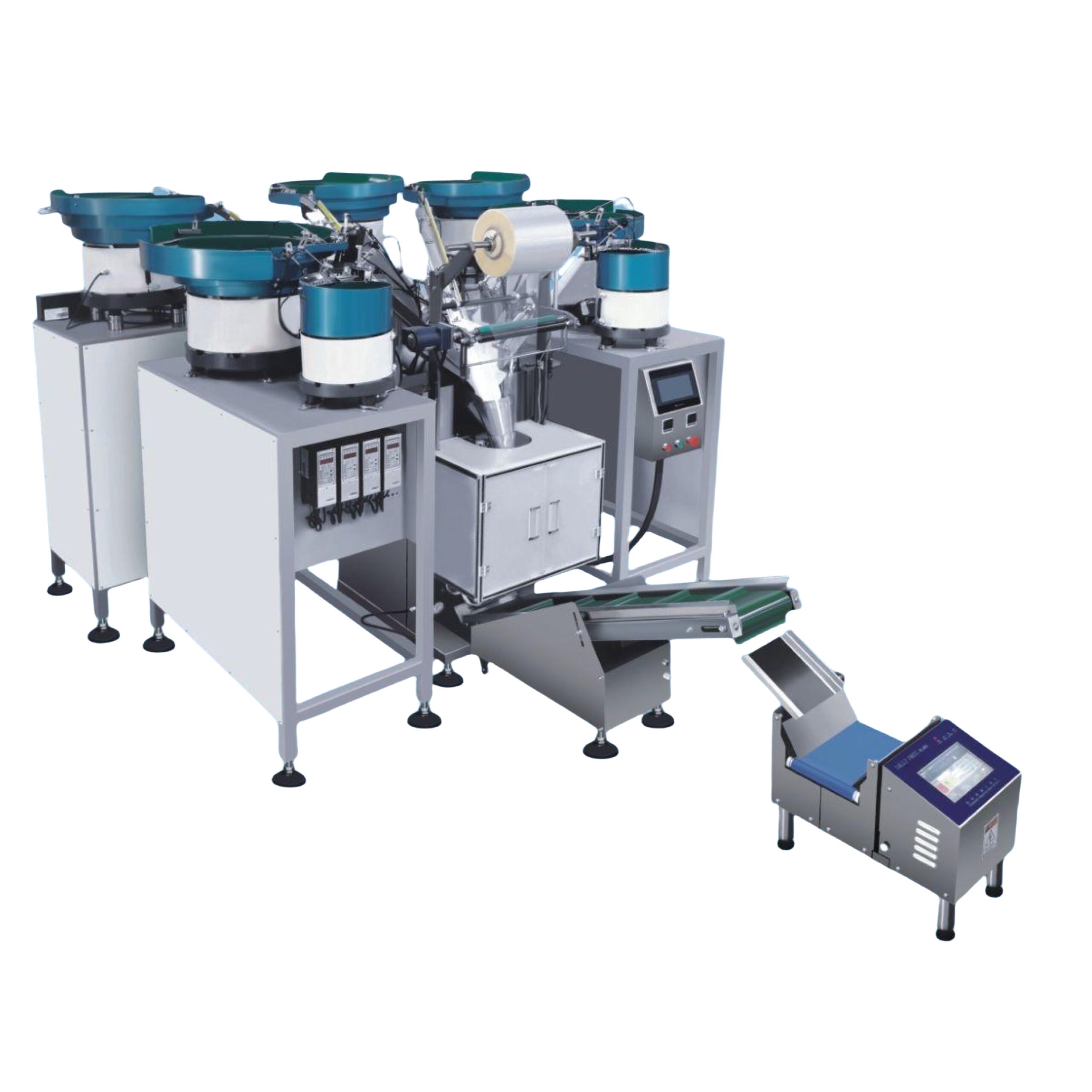

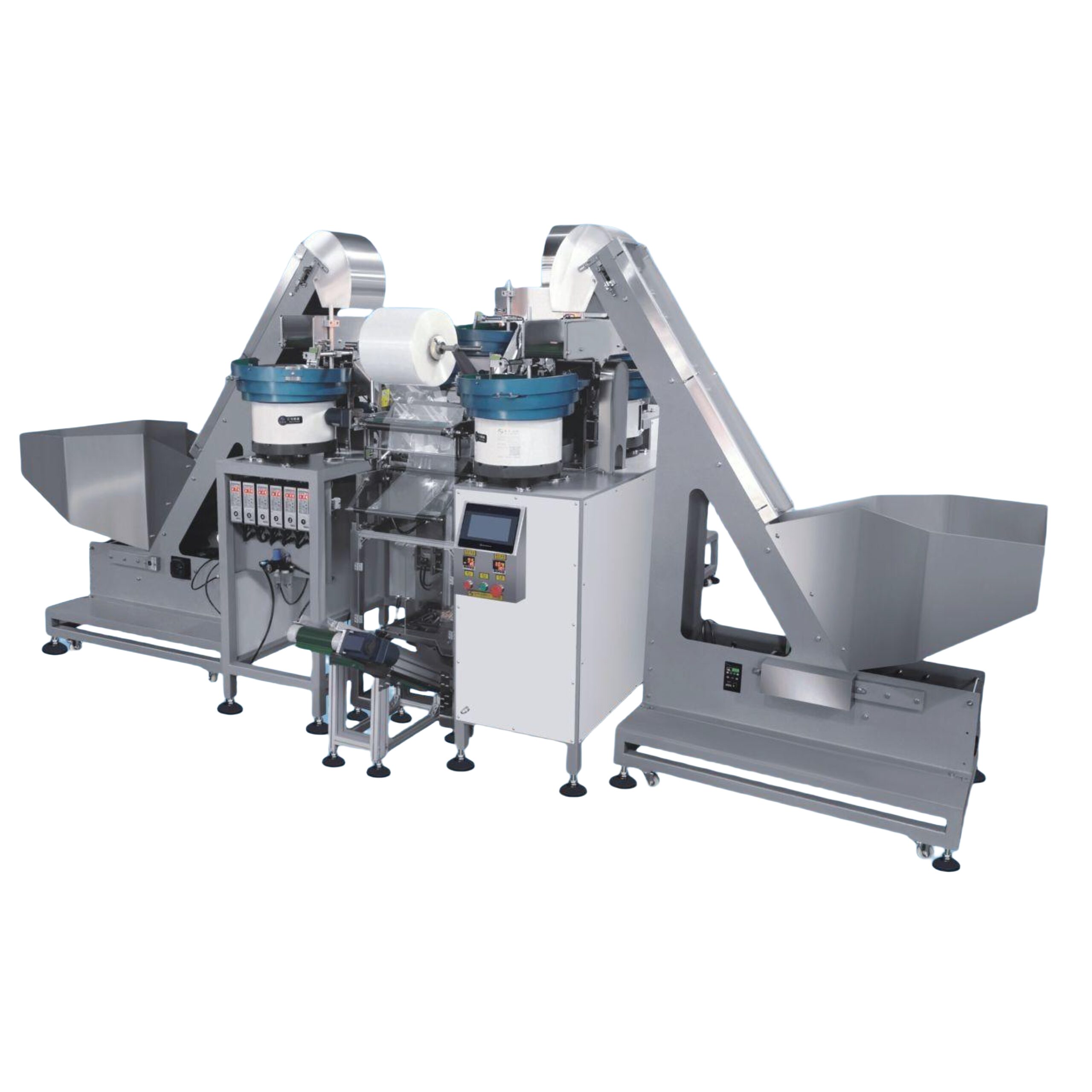

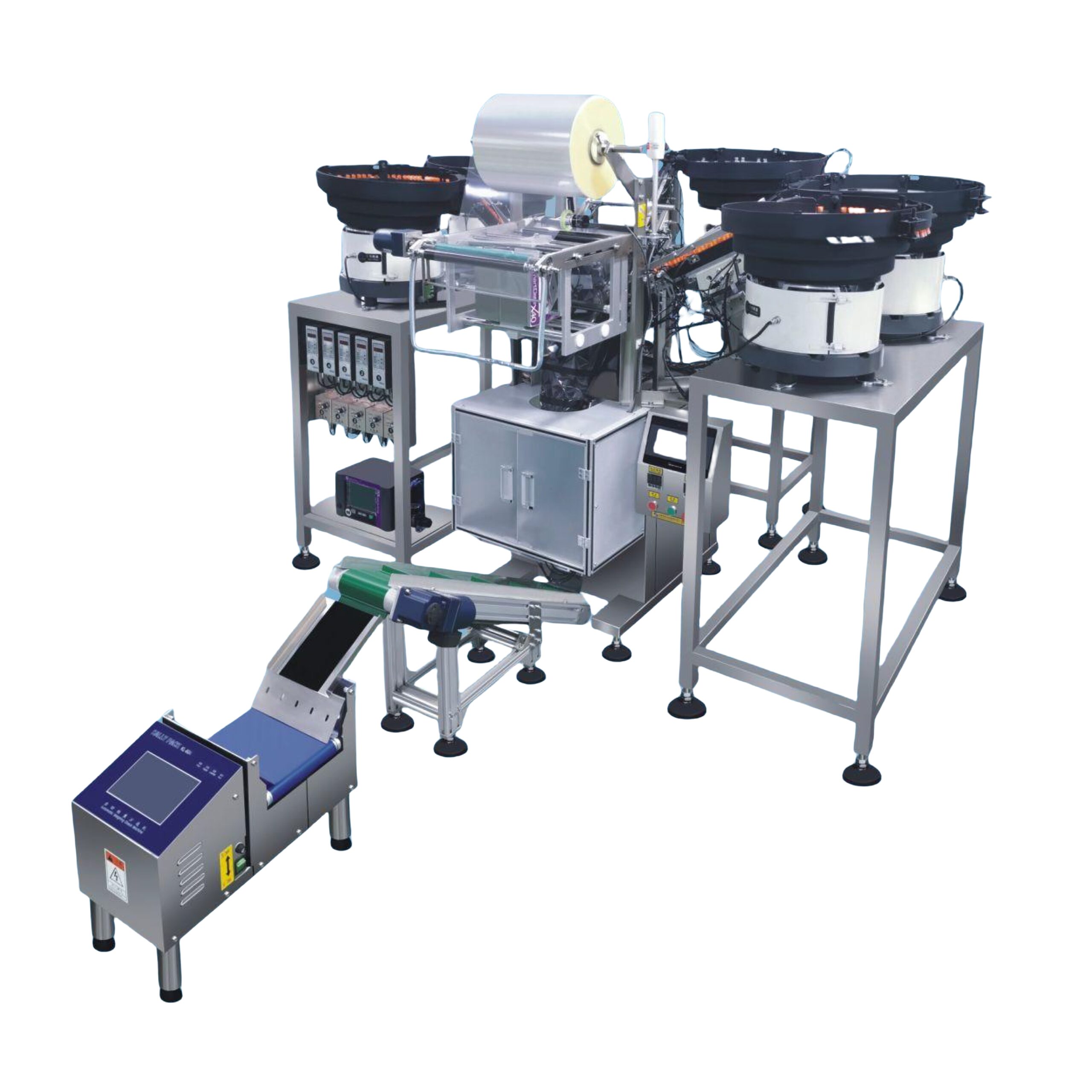

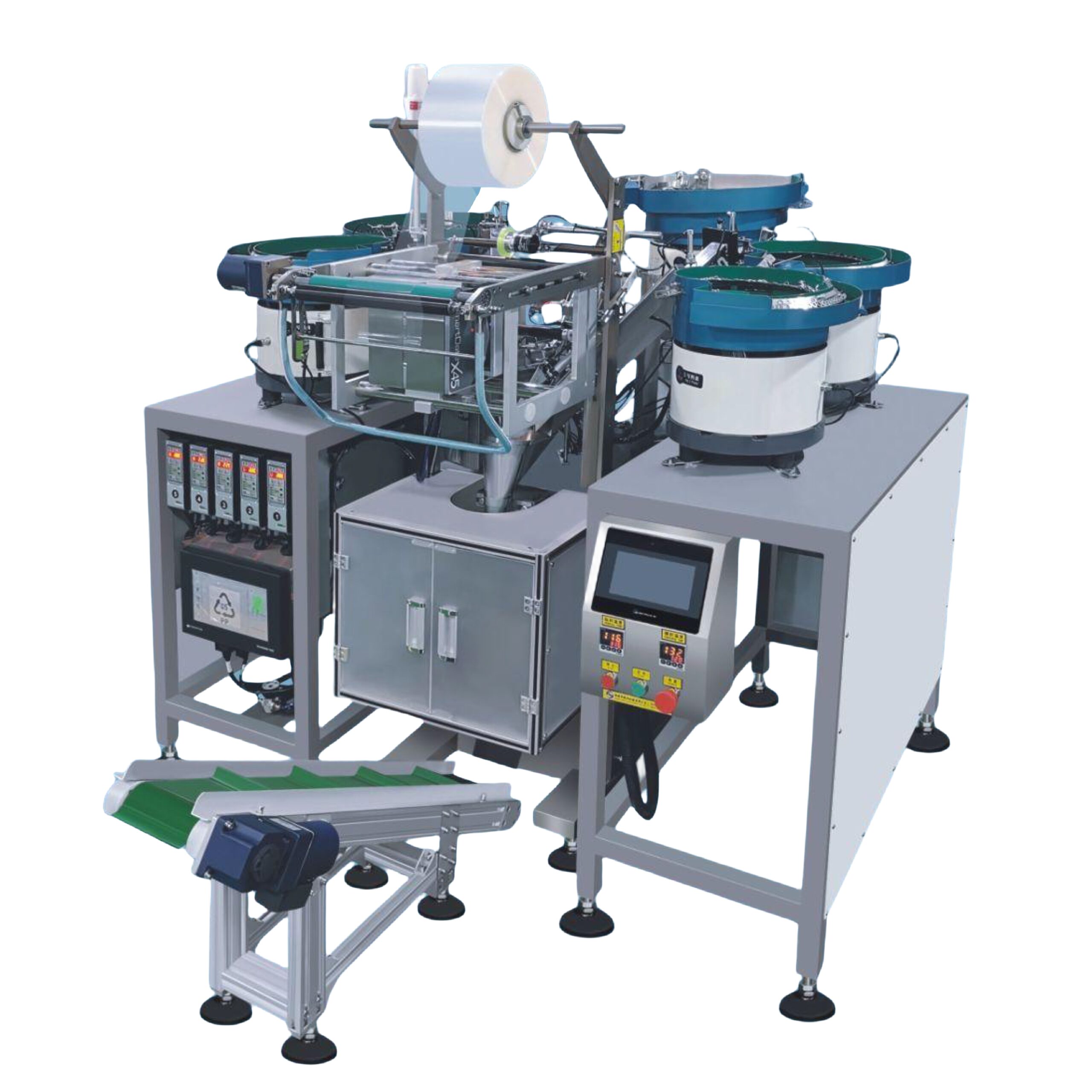

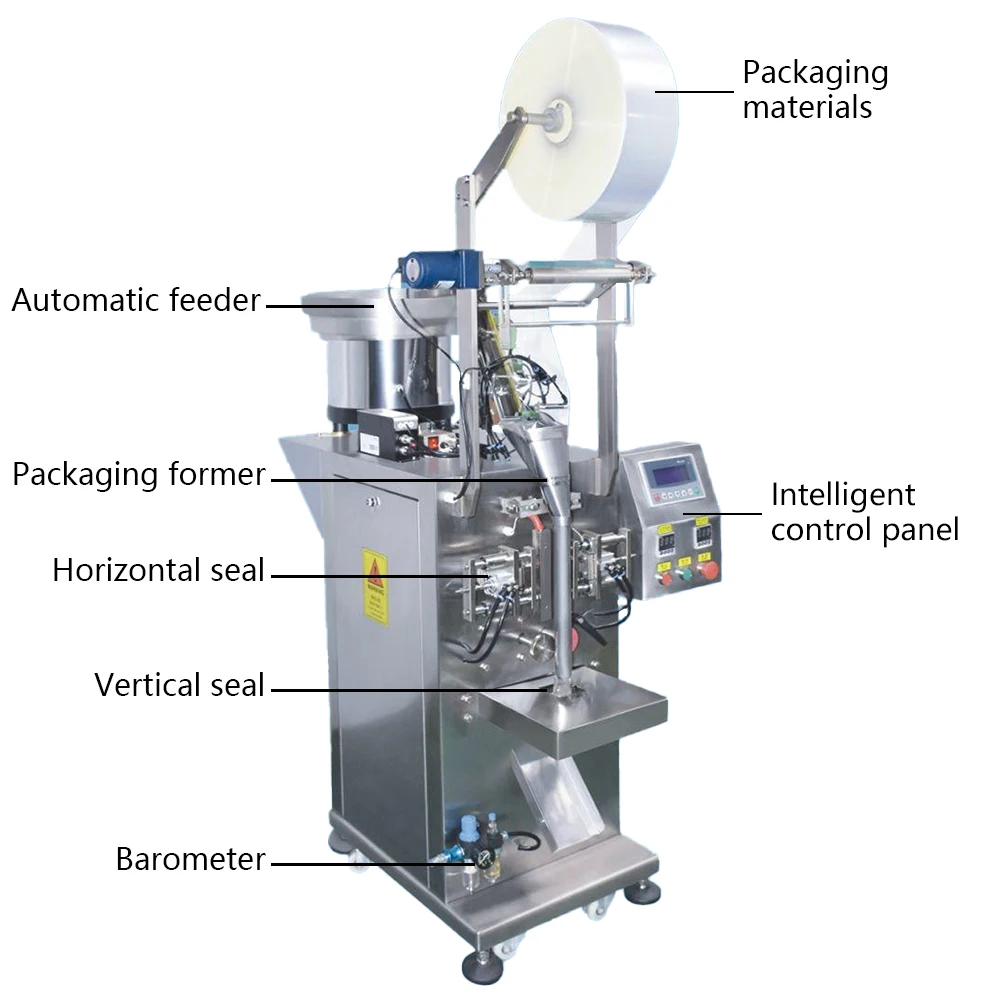

The packaging machine is an automated packaging equipment widely used in food, medicine, daily chemicals, chemicals and other industries, which can be easily operated by PLC control system. Firm sealing, smooth and elegant bag shape, high efficiency and durability are the preferred elements. Automatic ordering, counting, packaging and printing can be provided. Equipped with exhaust device, printer, labeling machine, transfer conveyor and weight checker to make it better. Its characteristics are mainly reflected in the following aspects: 1. Stepper motor control, bag length can be set and cut in one step, saving time and film. 2. Interface function setting is simple and fast and operation. 3. Self-fault diagnosis, clear fault display. 4. High-sensitivity photoelectric eye color tracking, numerical input of cutting and sealing position to improve accuracy. 5. Temperature-independent PID control, more suitable for packaging different materials. 6. Positioning stop function, no sticking knife or wasting film. 7. Intelligent temperature control, firm sealing, exquisite packaging 8. Tailor-made, weight guaranteed to be correct. 9. Multi-purpose packaging, suitable for various packaging of similar products.
Automatic loading and unloading

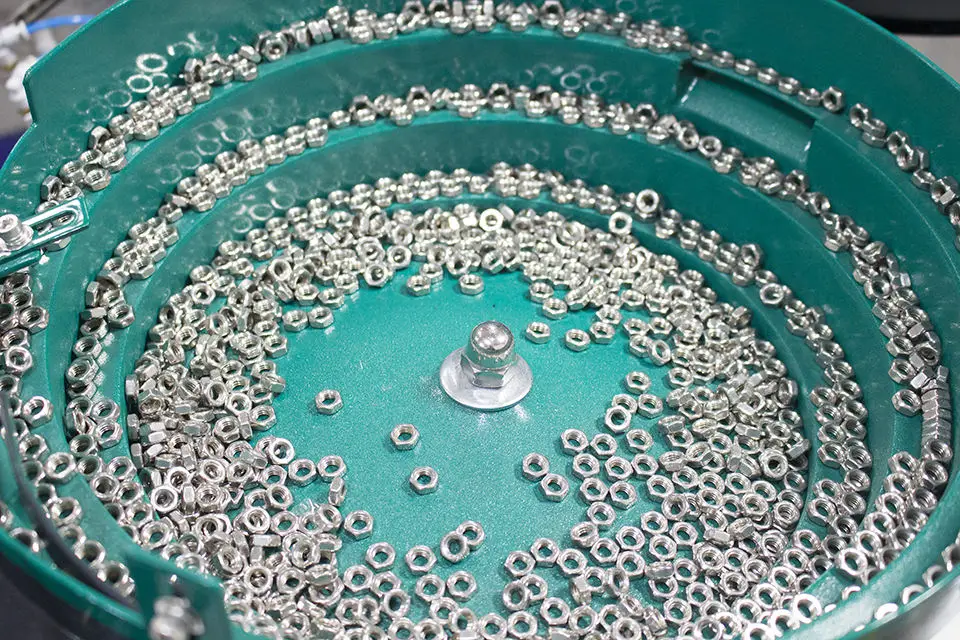

Vibrating bowl with high-precision counting device can realize automatic feeding and improve efficiency

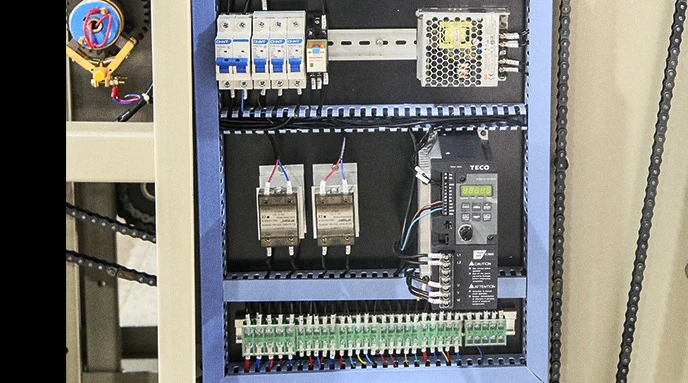

PLC control system
PLC program control offer logical intelligent & accurate control function.

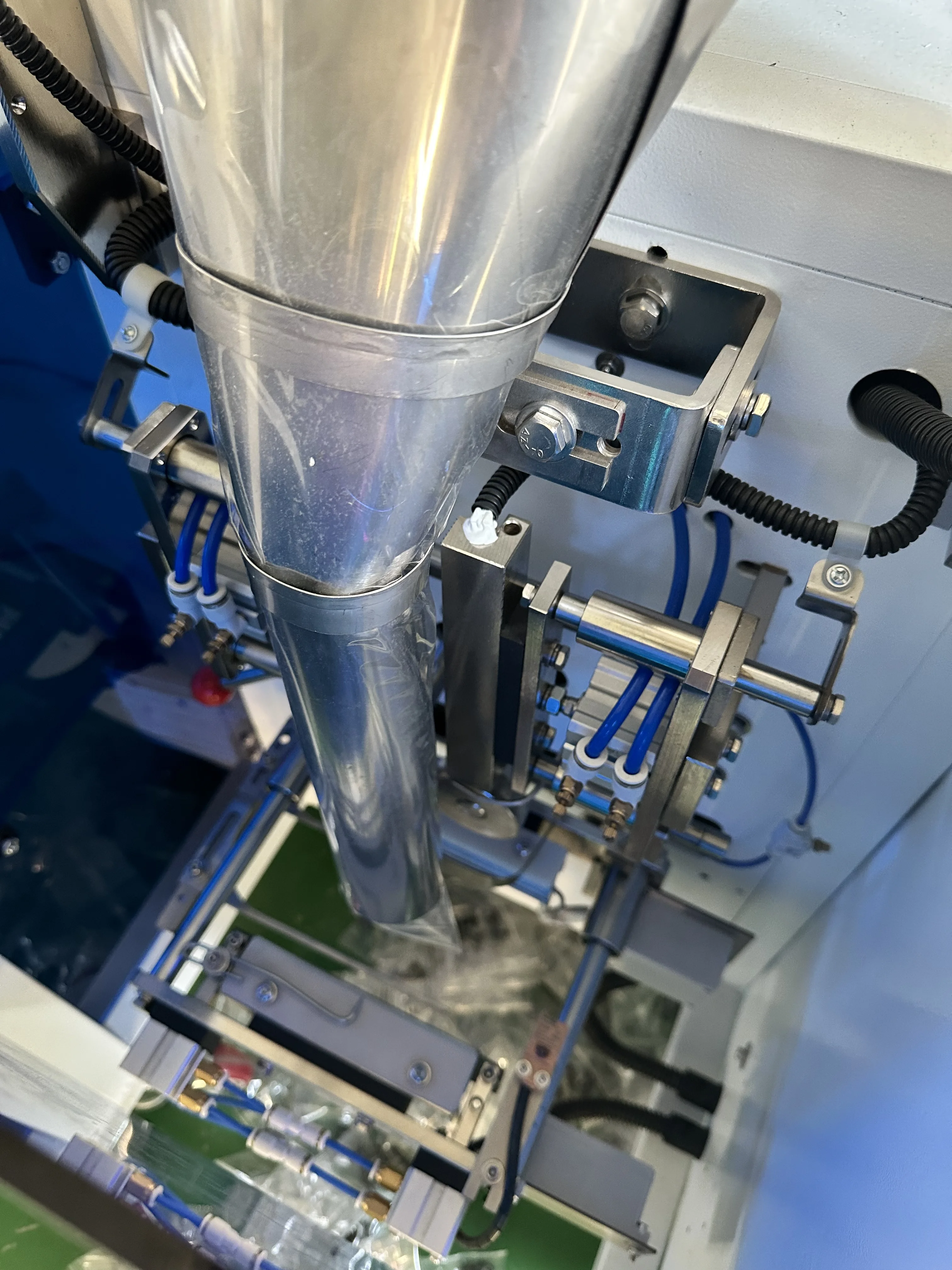

Forming bag
1. Food grade stainless steel bag making machine
2. Articulated bag structure, which makes the bag forming stable and forms a perfect bag shape. Designed according to the thickness of the film. Helps the film to go on smoothly.
3. Flexible packaging of bags of different sizes. Easy to change.
4. Customization of bags of different sizes used to be very suitable for small businesses.
Specification
| Product Parameters | |||||
| SCJ-DK420P1 | SCJ-DK420P2 | SCJ-DK420P3 | SCJ-DK420P4 | SCJ-DK420P5 | |
| Packing specification | single type items | 1-2 type of packing items | 1-3 type of packing items | 1-4 type of packing items | 1-5/6 type of packing items |
| Counting range | One size 1-10pcs/bag(adjustable) |
Each size 1-10pcs/bag(adjustable) |
Each size 1-10pcs/bag(adjustable) |
Each size 1-10pcs/bag(adjustable) |
Each size 1-100pcs/bag(adjustable) |
| Packing width | 20-90mm | 20-90mm | 20-90mm | 20-90mm | 20-150/200/250mm |
| Packing length | 40-100mm/180mm | 40-100mm/180mm | 40-100mm/180mm | 40-100mm/180mm | 40-180mm (Adjustable length) |
| Packing speed | 1-120Bag/min (Depending on the amount of packaging) |
1-110Bag/min (Depending on the amount of packaging) |
1-100Bag/min (Depending on the amount of packaging) |
1-90Bag/min (Depending on the amount of packaging) |
1-60Bag/min (Depending on the amount of packaging) |
| Total power | 1.5KW/220V (Depending on the amount of engineering) |
1.8KW/220V (Depending on the amount of engineering) |
2.2KW/220V (Depending on the amount of engineering) |
2.5KW/220V (Depending on the amount of engineering) |
3.0KW/220V (Depending on the amount of engineering) |
