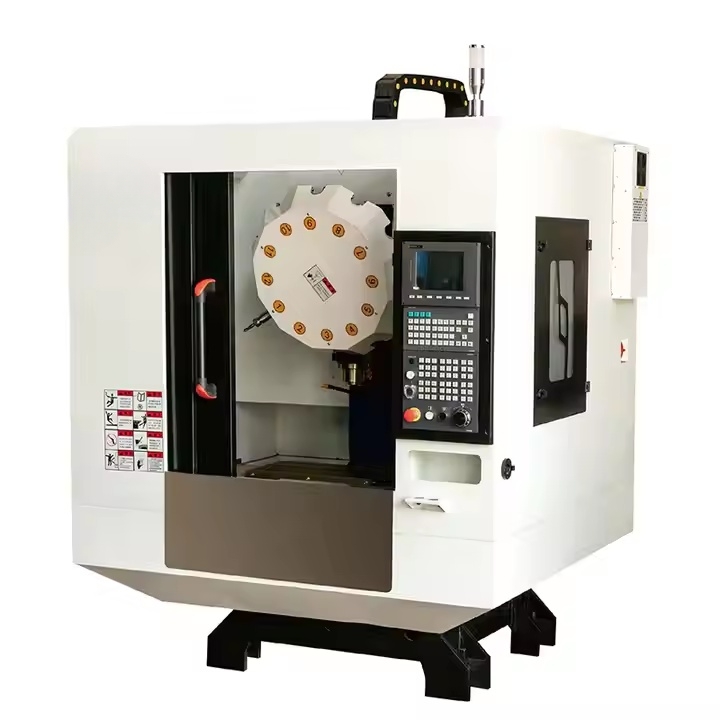

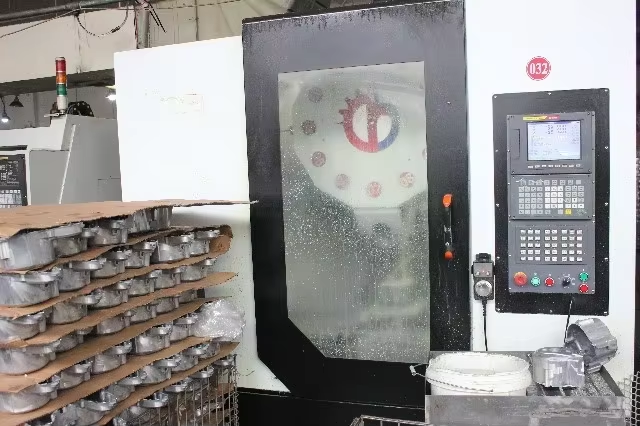

ODM Vertical CNC 3 Axis Milling Machine Center SCJT500-12T Vertical Milling Machining Center
Main Characteristics:

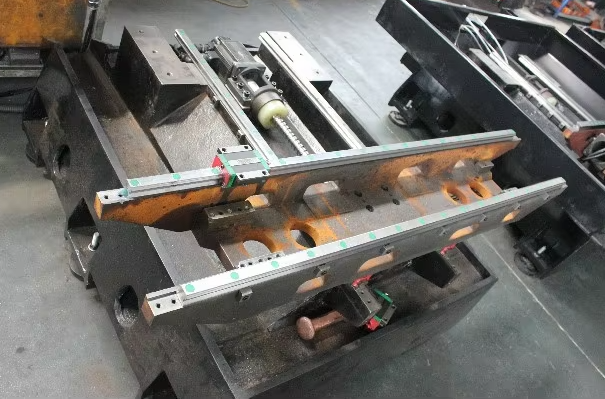

1. The machine tool blank is precision casted with resin sand, with large span herringbone column for stablesupport, and after the second artificial aging treatment to ensure the rigidity ofthe machine tool.
2. lt can be equipped with optional fourth axis, Taiwan New Generation system, center water outlet, etc. it iswidely used.

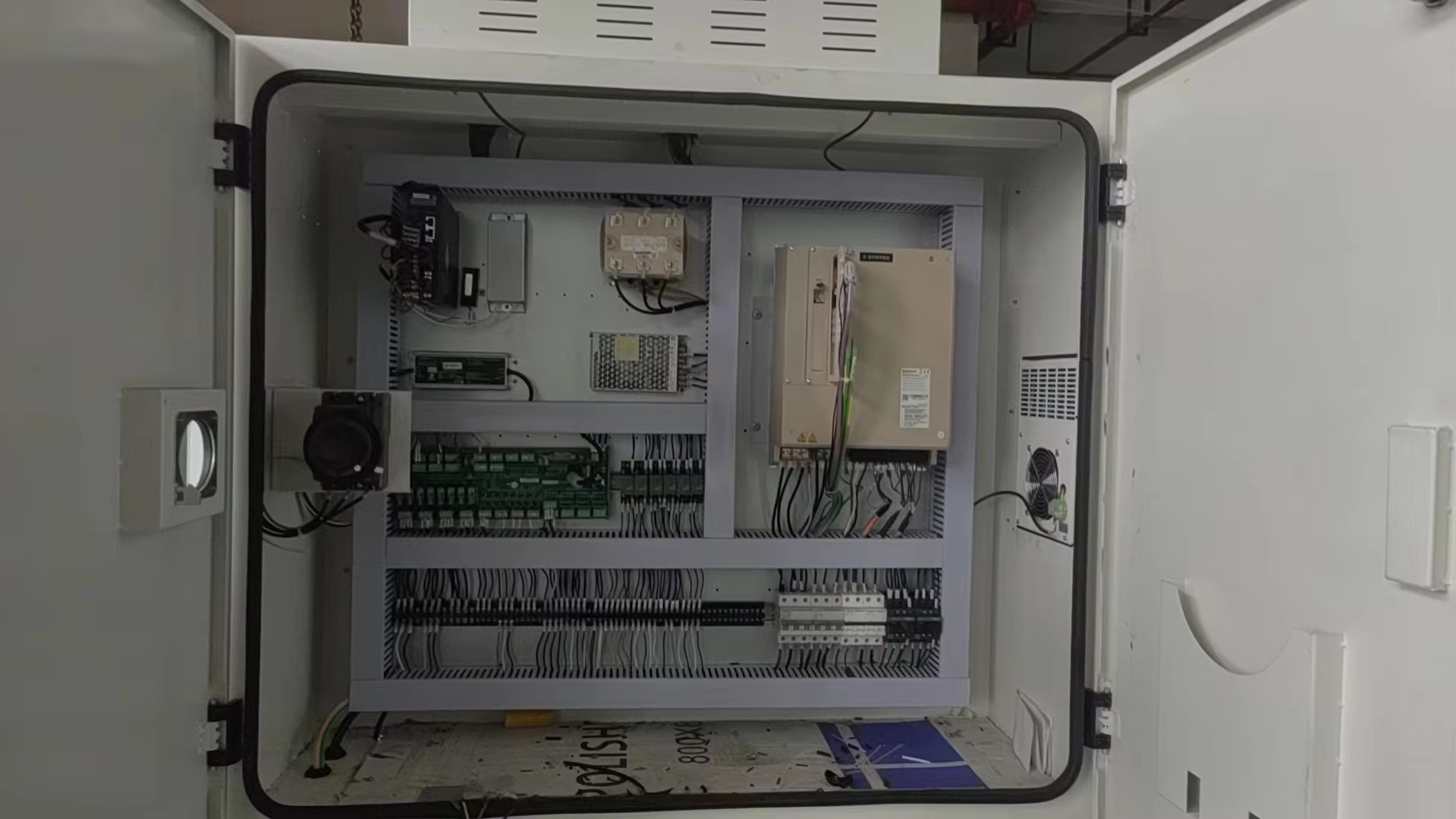

PRODUCT INTRODUCTION:

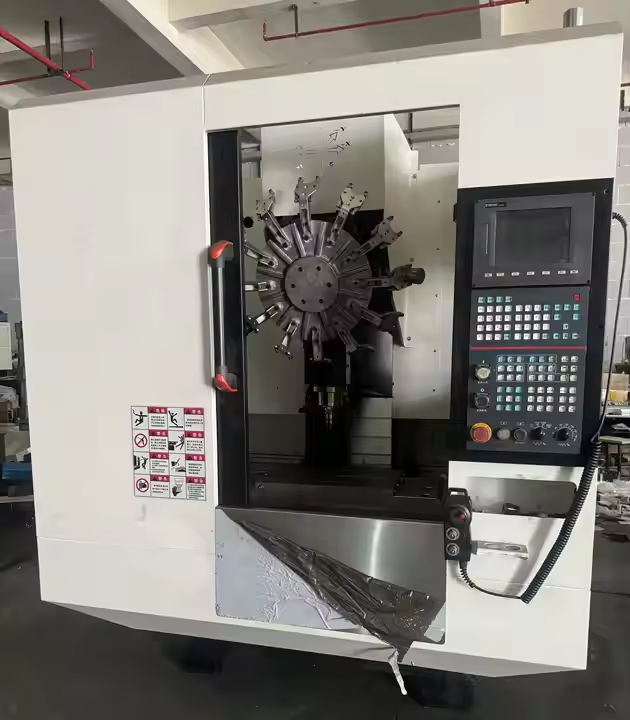

1. Adopting servo tool magazine, which can select tool arbitrarily, highlyefficient and quick.
2. Adopting high rigidity spindle motor, mainly used for drilling and tapping ofsteel parts, cast iron parts and copperand aluminum parts and othermaterials, as well as light load milling processing, with strong versatility andexcellent performance.
4-axis: On the basis of three axis, a rotary axis is added to realize multi-facemachining by rotating, which reduces the number of clamping timesand improves the machining efficiency.
5-axis: In fact, on the basis of the 3-axis, two rotary axes are added, which can be used for machining any surface other thanthe fixed surface of the workpiece.
Product Applications

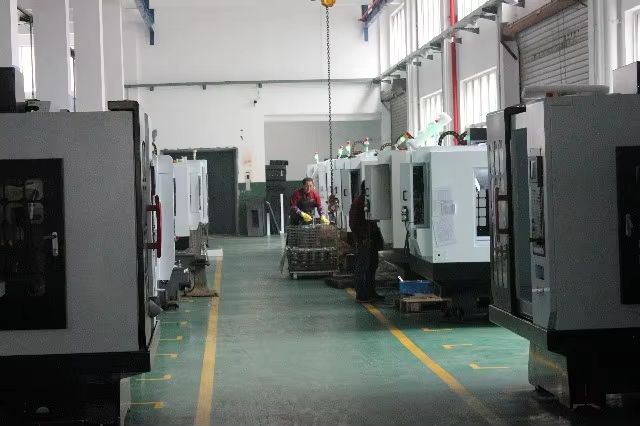

Our products are widely used in metal process, automobile and motorcycle bicycle processing, hardware, electronics, zinc-aluminum casting,furniture, energy equipment, aerospace industry, electronic power tools and other dozens of professional areas.
|
ITEM
|
UNIT
|
SCJT500-12T
|
|
Size of working table (L*W)
|
mm
|
500*300
|
|
T-slot (number of slots*slot width*slot)
|
mm
|
3*12*100
|
|
Maximum table load
|
kg
|
200
|
|
Maximum travel(X*Y*Z)
|
mm
|
500*300*300
|
|
Distance from spindle nose to table surface
|
mm
|
15~450
|
|
Rapid traverse speed (X*Y*Z)
|
mm/min
|
30*30*30
|
|
Feed speed(X*Y*Z)
|
mm/min
|
10000
|
|
Spindle taper hole specification
|
–
|
BT30
|
|
Maximum spindle speed
|
rpm
|
6000 / 4000
|
|
Spindle drive mode
|
–
|
Belt type
|
|
Tool magazine type
|
–
|
Disc clamping arm type
|
|
Tool shank type
|
–
|
BT30
|
|
Maximum number oftools
|
PCS
|
12T
|
|
Max. tool diameter
|
mm
|
φ80
|
|
Max. tool diameter (without propper)
|
mm
|
φ120
|
|
Max. tool length
|
mm
|
150
|
|
Max. tool weight
|
kg
|
3
|
|
Tool change time (T to T)
|
sec
|
1.8
|
|
Positioning accuracy
|
mm
|
±0.01/300
|
|
Repeat positioning accuracy
|
mm
|
±0.008/300
|
|
Spindle servo motor
|
kw
|
3.7/5.5
|
|
Control System
|
–
|
GUANG TAI/SYNTEC
|
|
Floorspace(L*W*H)
|
mm
|
1650*1650*2200
|
|
Machine Weight(Gross)
|
kg
|
1800
|
