Description

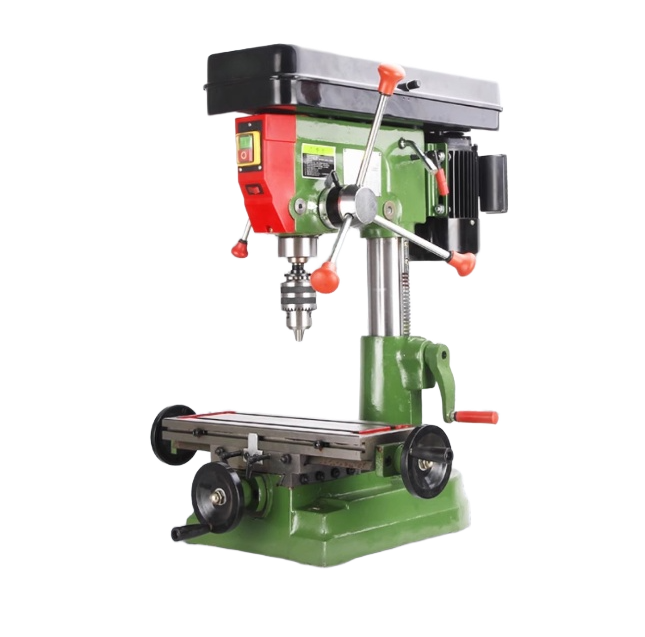

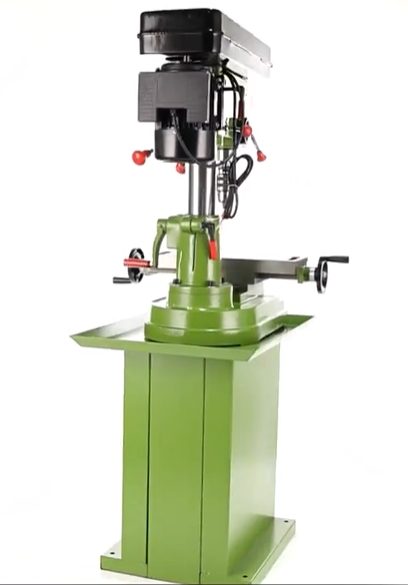

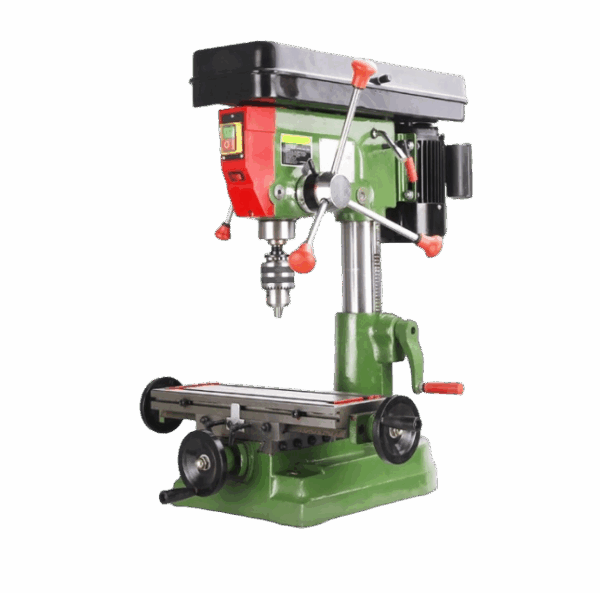

16mm Small Manual Drilling And Milling Machine SCJBMD Series

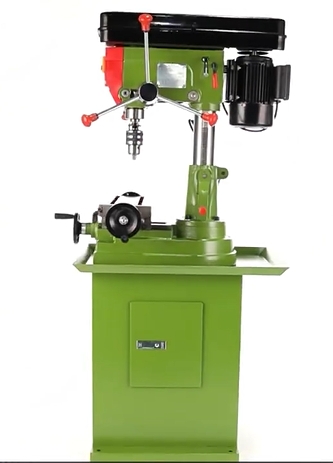

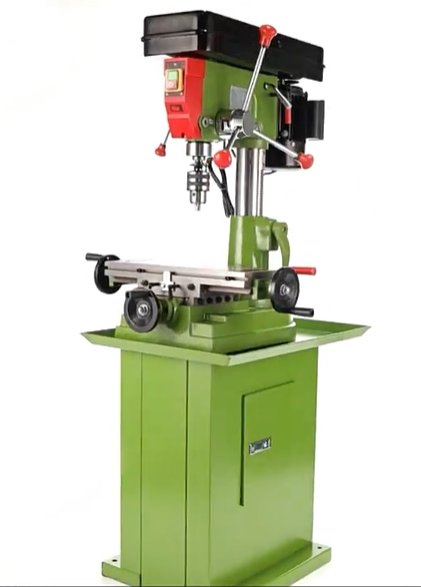

This type can be equiped frame
| Model | SCJBMD16h |
| Max.Drilling Dia | 16mm |
| Max vertical milling diameter | 10mm |
| Max end milling width | 40mm |
| Maximum spindle stroke | 80mm |
| Column diameter | 70mm |
| Distance from spindle center to column busbar | 182mm |
| Maximum distance from spindle end to worktable | 360mm |
| Spindle taper | MT2 |
| Spindle Speed | 320-3200r/min |

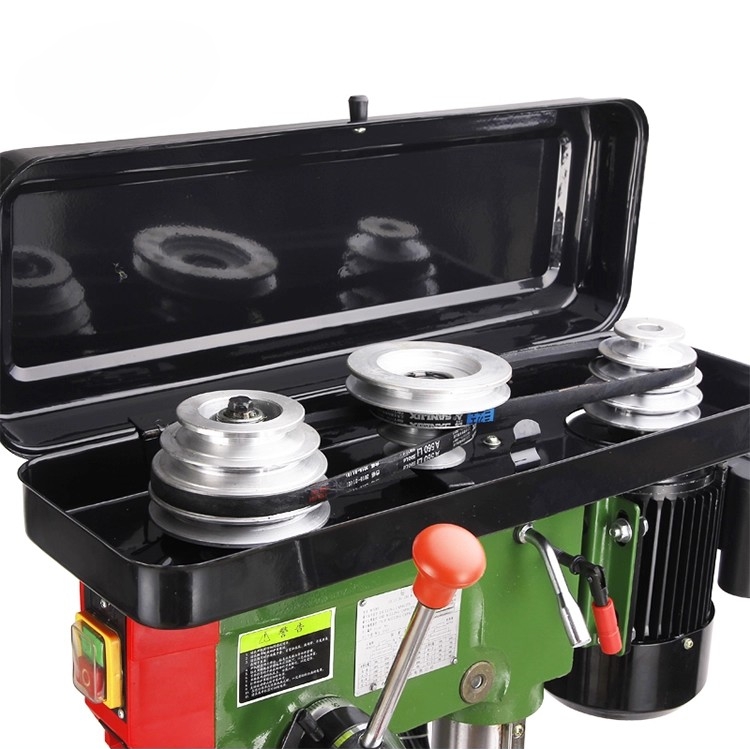

| Speed grade | 12 |

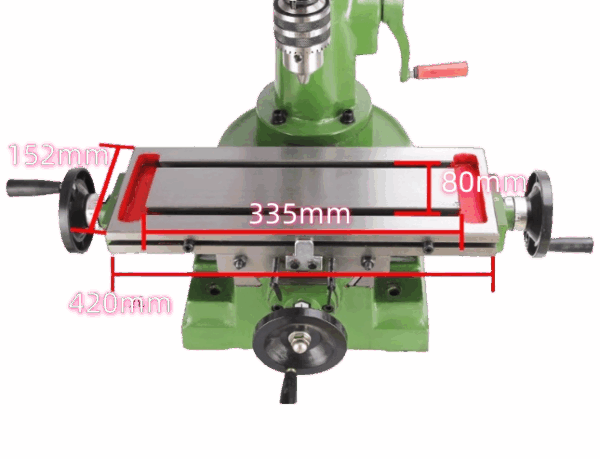

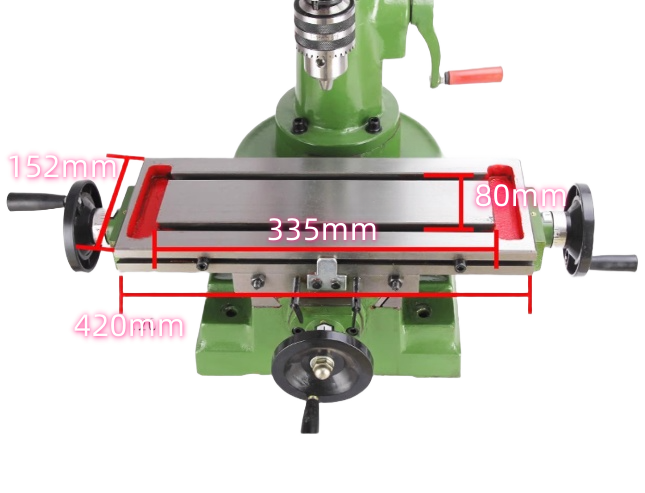

| Workbench size | 420*152mm |

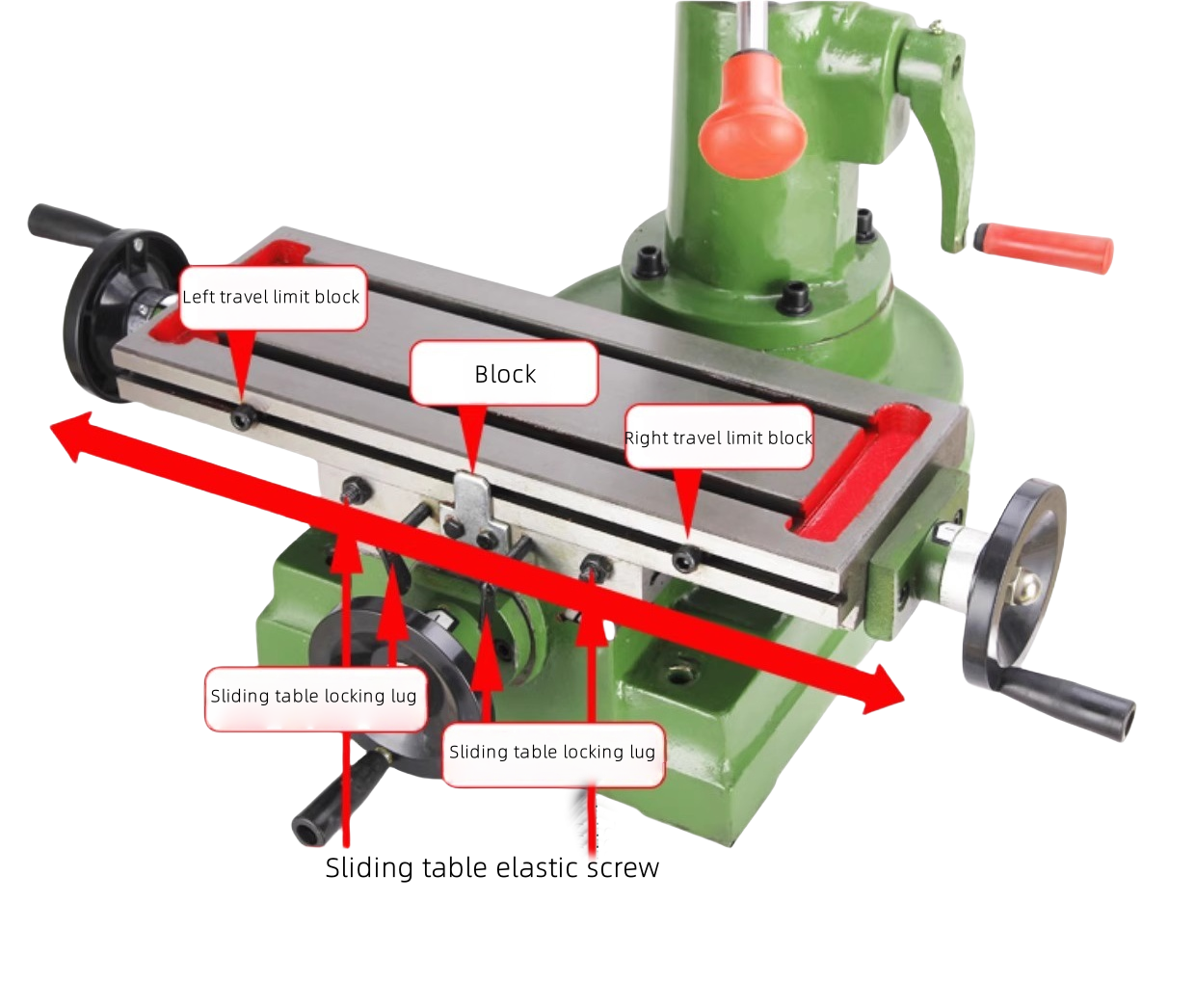

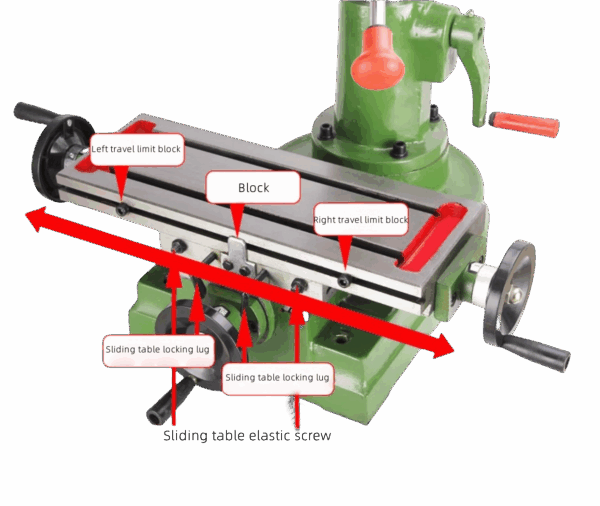

| Workbench stroke | 230*120mm |

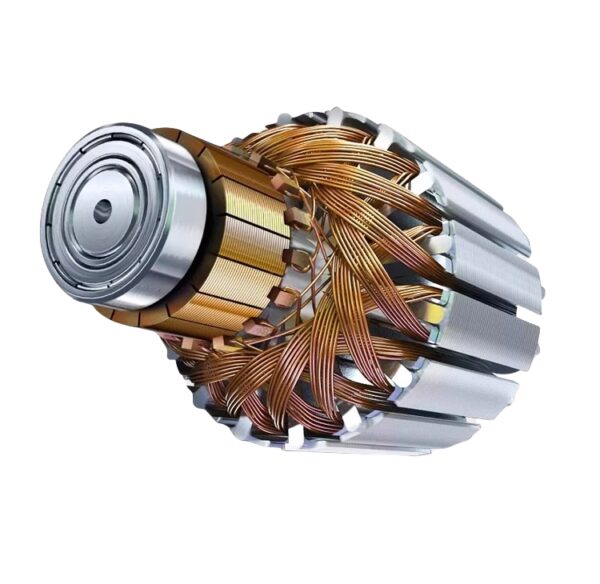

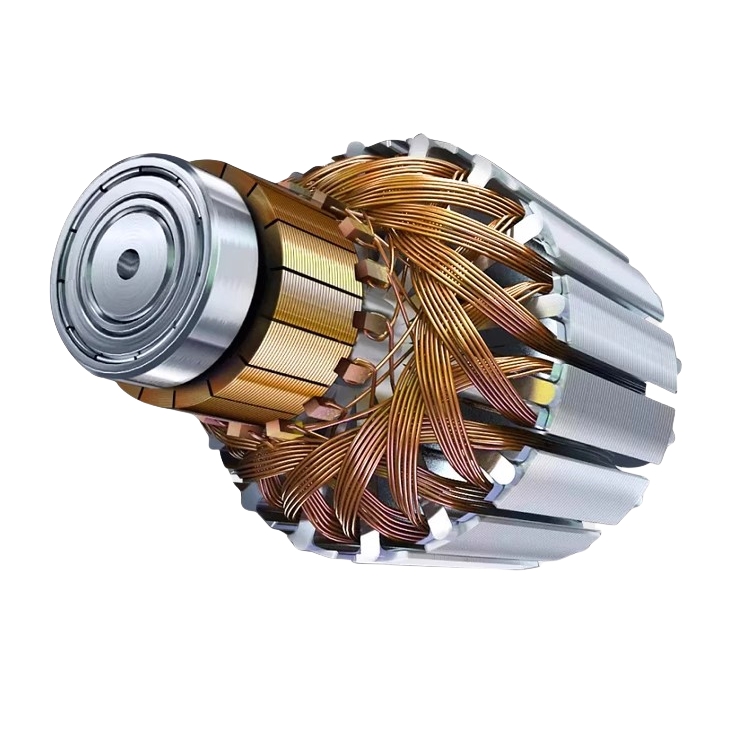

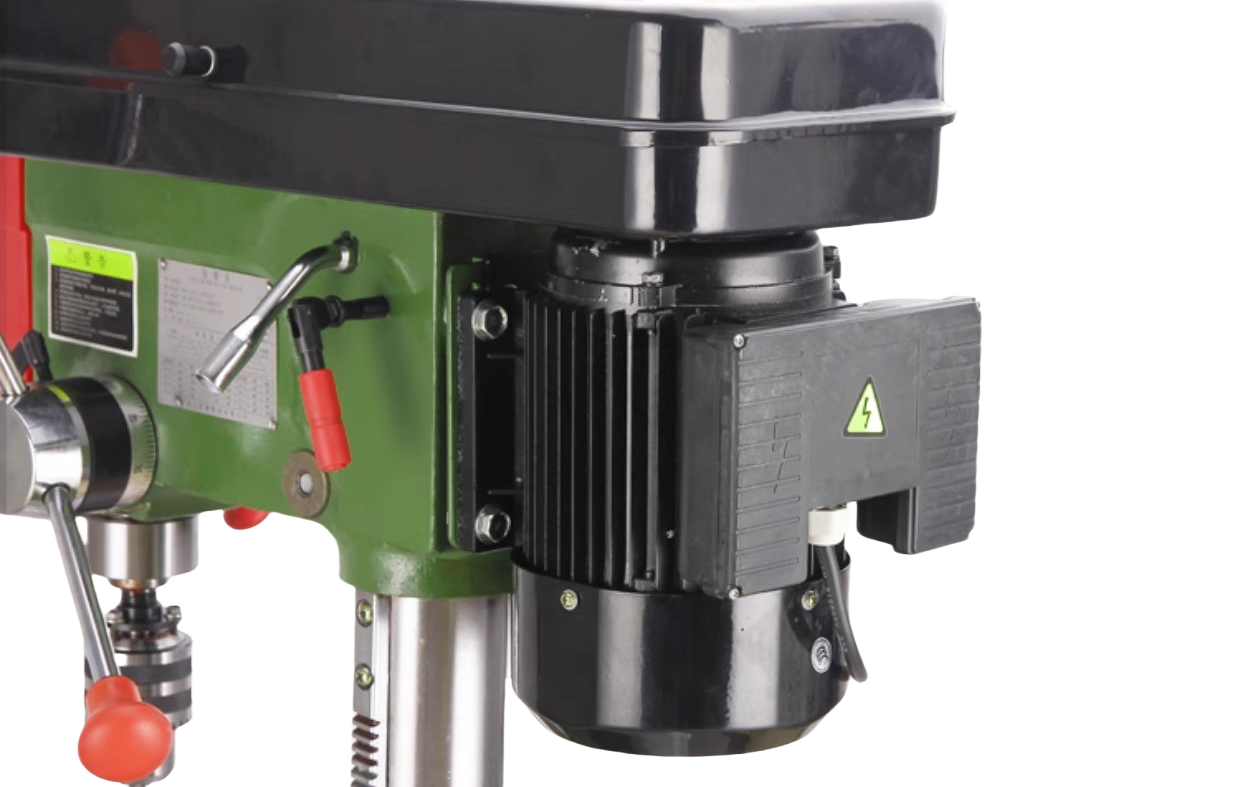

| The motor | 550w |
| Voltage | 380V/220V |
| Frequency | 50HZ |
| Weight | 80kg(G.W.)/75kg(N.W.) |
| Overall | 650*580*770mm |

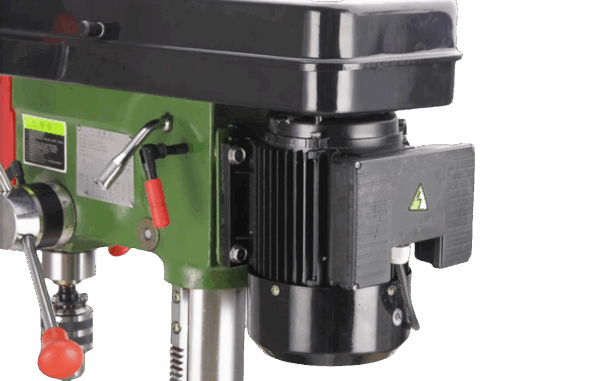

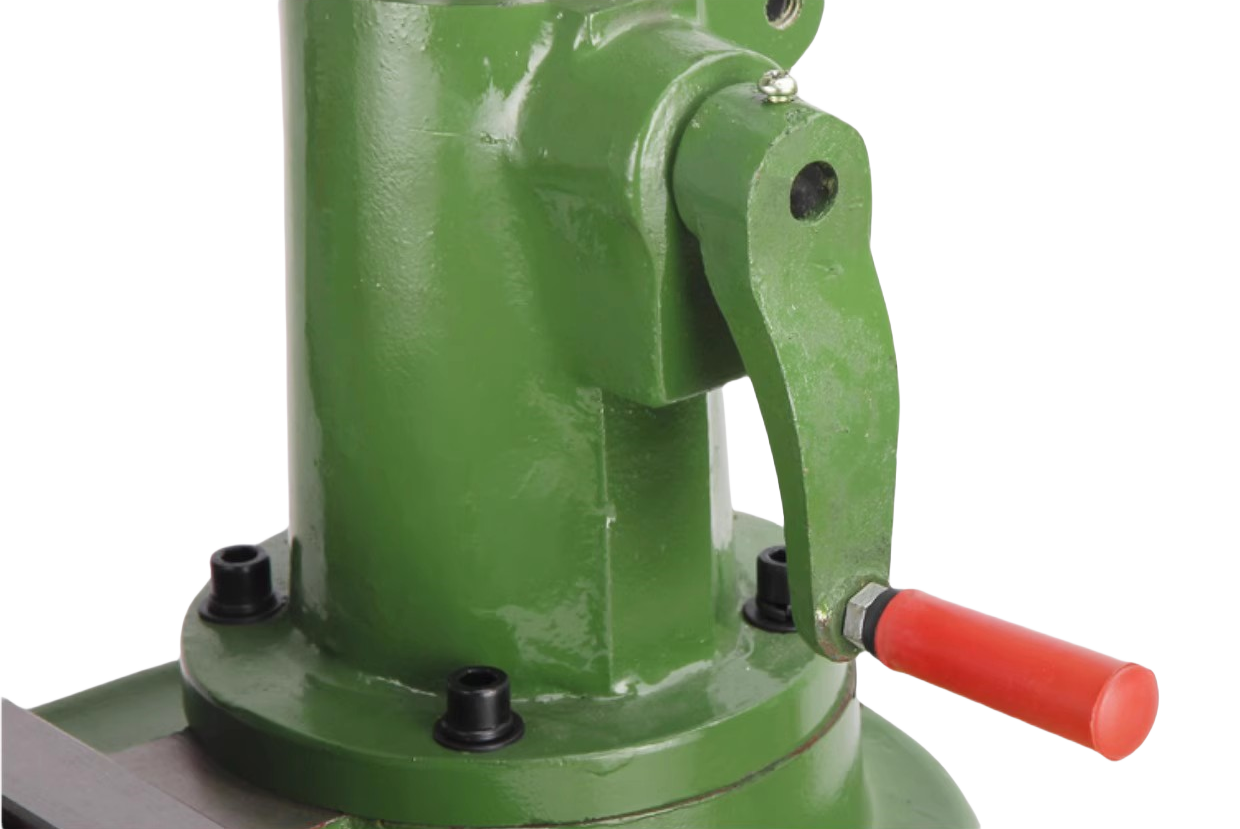

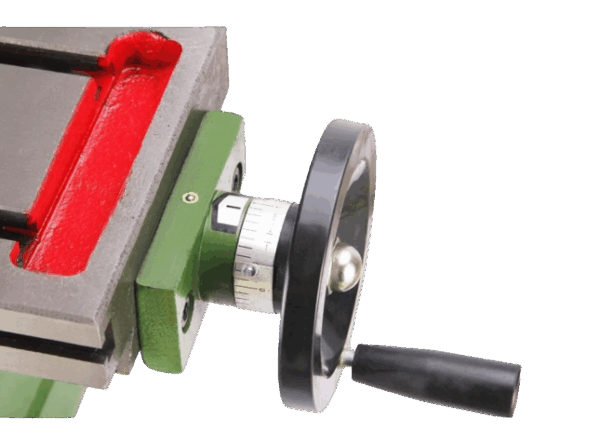

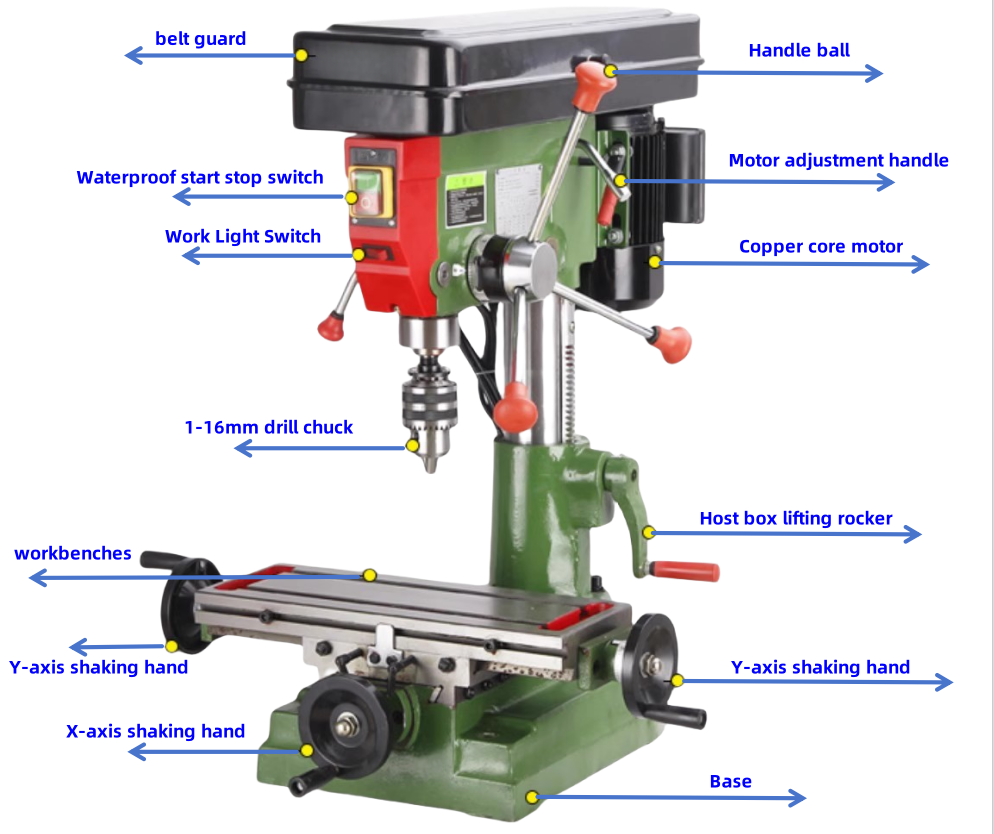

Machine Features:
Non Standard Goods:
Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.
Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.
2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
