Milling Machine

Description

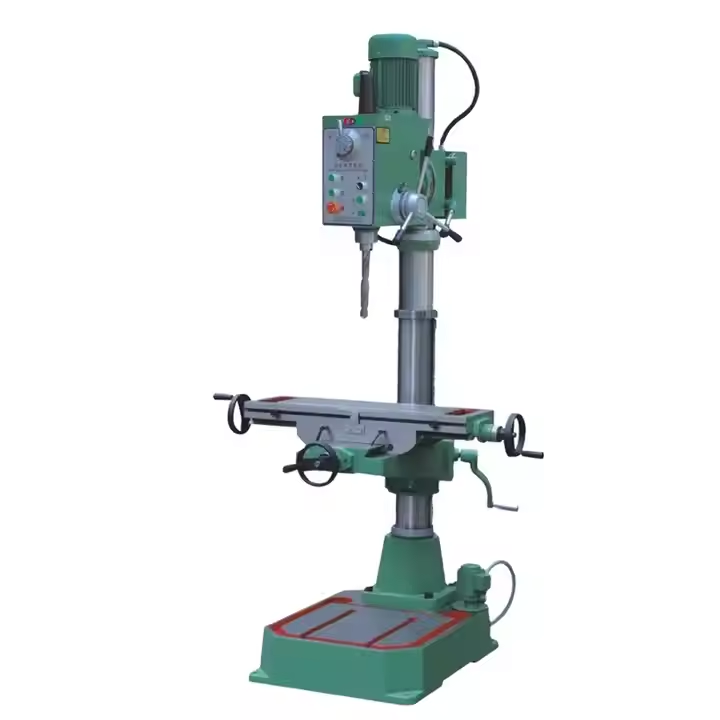

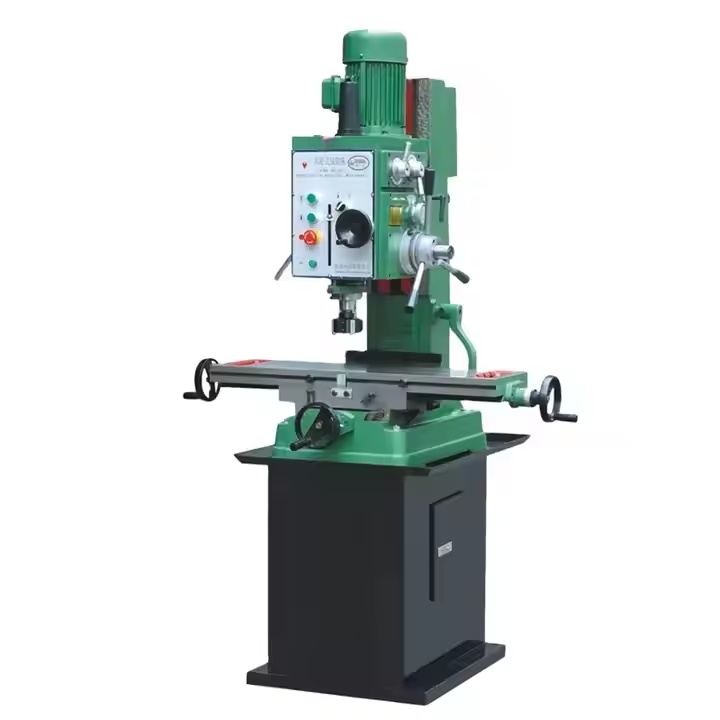

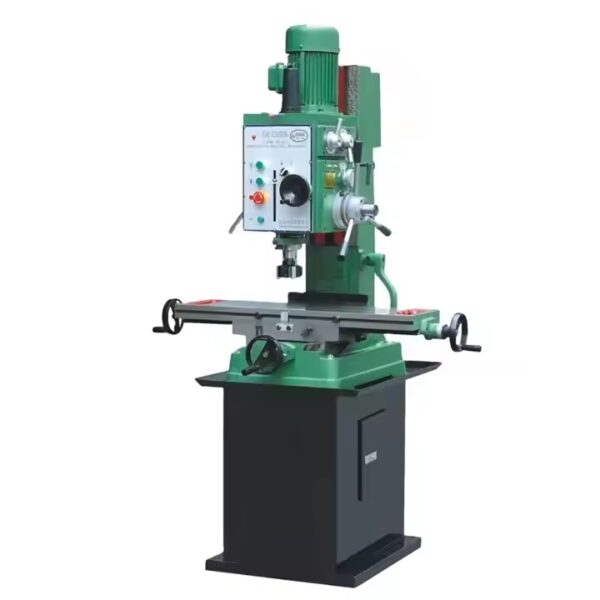

‌Vertical CNC Milling And Drilling Machine SCJMDM Series

Model	SCJMDM7045(A)
Max.Drilling Dia	32mm for steel ; 45mm for cast iron
Max.Width of face milling(mm)	80
Dia of vertial milling(mm)	28
Maximum spindle stroke	110mm
Spindle taper	MT4
Spindle axis to column generating line(mm)	260
Main spindle nose to working table	475mm
Spindle speed	66-1380r/min ; 95-1940r/min
Table size	730*210mm or 820*240mm
Table travel	500*175mm or 550*200mm
The motor	1.1kw or 1.5kw
Voltage	380V
Frequency	50HZ
Height	1100mm
Weight	440kg(G.W.)/395kg(N.W.)
Volume	860*740*1160mm(carton) 970*770*1160mm(wooden)



Machine Features:

1.Beautiful appearance, generous, novel, reasonable structure, good rigidity and high strength.
2.The worktable can be lifted and lowered, can be rotated 360 degrees, and the operation is labor-saving.
3.Spindle box, work table, column, base are made of high quality cast iron,and specially treated,stable and durable.
4.Spindle, spline sleeve, gear shaft through heat treatment process, high strength.
5.The machine speed has a wide range of shifting speeds, which can be manually operated, and can be turned on or off at any time.

Non Standard Goods:

Non standard goods refer to goods or equipment that are not made according to the work standards and specifications published by the country, but are made according to one’s own needs and plans. And if the appearance or function is not included in the national equipment product catalog, products produced, modified or customized based on user requests and standardized products are called non-standard products.

Enquiry Notice for Customerized Machine:
1. The customer provides the required parts for processing, assembly, and riveting, and clarifies a series of information about the parts, such as tolerances, burrs, deformation, etc.

2. We will conduct a series of analyses on the components provided by the customer and provide a quotation
